Bently Nevada 3500/25-01-01-00 Enhanced Keyphasor Module

Description

Product Introduction

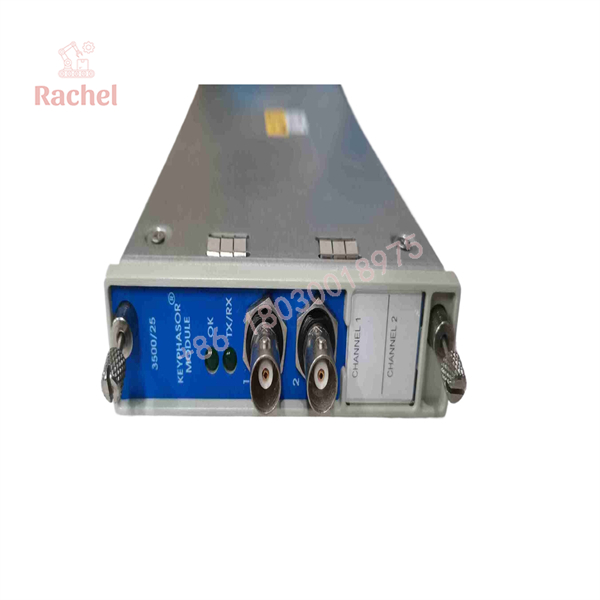

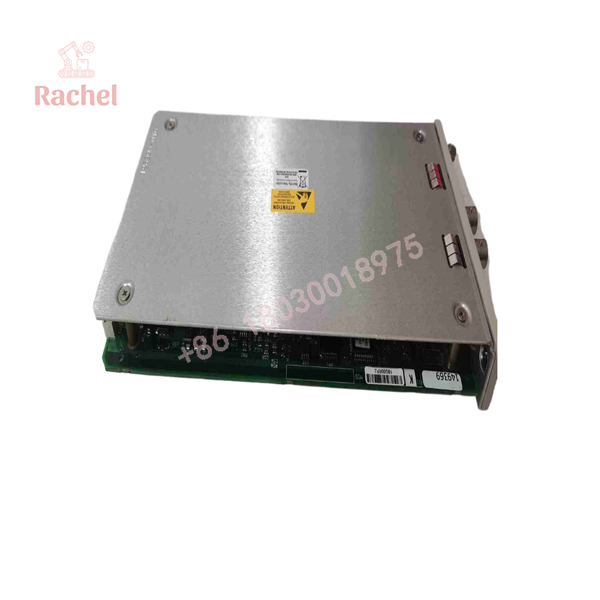

The Bently Nevada 3500/25-01-01-00 Enhanced Keyphasor Module is a specialized half-height processing card designed for the 3500 Machinery Protection System. Operating as the primary phase timing reference generator, this module processes voltage pulses from proximity sensors, magnetic pickups, or optical transducers pointing at a keyway or notch on a rotating shaft.

By generating precise 1X phase reference timing markers, the 3500/25 module enables dynamic vibration monitors (such as the 3500/42M) and condition monitoring platforms (Bently Nevada System 1) to measure phase angle, filtered 1X/2X amplitude, shaft orbital trajectories, and rotational speed. Configured with a half-height front module, buffered internal I/O card, and standard non-hazardous approvals, this module supports up to two Keyphasor channels per card.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: You are running a baseline vibration survey during a multi-stage steam turbine restart following a rotor overhaul. The 3500 monitor shows overall vibration levels climbing on bearing 2, but without a clean phase signal, your diagnostic software cannot plot a Bode or Polar diagram to identify whether the issue is structural resonance or a mass unbalance. The legacy Keyphasor card on the rack suffered an internal buffer failure, dropping the pulse train mid-roll. Inserting a pre-tested Bently Nevada 3500/25 module restores the 1X Keyphasor timing pulse, allowing System 1 to plot exact vector phase angles and confirm the rotor is simply passing through its first critical speed.

• Power Generation Turbines – Rotor Unbalance & Phase Tracking – Provides 1X phase angle timing pulses needed to calculate balancing weight corrections.
• Centrifugal Gas Compressors – Startup / Coastdown Transient Data – Delivers speed and phase signals to System 1 for automatic Bode, Polar, and cascade plot collection.
• Large Motor & Gearbox Drives – Zero-Speed & Shaft Revolution Counting – Tracks rotational speed for machine interlocking and overspeed/underspeed monitoring.

3500/25-01-01-00

3500/25-01-01-00

Transparency SOP: Quality Assurance & Testing

We test every Keyphasor module on dedicated 3500 rack chassis prior to shipment:

1. Physical & Connector Inspection: Check faceplate retention screws, edge connector gold pins, and rear I/O board trace integrity.
2. Backplane & Power-On Diagnostics: Seat the module into a 3500 test rack, apply power, and verify OK LED status during self-test routines.
3. Pulse Generator Signal Injection: Inject simulated square, pulse, and sine wave signals across +12 V to -24 V ranges to verify trigger threshold accuracy and RPM readout precision.
4. Buffered Output & Backplane Distribution Check: Test front BNC buffered outputs using an oscilloscope to confirm zero signal distortion or attenuation.
5. Final QC & Anti-Static Packaging: Enclose card in ESD shielding bags and ship inside custom foam-lined cartons.

The Veteran’s Tech Trap Guide

• ⚠️ Half-Height Module Positioning: The 3500/25 is a half-height module that occupies one of two slots inside a full-height 3500 rack slot position. It is typically installed in dedicated slots (like Slot 2) directly next to the 3500/22M TDI module. Ensure both top and bottom module thumbscrews are properly torqued to establish a proper ground path.
• ❗ Trigger Threshold Setting: Getting a clean Keyphasor signal requires proper software setup of the trigger threshold voltage. If your proximity probe gap reads -10.0 VDC over smooth shaft metal and drops to -18.0 VDC over the keyway notch, set your trigger threshold to the midpoint (approx. -14.0 VDC). Setting the threshold too close to the baseline voltage causes false double-triggering or missed pulses at high RPM.
• ⚠️ Keyphasor Signal Sharing Across the Rack: A single 3500/25 module can distribute its Keyphasor pulse signals internally across the 3500 backplane to all other vibration monitor cards (such as 3500/42M cards) installed in the same rack. You do NOT need separate Keyphasor probes for every monitor card!
• ❗ Magnetic Pickup vs. Proximity Probe Jumpers: If switching input hardware from a powered 3300 XL proximity probe to a passive magnetic pickup, verify the internal jumper configuration on the rear I/O card to ensure proper input impedance and bias voltage settings.

Frequently Asked Questions (FAQ)

Q: What do the option codes “-01-01-00” mean for part number 3500/25-01-01-00?

A: -01 (Main Module) = Half-Height Enhanced Keyphasor Front Module; -01 (I/O Module) = Buffered Coax / Internal Termination I/O Module; -00 (Approvals) = No Agency Approvals (Standard / Unclassified Area).

Q: How many Keyphasor transducers can a single 3500/25 module accept?

A: A single 3500/25 card accepts inputs from up to two (2) separate Keyphasor transducers (Channel 1 and Channel 2).

Q: What is the difference between a standard Keyphasor card and an “Enhanced” Keyphasor card?

A: The Enhanced 3500/25 module offers improved peak-to-peak signal conditioning, expanded RPM range tracking (up to 120,000 RPM), and enhanced event-logging capabilities required for modern System 1 diagnostic software.

Q: Is the 3500/25 card hot-swappable?

A: Yes. You can insert or remove a 3500/25 card while the 3500 rack is powered without damaging the module or interrupting primary machinery protection on adjacent monitor cards.
