Bently Nevada 3500/25 125792-01 New Surplus Keyphasor Module

Description

Product Introduction

The Bently Nevada 3500/25 125792-01 is the original Keyphasor Module used in the 3500 Machinery Protection System. Its job is simple but critical: receive once-per-turn or multiple-event shaft reference signals from proximity probes or magnetic pickups and convert them into precise digital timing signals used throughout the protection rack. These timing references allow vibration monitors to calculate shaft speed, phase angle, and vector information.

In our field experience, the Keyphasor module is often overlooked because it doesn’t generate alarms by itself. That’s a mistake. Without a reliable Keyphasor signal, phase measurements become unreliable and balancing or diagnostic work becomes much more difficult. For new projects, Baker Hughes recommends the 149369-01 Enhanced Keyphasor Module, which completely replaces the legacy 125792-01 while maintaining form, fit, and function compatibility.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Everything looked normal.

The vibration amplitudes were stable.

Yet the phase readings drifted several degrees every few minutes.

The probes weren’t failing.

Neither were the monitors.

The actual culprit was an aging 125792-01 Keyphasor Module whose input conditioning circuitry had become unstable after years of continuous operation. Once the module was replaced, phase measurements immediately returned to normal.

Typical Applications

Power Generation – Steam Turbine Monitoring –
Provides the once-per-revolution timing reference required for phase analysis and shaft speed calculations.

Oil & Gas – Centrifugal Compressors –
Supplies accurate shaft reference signals for vibration vector analysis and balancing.

Petrochemical Plants – API 670 Machinery Protection –
Synchronizes vibration monitors for rotor dynamic measurements.

Hydroelectric Stations – Generator Monitoring –
Provides rotational reference signals used for speed and phase monitoring.

Steel & Paper Mills – High-Speed Rotating Equipment –
Improves machinery diagnostics by supplying stable Keyphasor timing signals.

Field Replacement Example

A combined-cycle power plant experienced inconsistent phase measurements during a turbine balancing project.

The proximity probe output measured correctly.

The vibration monitors passed diagnostics.

Replacing the 125792-01 restored stable Keyphasor pulses, allowing engineers to complete balancing without replacing any monitor modules.

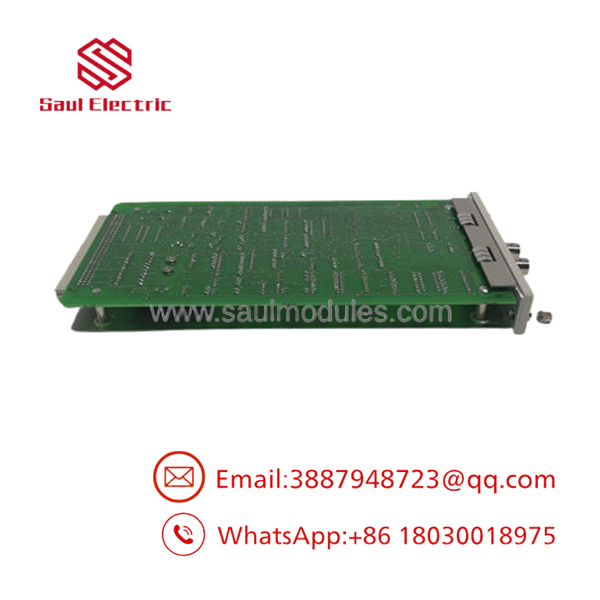

3500/25 125792-01

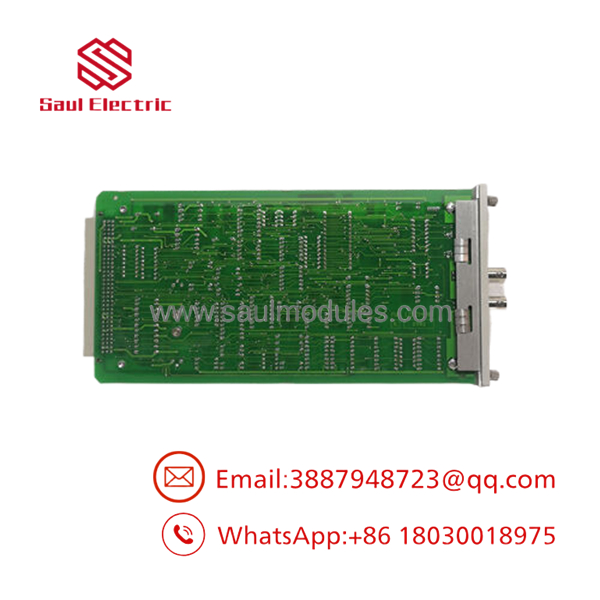

3500/25 125792-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels and serial numbers.
• Inspect PCB condition and connector integrity.
• Check for signs of overheating or unauthorized repair.

2. Live Rig Testing

• Install the module in a 3500 rack.
• Simulate proximity probe and magnetic pickup inputs.
• Verify dual-channel Keyphasor output generation.

3. Electrical Parameter Checks

• Verify input thresholds.
• Measure signal integrity.
• Confirm stable pulse generation over extended operation.

4. Hardware Verification

• Record hardware revision.
• Verify compatibility with legacy 3500 systems.
• Archive functional test reports.

5. Final QC & Anti-Static Packaging

• Perform complete operational testing.
• Package in ESD-safe materials.
• Protect edge connectors during shipment.
• Maintain full traceability records.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace this module just because phase values look wrong.
Check the proximity probe gap voltage and the condition of the Keyphasor target first. A damaged target or poor probe adjustment often mimics a module failure.

❗ Remember that 125792-01 is obsolete.
Baker Hughes officially replaced this module with the 149369-01 Enhanced Keyphasor Module, which is backward compatible with legacy 3500 systems. Verify the rack configuration before mixing old and new hardware.

⚠️ One bad Keyphasor affects multiple monitors.
Speed monitors, vibration monitors, and phase calculations may all depend on the same Keyphasor reference. A single intermittent signal can create multiple apparent faults.

❗ Take a picture of every wiring termination before disconnecting it. Trust me.
Keyphasor wiring mistakes don’t always prevent startup, but they can create inaccurate phase angles that waste hours during commissioning.

Frequently Asked Questions (FAQ)

Q1: What does the 3500/25 Keyphasor Module do?

A: It converts signals from proximity probes or magnetic pickups into precise digital timing references used for shaft speed, phase, and vibration vector calculations throughout the 3500 system.

Q2: Is the 125792-01 still manufactured?

A: No. Baker Hughes has discontinued the 125792-01 and officially replaced it with the 149369-01 Enhanced Keyphasor Module, which offers expanded processing capabilities while maintaining backward compatibility.

Q3: Can the 149369-01 replace the 125792-01 directly?

A: Yes. The 149369-01 is a direct replacement with the same form, fit, and function for existing 3500 installations. It also adds enhanced Keyphasor signal processing capabilities.

Q4: How many Keyphasor modules can a 3500 rack support?

A: A standard 3500 rack supports up to four Keyphasor signals. In paired configurations used for Triple Modular Redundant (TMR) applications, the system can support up to eight Keyphasor signals.

Q5: Is the module hot-swappable?

A: No. Although the rack may remain powered during some maintenance activities, replacing a Keyphasor module should be performed during a planned outage to avoid losing shaft reference signals and affecting machinery diagnostics.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most available units originate from modernization projects, decommissioned facilities, or unused maintenance inventory. Lower pricing reflects sourcing, not necessarily quality. Ask for documented rack testing, channel verification, and serial-number traceability before purchasing.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 3500/25 125792-01 modules. Before purchasing, request documentation showing dual-channel functional testing, hardware revision verification, and compatibility testing with a 3500 rack.
