Description
Product Introduction & Engineering Value
A vibration alarm is only useful if the plant control system receives a dependable action signal. The Bently Nevada 3500/32 125712-01 Relay Module provides the hardware interface between machinery protection decisions and external shutdown, annunciation, or control circuits.
Installed in a 3500 rack, this module adds four programmable relay outputs. Each relay channel can be configured independently using 3500 Rack Configuration Software, allowing engineers to build alarm logic based on Alert, Danger, Not OK, or combined voting conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/32 |
| Part Number | 125712-01 |
| Module Type | 4-Channel Relay Module |
| System Platform | 3500 Machinery Protection System |
| Relay Outputs | 4 independent relay channels |
| Module Size | Full-height module |
| Installation Position | Any available slot to the right of the Rack Interface Module |
| Relay Logic | Programmable AND / OR voting logic |
| Input Sources | Alert, Danger, Not OK, monitor channel status |
| Configuration Tool | 3500 Rack Configuration Software |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | Up to 95%, non-condensing |
| Dimensions | Approx. 241 mm × 24.4 mm × 242 mm |
| Weight | Approx. 0.7 kg |
Field Application & The “Trench” Experience
A refinery compressor train experienced repeated vibration alarms during startup. The 3500 monitoring modules correctly detected the condition, but the external shutdown system was not receiving the expected relay signal.
Maintenance technicians traced the issue to a failing 3500/32 125712-01 Relay Module. The monitor channels were healthy; the problem was the final output path between the protection rack and the plant trip circuit. After replacement and logic verification, the compressor protection sequence operated correctly during the next startup test.
Typical application scenarios:
- Steam turbine overspeed and vibration trip circuits
- Centrifugal compressor shutdown logic
- Generator bearing protection alarm interfaces

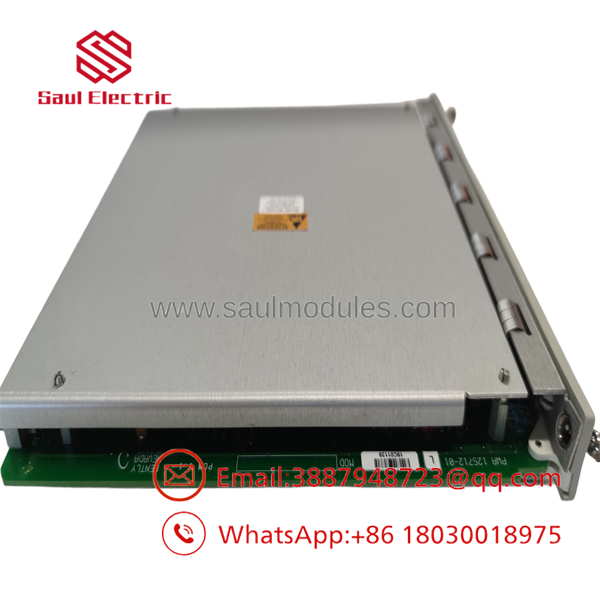

3500/32 125712-01

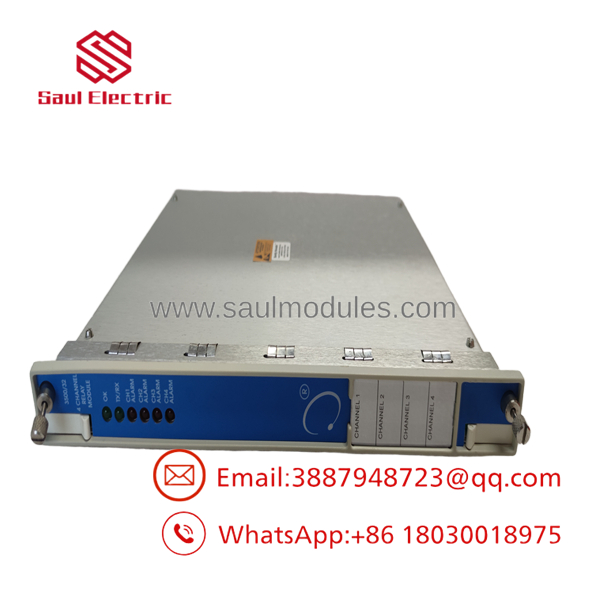

3500/32 125712-01
Transparency SOP: QA & Testing
Each New Surplus or Refurbished 125712-01 module is checked through a controlled process:
- Verify model number, label information, and hardware condition.
- Inspect relay contacts, connectors, front panel indicators, and module housing.
- Install into a compatible Bently Nevada 3500 rack.
- Verify module recognition and communication status.
- Test relay activation using simulated alarm inputs.
- Confirm programmable logic response and output switching.
- Complete final inspection and ESD-safe packaging.
The Veteran’s Tech Trap Guide
⚠️ Do Not Ignore Relay Logic Configuration
Replacing the hardware does not automatically restore the original trip philosophy. The relay module may require the previous configuration file to recreate voting logic and alarm behavior.
⚠️ Check Normally Energized vs. Normally De-Energized Settings
A relay wired incorrectly can create the opposite result during a failure condition. Always document existing relay states before removal.
PRO TIP:
Before swapping the module, record terminal wiring and relay assignments. A two-minute photo review can prevent hours of shutdown troubleshooting.
Dynamic FAQ
Q1. What does the Bently Nevada 3500/32 125712-01 module do?
It provides four programmable relay outputs for the 3500 Machinery Protection System, allowing vibration alarms and machine status conditions to trigger external control actions.
Q2. Is the 125712-01 a vibration monitoring module?
No. The vibration measurement is performed by the installed 3500 monitor modules. The 3500/32 provides relay output functions based on those monitoring signals.
Q3. How many relay channels are available?
The module provides four independent relay channels, each configurable for specific alarm and voting requirements.
Q4. Can this module replace another 3500/32 relay module?
Replacement depends on the exact part number, hardware revision, and existing rack configuration. Verify the complete ordering code before installation.
Q5. Are refurbished 125712-01 modules tested?
Yes. Proper refurbishment includes inspection, rack installation testing, relay output verification, and functional checks before shipment.
Q6. Is New Surplus inventory genuine OEM stock?
New Surplus units are unused industrial inventory. Product condition, inspection records, and warranty terms should be confirmed before purchase.
