Product Introduction & Engineering Value
I’ve seen plenty of machinery protection upgrades where the monitoring hardware was still healthy, but aging relay contacts became the weak point. The Bently Nevada 3500/33-01 remains a common replacement because it provides predictable relay operation and integrates directly into existing 3500 protection architectures.
Installed to the right of the Transient Data Interface (TDI), the module delivers sixteen independently programmable relay outputs. Each relay can be configured through 3500 Rack Configuration Software using alarm conditions, Not-OK status, or logical combinations of monitored variables.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/33-01 |
| Product Type | 16-Channel Relay Module |
| Series | 3500 Machinery Protection System |
| Relay Type | 16 SPDT relay outputs |
| Relay Programming | Independent Alarm Drive Logic per relay |
| Configuration Software | 3500 Rack Configuration Software |
| Rack Position | Any slot to the right of the TDI module |
| Typical Function | Alarm annunciation, shutdown logic, PLC interface |
| System Compatibility | Bently Nevada 3500 Monitoring System |
| Output Logic | AND/OR logic using Alert, Danger, Not-OK, and measured variables |
| Installation | Full-height rack module |
Field Application & The “Trench” Experience
During a scheduled overhaul at a combined-cycle power station, operators discovered intermittent shutdown commands on a gas turbine lubrication system. Diagnostic testing confirmed the vibration monitors were functioning normally, but one relay channel occasionally failed to transfer its trip signal under load. Replacing the aging 3500/33-01 restored consistent relay switching, allowing the protection system to pass the plant’s functional trip test before returning the unit to service.
Typical deployment scenarios include:
- Steam turbine overspeed shutdown interface
- Boiler feedwater pump vibration trip circuits
- Catalytic cracking unit compressor protection integrated with plant DCS

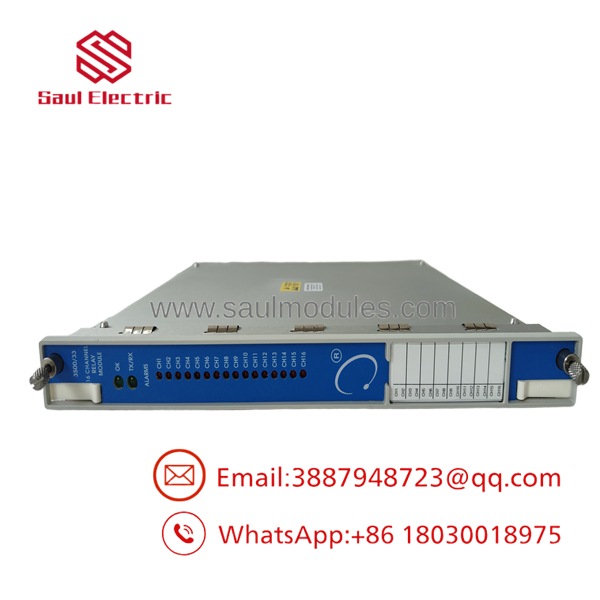

3500/33-01

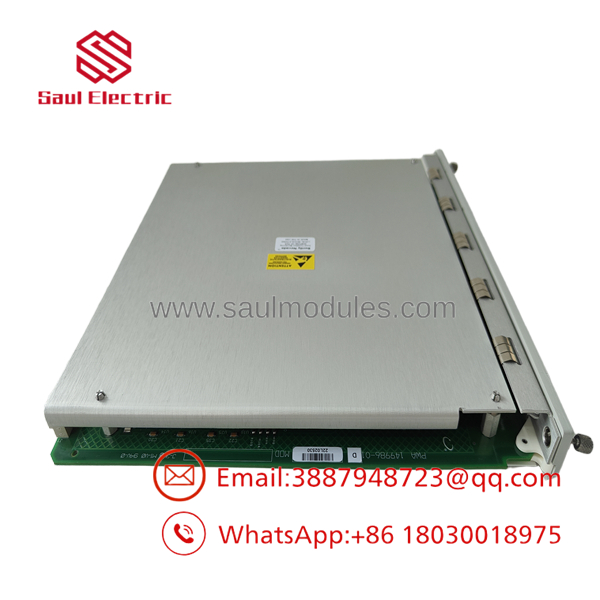

3500/33-01
Transparency SOP: QA & Testing
Every module is evaluated before shipment using documented inspection procedures.
- Product identification and hardware revision verification.
- Visual inspection for damaged connectors, contamination, corrosion, and PCB defects.
- Functional rack test confirming relay operation and front-panel status indicators.
- Contact integrity verification across all relay channels.
- Anti-static packaging with serial number traceability before shipment.
Refurbished inventory undergoes additional component-level inspection whenever repair work has been performed.
The Veteran’s Tech Trap Guide
⚠️ Don’t restore hardware without restoring configuration. Relay behavior depends on the Alarm Drive Logic stored in the 3500 configuration database. A replacement module alone will not reproduce the original shutdown sequence.
⚠️ Verify relay contact ratings. Some legacy installations were modified over the years. Always confirm field wiring matches the intended relay contacts before energizing external equipment.
PRO TIP: Perform an end-to-end functional test from sensor alarm to final shutdown device. A relay LED changing state does not guarantee the external trip circuit is complete.
Dynamic FAQ
Q1. What does the “-01” option indicate?
The -01 ordering option identifies the 16-channel relay output module within the 3500/33 product family. Depending on the complete ordering code, additional suffixes may specify approval or regional certification options.
Q2. Can each relay be programmed independently?
Yes. Every relay channel supports independent Alarm Drive Logic using AND/OR combinations of alarm conditions, Not-OK status, and monitored variables from the 3500 system.
Q3. Does the module support shutdown system integration?
Yes. It is commonly used to interface machinery protection events with emergency shutdown systems, PLCs, DCS controllers, annunciators, and plant alarm circuits.
Q4. Is New Surplus inventory genuine OEM equipment?
New Surplus units are unused original manufacturer inventory that has remained in authorized distribution or warehouse storage. Identification, physical condition, and functional checks are completed before shipment.
Q5. Can the module replace an existing 3500/33 without rewiring?
In many installations, yes. However, engineers should verify the complete part number, hardware revision, relay configuration, and field wiring before installation to ensure compatibility.
Q6. What warranty is provided?
Warranty coverage depends on whether the module is supplied as New Surplus or Refurbished. Each unit is functionally verified before shipment, and warranty terms are provided with the quotation.
