Bently Nevada 3500/33 149986-01 Relay Module Industrial I/O

Description

Product Introduction & Engineering Value

Unexpected shutdowns often begin with one missed alarm signal. The Bently Nevada 3500/33 149986-01 provides dependable relay outputs that convert machinery protection events into actionable control signals for plant shutdown systems, annunciators, and external PLCs.

Designed for integration within the 3500 Series rack, this module supports configurable relay logic while maintaining compatibility with existing machinery protection installations. It is commonly selected for turbine, compressor, and critical rotating equipment applications where deterministic alarm response is required.

Technical Specifications

Field Application & The “Trench” Experience

A refinery maintenance team scheduled a planned outage for a steam turbine protection upgrade. During commissioning, every vibration monitor reported correctly, but the emergency shutdown sequence failed to activate because the existing relay module had worn contacts after years of continuous service. Replacing it with a 3500/33 149986-01 restored reliable relay actuation without modifying the plant logic. The restart was completed during the scheduled maintenance window, avoiding an additional production delay.

Typical applications include:

• Catalytic Cracking Unit compressor protection systems
• Steam turbine emergency trip annunciation
• LNG refrigeration compressor shutdown interfaces

Transparency SOP: QA & Testing

Before shipment, every available module undergoes documented inspection procedures.

• ✔ Part number and hardware revision verified
• ✔ PCB visually inspected for corrosion, contamination, and physical damage
• ✔ Relay switching function tested using dedicated rack equipment
• ✔ Front-panel indicators checked during power-up
• ✔ Connector pins examined for deformation or oxidation
• ✔ Final anti-static packaging and serial number documentation completed

For refurbished inventory, defective electronic components are replaced only after engineering evaluation, followed by complete functional testing.

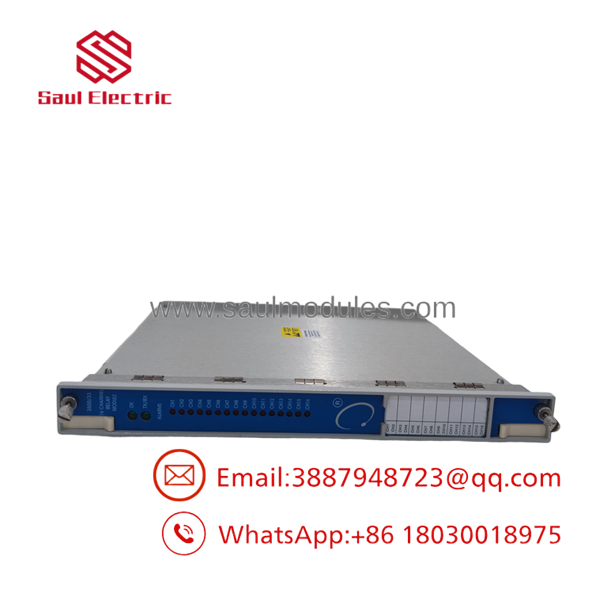

3500/33 149986-01

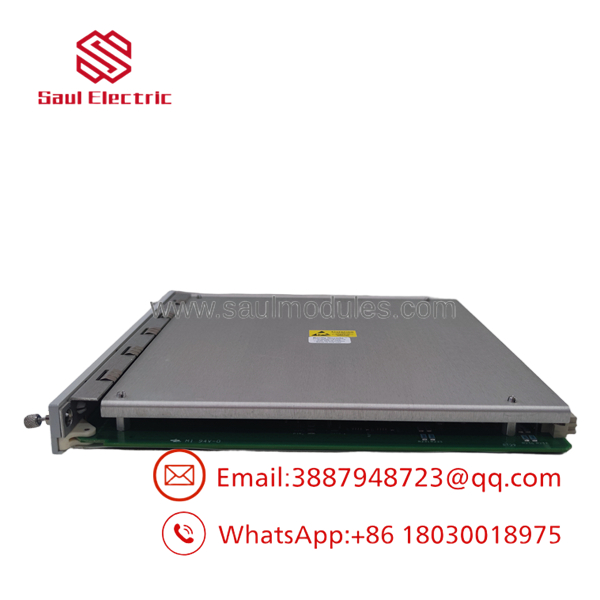

3500/33 149986-01

The Veteran’s Tech Trap Guide

⚠️ Don’t assume every relay is wired the same. Always verify the normally open and normally closed contact assignments before reconnecting field wiring.

⚠️ Configuration matters. Installing the hardware without restoring the original relay logic from the 3500 configuration software can produce incorrect alarm behavior.

PRO TIP: During major shutdowns, manually exercise every relay output after installation instead of relying only on software diagnostics. Mechanical relay movement should always be confirmed under load conditions.

Dynamic FAQ

Q1. Is the 3500/33 149986-01 compatible with all Bently Nevada 3500 racks?

Yes. It is designed for installation within compatible Bently Nevada 3500 Machinery Protection System racks, provided the rack configuration supports the relay output module.

Q2. How many relay outputs are available?

The module provides 16 configurable relay output channels for alarm indication, shutdown logic, and external control interfaces.

Q3. Can this module be used with existing 3500 monitoring modules?

Yes. It is intended to operate alongside compatible 3500 monitoring modules, allowing machinery protection events to activate external devices through configurable relay logic.

Q4. Is New Surplus inventory original?

New Surplus units are unused OEM inventory that has typically remained in manufacturer or distributor stock. Each unit is inspected to verify model identification, physical condition, and operational readiness before shipment.

Q5. What warranty is available?

Warranty terms depend on the inventory condition (New Surplus or Refurbished). Functional verification is completed before shipment, and warranty details are provided with the quotation.

Q6. What should be checked before replacing an existing relay module?

Verify the module revision, export or document the existing configuration, inspect field wiring, confirm rack slot assignment, and perform functional testing of every relay output before returning the machinery protection system to service.
