Description
Product Introduction
The Bently Nevada 3500/33-01-00 ordering option specifies a complete 16-channel relay system set consisting of the 149986-01 front main module paired with the 149992-03 rear I/O internal termination module. Designed for full-height rack slots, this high-density configuration drives field alarm and trip circuits directly from internal 3500 rack voting logic without needing external termination blocks.
The -03 suffix variant on the rear card (149992-03) provides internal Euro-style screw terminal connections specifically engineered and certified for Class I, Division 2 / Zone 2 hazardous location installations. It maintains full electrical isolation between adjacent channel contact pairs and internal rack logic, safeguarding high-consequence turbomachinery against false trips and field electrical transients.
Key Technical Specifications
| Parameter | Specification |
| Full Assembly Part Number | 3500/33-01-00 |
| Front Main Module Board | 149986-01 (16-Channel Relay Card) |
| Rear I/O Board Part Number | 149992-03 (Internal Termination, Hazardous Area) |
| Output Channels | 16 SPDT (Single-Pole Double-Throw) Relays |
| Field Connection Type | Euro-Style Screw Terminal Blocks (12 to 24 AWG) |
| Maximum Contact Rating | 5 A @ 250 VAC / 5 A @ 30 VDC (Resistive) |
| Hazardous Area Approvals | CSA/NRTL/A: Class I, Div 2, Groups A, B, C, D; ATEX Zone 2 |
| Relay Operating Modes | Software configurable: Normally Energized (NE) / Normally De-energized (NDE) |
| Isolation Strength | 1500 Vrms minimum contact-to-coil; 1000 Vrms contact-to-contact |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
You’re standing in front of a pressurised control room cabinet in an offshore gas processing plant. Environmental regulations demand strict Class I Div 2 compliance on all field wiring terminations. A short circuit on an aging rear terminal card dropped a relay driver coil on a high-pressure re-injection compressor. You can’t just slap in a standard industrial board—you need the exact certified 149992-03 hazardous-area rear card before the safety system lets you clear the master trip interlock.
- Offshore Oil & Gas Platforms – Direct field wiring of 16 emergency shutdown (ESD) loops in classified Class I, Div 2 hazardous environments.
- LNG Import/Export Terminals – Hardwired interlock connections from 3500 vibration monitors directly to cryogenic pump drive trip circuits.
- Petrochemical Refineries – Tripping motor control centers (MCC) and turbine stop valves across high-density rotating equipment lines.
- Power Plants – High-integrity 2-out-of-3 (2oo3) voting alarm matrix implementation for steam turbine overspeed and casing expansion protection.
Field Case Study: A Texas refinery experienced trace tracking across a standard rear I/O board due to ambient moisture ingress in a hazardous unit cabinet, resulting in a false vibration trip on an alkylation unit compressor. The downtime cost was ticking up at $60,000 an hour. We provided an urgent replacement 3500/33 assembly featuring the sealed, rated 149992-03 rear card. The shift technicians swapped the rear board, re- landed the 16 wiring pairs, and cleared the system diagnostic fault in time to avoid a full process loop bleed down.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Hazardous Rating & Physical Inspection: Audit board revision coating, potting seals, terminal block screws, and trace spacing for Div 2 safety compliance.
- Rack Insertion & Backplane Handshake: Seat both the 149986-01 front card and 149992-03 rear board in a powered 3500 chassis to verify communication with the Rack Interface Module (RIM).
- 16-Channel Forced Actuation Test: Command all 16 relays to cycle independently using Bently Nevada 3500 Rack Configuration software, checking coil pickup and drop-out times.
- Contact Resistance & Insulation Testing: Measure low-resistance continuity across all NO/NC/COM contacts under load; conduct high-potential insulation checks across adjacent terminals.
- Log Verification & ESD Protection: Record hardware revision levels in the QC database and seal the boards in conductive anti-static bags with shock-absorbing foam packaging.

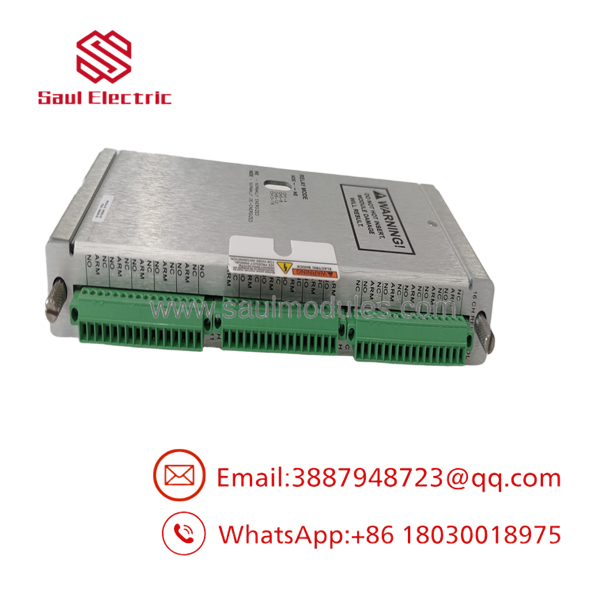

3500/33 149992-03

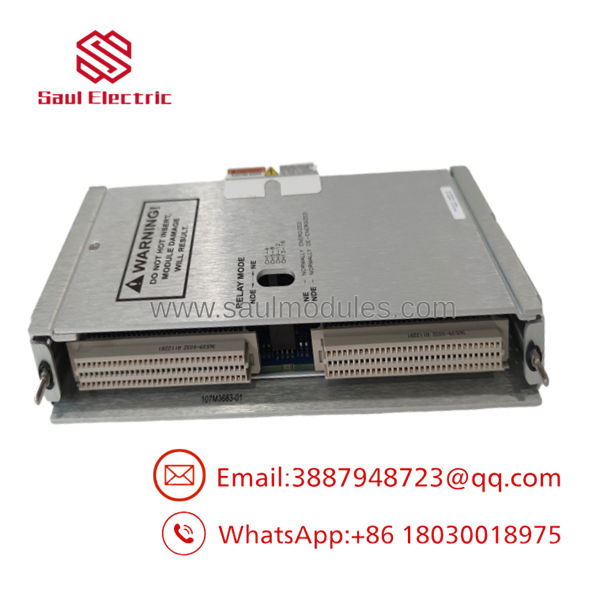

3500/33 149992-03
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Pay Attention to the Ordering Dash Numbers (-01-00 vs -01-01)! The 3500/33-01-00 number specifically defines a 16-channel relay card with Internal Termination Euro-style screw blocks. If your cabinet uses ribbon cables going to an external DIN-rail terminal assembly (ETB), you have a -02 or -03 full-assembly option using a 149992-02 or 149992-04 rear card. Ordering the wrong option means your field cable connectors won’t plug in.
❗ 2. Verify the -03 Rear Revision for Hazardous Classifications While a standard 149992-01 rear card looks physically identical to the 149992-03 board, only the -03 variant carries the official Class I Div 2 / Zone 2 certification markings on the silk screen. If an safety auditor inspects a hazardous-rated panel and finds a standard -01 card landed there, they will red-tag your cabinet.
⚠️ 3. Save Your Rack Configuration File BEFORE Pulling the Front Card The relay logic (AND/OR voting, latching vs non-latching, normally energized vs de-energized) resides in the 3500 software configuration stored in the rack. If you replace the 149986-01 front module without downloading the verified .350 configuration file back into the new card, the relays will remain in their default factory state!
❗ 4. Use Torque Screwdrivers on Euro Terminals The terminal blocks on the 149992-03 are high-density. Over-tightening field terminal screws with a standard electrician’s flathead can snap the internal PCB solder posts. Keep torque strictly to 0.4–0.5 Nm (3.5–4.4 in-lbs).
Frequently Asked Questions (FAQ for Conversion)
Q: What is the exact difference between the 149992-01 and 149992-03 rear I/O cards? A: Both are 16-channel internal termination (Euro screw terminal) rear modules for the 3500/33 relay system. However, the 149992-03 revision includes hazardous area certifications (Class I Div 2 / Zone 2) with specific component spacing and thermal ratings, whereas the 149992-01 is rated for standard unclassified environments.
Q: Can I use the 149992-03 rear card with an older 149986-01 front relay module? A: Yes. The 149992-03 rear I/O module is fully backwards-compatible with all versions of the 149986-01 16-channel relay main board.
Q: Are the terminal blocks on the 149992-03 removable (plug-in style)? A: Depending on the specific manufacturing revision of the 149992-03, some feature fixed Euro-style screw terminals, while others have removable connector headers. Check our live stock photos or ask our team to verify the exact sub-revision before shipping if pluggable headers are required for your maintenance routine.
Q: Do I need to shut down the 3500 rack power to replace the rear 149992-03 module? A: While backplane voltage won’t destroy the card during insertion, physically removing the rear card breaks all 16 field trip circuits simultaneously. You must bypass all affected machinery trip logic at the DCS or ESD system level prior to pulling the module.
Q: What is the warranty coverage on this surplus 3500/33-01-00 set? A: We provide a complete 12-month full replacement warranty on both the 149986-01 front card and the 149992-03 rear I/O board starting from the date of delivery.
Q: How quickly can this module set ship for an emergency shutdown situation? A: Units listed in stock are fully tested and ready to ship same-day via express air freight to minimize unscheduled plant downtime.
