Bently Nevada 3500/40M 125680-01 Proximitor Monitor

Description

Product Introduction

The Bently Nevada 3500/40M (ordering part 125680-01) is a 4-channel proximity monitor designed to continuously measure radial vibration, axial shaft position, eccentricity, and differential expansion on critical rotating machinery. As a core component of the 3500 machinery protection rack, it processes raw dynamic signals from eddy current Proximitor probe systems, comparing live metrics against programmed Alert and Danger setpoints.

Unlike standard vibration cards, the 40M variant provides advanced signal processing tailored specifically to fluid-film bearing machinery, such as large steam turbines and centrifugal compressors. By integrating directly into the 3500 backplane, it offers hardware-level alarm logic driving relay modules while streaming conditioned static and dynamic data via buffered front-panel BNC jacks for machinery diagnostic tools like System 1.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a high-pressure boiler feed pump experiences an axial thrust bearing wipe, shaft displacement happens in milliseconds. If your vibration monitor misses the shift due to slow signal processing or a blown probe power rail, the impeller meets the casing—costing millions in forced outages, unblended fuel penalties, and hardware repair.

The 3500/40M exists to catch those shifts instantly at the transducer level before catastrophic mechanical contact occurs.

• Power Generation – Main Steam Turbine-Generator: Continuous 24/7 monitoring of shaft position (thrust) and x-y radial vibration on journal bearings.
• Petrochemical Plants – Synthesis Gas Compressors: Monitoring high-speed shaft stability and oil film whirl/whip phenomena using orthogonal proximity probe pairs.
• Refining – Heavy Hydrocracker Pumps: Providing API 670 compliant automatic trip logic to prevent runaway seal failures.

Field Case Scenario: During a baseline run at a Midwest power station, a newly overhauled boiler feed pump started throwing intermittent “Not OK” status LEDs on channel 2 of an old 3500/40 monitor. To be honest, the team assumed the probe tip had oil contamination. Our engineer checked the live voltage on the 125680-01 card and found the onboard -24VDC transducer power rail was sagging to -17VDC under load due to an aging power regulator on the legacy board. We pulled a pre-tested 125680-01 module from surplus inventory, configured the dip options, and restored clean -24V supply to the field Proximitors—preventing an unnecessary trip during peak grid demand.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Visual & Hardware Inspection: We inspect board traces, check for degraded capacitors, verify backplane gold finger plating, and confirm OEM serial tags.
2. Backplane Handshake & POST: The module is inserted into a powered 3500 test rack to verify Power-On Self-Test (POST) routines, ensuring the 3500/22M System Rack Interface recognizes card ID and firmware without rack fault lights.
3. Signal Generator & Probe Rig Injection: Using calibrated function generators and genuine 3300 XL Proximitor sensor loops, we feed dynamic AC/DC signals across all 4 channels to test voltage scaling, gap voltage readouts, and frequency response.
4. Buffered BNC Signal Verification: Every front-panel BNC jack is scoped to guarantee clean, unattenuated buffered signal pass-through for diagnostic collectors.
5. ESD-Safe Packaging: Cleared boards are sealed inside anti-static shielding bags with custom foam packing.

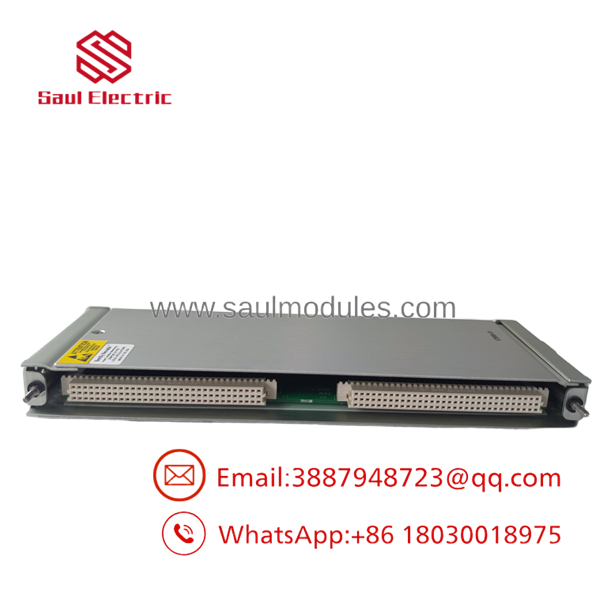

3500/40M 125680-01

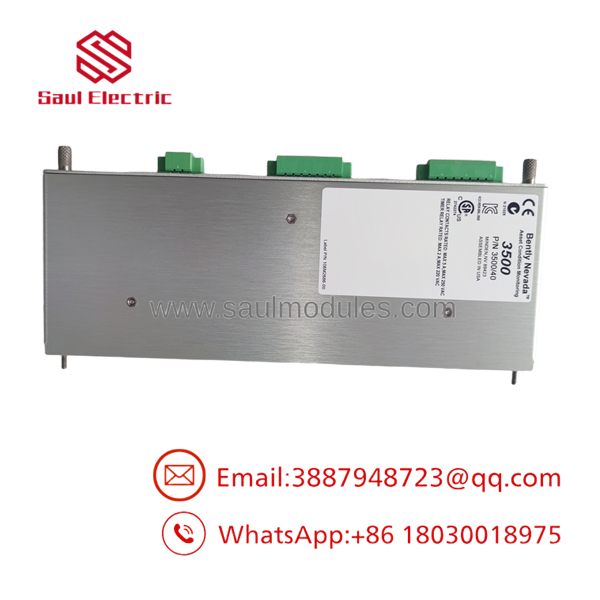

3500/40M 125680-01

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Mismatched Transducer Scale Factors: Always check your software scale factor configuration (e.g., 200 mV/mil vs 100 mV/mil) in 3500 Rack Configurator. If you plug a 200 mV/mil probe into a channel configured for 100 mV/mil, your vibration readings will read half of their actual value, blinding your trip logic to dangerous vibration levels.
• ❗ Verify Rear I/O Board Compatibility: The 125680-01 front main module must match its corresponding Rear I/O module type (Internal Barriers, Prox/Seismic I/O, or External Termination). Mixing up internal barrier I/O cards with standard rear terminal blocks will cause immediate channel “Not OK” faults.
• ⚠️ Watch Out for DC Gap Voltage Offsets: When installing or replacing a 40M module, use a multimeter to check the DC gap voltage at the front BNC outputs before putting the channel into service. A gap voltage outside the -7 to -11 VDC window means the probe tip distance is wrong, which will cause false thrust position alarms.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary difference between the 3500/40M and 3500/42M?

A: The 3500/40M is dedicated exclusively to proximity transducer inputs (radial vibration, thrust, position). The 3500/42M is a broader Proximitor/Seismic monitor that can also accept velocity sensors and accelerometers on the same card.

Q: Is the Bently Nevada 3500/40M 125680-01 hot-swappable?

A: Yes, the front 125680-01 module can be pulled or inserted while the 3500 rack is powered. However, pulling a card tied to active Danger trip logic will trigger a rack alarm—always bypass connected relay channels first.

Q: Do I need to re-calibrate the 125680-01 card when installing it?

A: No physical potentiometer calibration is needed on the board itself. Calibration and transducer selection are handled digitally through the Bently Nevada 3500 Rack Configuration Software.

Q: What warranty comes with this module?

A: All our 3500/40M modules—whether factory sealed new surplus or rig-tested refurbished—include our standard 12-month replacement warranty.

Q: Why source new surplus over buying directly from the factory?

A: Lead times from the OEM for legacy 3500 cards can extend well past 16 to 20 weeks. We stock verified surplus hardware globally, allowing us to ship pre-tested replacement cards to your facility within 24 to 48 hours.
