Description
Product Introduction & Engineering Value
I’ve replaced more than a few of these on turbine and compressor trains where bearing metal temperature is a primary protection parameter. The 3500/60 is the six-channel temperature monitor in the Bently Nevada 3500 rack. It conditions signals from RTDs or thermocouples, compares them to user-programmable Alert and Danger setpoints, and drives relays through the rack’s relay modules.
Unlike the 3500/61, this version does not provide 4–20 mA proportional outputs. It is the right choice when only discrete alarm and trip logic are required. Configuration is performed with the 3500 Rack Configuration Software, and multiple I/O module options support non-isolated RTD/TC or isolated thermocouple inputs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 6 |
| Input Types | RTD (Pt100 3-wire/4-wire, Ni, Cu) and Thermocouple (Types E, J, K, T) |
| Input Impedance | >10 MΩ per lead |
| Power Consumption | Nominal 7 W |
| Resolution | 1 °C or 1 °F |
| Accuracy (typical) | ±3 °C at 25 °C |
| Alarm Setpoints | User-programmable Alert and Danger with time delays |
| Recorder Outputs | None (use 3500/61 if 4–20 mA required) |
| Operating Temperature | –30 °C to +65 °C (with standard I/O) |
| Configuration Software | 3500 Rack Configuration Software |
| Mounting | Single slot in 3500 rack |
| I/O Options | Non-isolated RTD/TC or TC-isolated versions available |
Field Application & The “Trench” Experience
A Gulf Coast refinery had a critical centrifugal compressor whose thrust-bearing temperature channels were reading erratically. The original 3500/60 had developed an intermittent channel fault. The technician swapped in a tested replacement module, reloaded the existing configuration from the rack, verified RTD readings against a handheld calibrator, and restored full temperature protection without a process shutdown. The module’s ability to mix RTD and TC inputs on the same card simplified the existing field wiring.
Niche placements that fit this exact model:
- Radial or thrust bearing metal temperature monitoring on steam or gas turbines per API 670.
- Motor stator or winding temperature protection on large critical motors.
- Process temperature points (suction/discharge, lube oil, steam) that must drive discrete alarms and trips inside the 3500 rack.

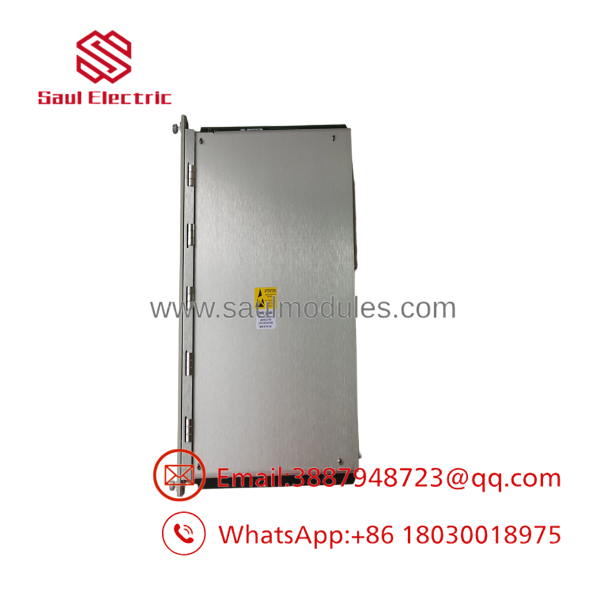

3500/60

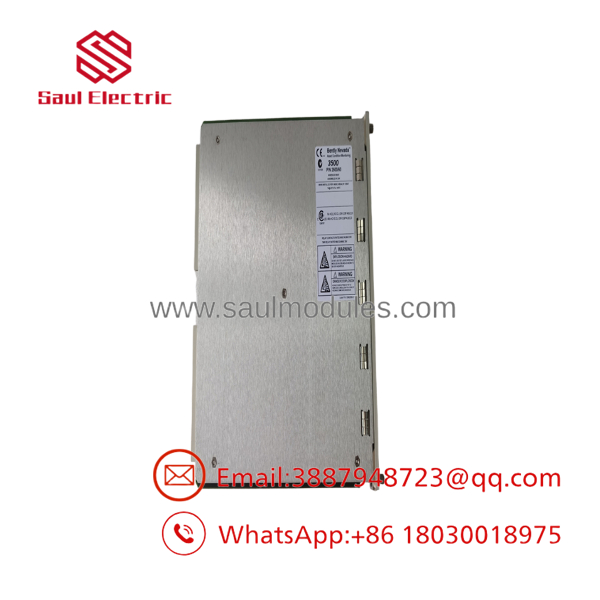

3500/60
Transparency SOP: QA & Testing
- Visual inspection of the module, connectors, and faceplate for physical damage or corrosion.
- Installation in a powered 3500 rack; verification of backplane communication and OK status.
- Injection of precision RTD and thermocouple simulators on all six channels.
- Confirmation of correct engineering-unit readings, alarm setpoint response, and time-delay behavior.
- Check of front-panel LEDs and any available buffered outputs.
- Final functional burn-in under simulated operating conditions followed by anti-static packaging.
The Veteran’s Tech Trap Guide
⚠️ I/O module mismatch – The monitor itself is only half the story. Confirm whether the existing installation uses non-isolated RTD/TC or isolated thermocouple I/O modules. Installing the wrong I/O module will produce incorrect readings or ground-loop issues.
⚠️ No recorder outputs – If the application requires 4–20 mA proportional signals for a DCS or historian, this is the wrong module. Use the 3500/61 instead.
PRO TIP: Always back up the full rack configuration before swapping any monitor. Channel-specific scaling, alarm setpoints, and voting logic reside in the rack configuration and must be restored exactly.
Dynamic FAQ
Q: What is the difference between the 3500/60 and 3500/61? A: Functionality is identical except the 3500/61 provides six channels of 4–20 mA recorder outputs. The 3500/60 has none.
Q: Can the 3500/60 accept a mix of RTD and thermocouple inputs? A: Yes, when the non-isolated RTD/TC I/O module is used. Channels can be individually configured.
Q: Does this module require external power? A: No. It draws power from the 3500 rack backplane (supplied by the 3500/15 power supplies).
Q: Is the 3500/60 still supported? A: Yes. It remains an active part of the 3500 Machinery Protection System product line, although specific I/O options and firmware revisions should be verified for new projects.
Q: What warranty and authenticity documentation come with New Surplus or Refurbished stock? A: Units ship with functional test records, clear origin marking (New Surplus or Refurbished), configuration verification, and a standard parts-and-workmanship warranty.
