Description
Product Introduction

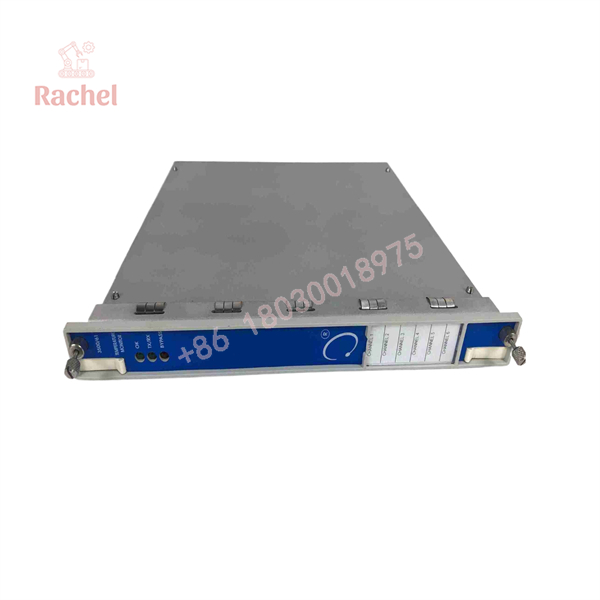

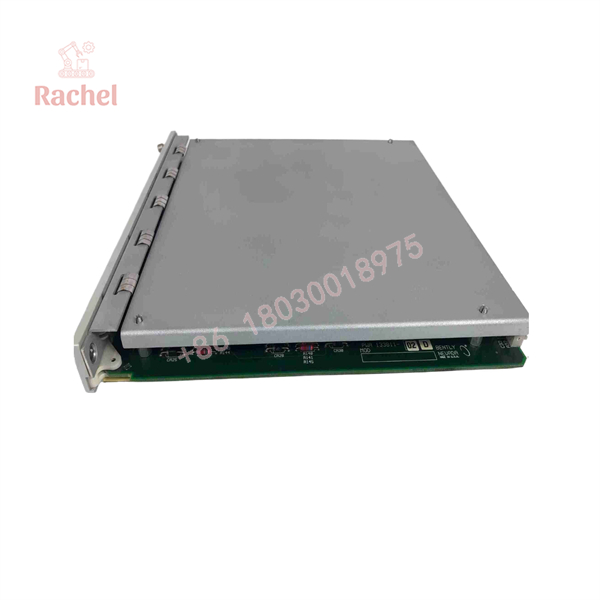

The Bently Nevada 3500/61 is a 6-channel full-height temperature processing and monitoring module designed for the 3500 Machinery Protection System. Temperature is one of the most reliable leading indicators of mechanical stress; rising bearing pad, stator winding, or lube oil temperatures often precede physical machine failure.
The 3500/61 conditions signals from up to six independent RTD or Thermocouple sensors, continuously comparing measured values against user-configured Alert and Danger (trip) thresholds. It sends alarming state data across the 3500 backplane to trigger relay outputs (such as 3500/32 or 3500/33 cards) and provides proportional 4–20 mA current outputs for plant DCS or PLC integration.
Key Technical Specifications
| Parameter | Options / Configuration Value |
| Slot Type / Form Factor | Full-Height Slot Module (installs in any available monitor slot, Slots 2–15) |
| Input Channels | 6 Independent Channels (RTD or Thermocouple, software configurable) |
| Supported RTD Types | 100Ω Platinum (\alpha = 0.00385 or 0.00392), 10Ω Copper, 120Ω Nickel |
| Supported Thermocouples | Type J, K, T, E, R, S, N (with Cold Junction Compensation on rear I/O) |
| Measurement Accuracy | \pm 1^\circC (\pm 1.8^\circF) typical for standard RTDs |
| Proportional Analog Outputs | 4 to 20 mA DC dedicated output per channel (via rear I/O module) |
| Power Consumption | 7.0 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Agency Approvals | CSA, ATEX, IECEx, CE, Class I Div 2 / Zone 2 compliant options |
Application Scenarios & The “Trench” Experience
Picture this: A massive 10 MW boiler feed pump motor runs continuously inside a power plant. The drive-end sleeve bearing experiences gradual lubrication breakdown, causing friction to heat up the babbitt lining. The 3500/61 module reads the embedded 100Ω Platinum RTD inside the bearing pad. As the temperature crosses 95^\circC, the 3500/61 triggers an Alert alarm to the DCS, warning operators to check lube oil flow. When the temperature continues climbing past 105^\circC, the 3500/61 commands a Danger trip signal across the rack backplane, opening the motor breaker before the bearing babbitt melts onto the shaft journal.
- Fluid-Film Bearing Babbitt Monitoring – Turbines, Compressors, & Motors – Monitors embedded bearing pad temperatures to detect oil film failure and wipe conditions.
- Motor & Generator Stator Winding Tracking – High-Voltage Electric Drives – Measures stator coil temperatures to protect motor insulation from thermal breakdown.
- Lube Oil Supply & Return Systems – Skids & Compressors – Tracks cooler inlet and outlet temperatures to maintain proper viscosity across oil manifolds.
3500/61
3500/61
Transparency SOP: Quality Assurance & Testing
We test every 3500/61 module on live 3500 rack test benches prior to shipment:
- Physical & Terminal Inspection: Inspect faceplate locking levers, edge connector pins, and rear I/O terminal block alignment.
- Backplane & Power-On Diagnostics: Seat card in a 3500 test chassis, power up, and verify OK LED status during card self-test routines.
- Multi-Channel Precision Calibration Test: Connect precision decade resistance boxes and thermocouple simulators across all 6 channels; verify temperature readouts within \pm 0.5^\circC on 3500 Rack Configuration Software.
- Cold Junction Compensation (CJC) Check: Verify TC CJC sensor accuracy on rear I/O module.
- Final QC & ESD Packaging: Enclose module in anti-static ESD shielding bags and ship inside custom foam-lined cartons.
The Veteran’s Tech Trap Guide
- ⚠️ 3-Wire RTD Lead Resistance Compensation: When wiring 3-wire RTDs to the rear I/O module, ensure all three copper conductors have identical wire lengths and resistance. Mismatched lead wire resistances will introduce temperature measurement offsets (approx. 2.5^\circC per ohm of unbalance).
- ❗ Cold Junction Compensation (CJC) on Thermocouples: If using Thermocouples, you MUST use the specific rear I/O module designed for Thermocouples that includes an onboard CJC thermistor. Using a standard RTD rear I/O card for Thermocouples will result in massive temperature errors caused by ambient terminal temperature swings.
- ⚠️ Non-Isolated RTD Field Ground Loops: Grounding RTD elements at both the machine frame and the monitor panel creates ground loops that introduce 60 Hz electrical noise into your temperature signals. Ensure field RTD shields are grounded at ONE end only.
- ❗ Differential Temperature Channel Setup: The 3500/61 allows configuring channels for Differential Temperature (e.g., measuring the temperature difference between lube oil inlet and outlet). Make sure channel pairs are properly assigned in software before enabling differential alarm logic.
Frequently Asked Questions (FAQ)
Q: Can a single 3500/61 module mix RTD and Thermocouple inputs on different channels?
A: Yes. Channels can be individually configured in Bently Nevada 3500 Rack Configuration Software for either RTD or Thermocouple types, provided the matching rear I/O module supports the selected inputs.
Q: What is the difference between 3500/60 and 3500/61 modules?
A: The 3500/61 is the upgraded, modern 6-channel temperature monitor module featuring enhanced signal processing, expanded sensor support, and improved noise immunity compared to the legacy 3500/60 module.
Q: Does the 3500/61 module provide 4–20 mA analog outputs for a DCS?
A: Yes. When paired with the appropriate rear I/O module, the 3500/61 provides six independent 4–20 mA outputs representing the measured temperature span for each channel.
Q: Is the 3500/61 module hot-swappable?
A: Yes. You can remove or install a 3500/61 card while the 3500 rack is powered without disrupting primary monitoring on adjacent cards (provided associated trip loops have been bypassed).
