Description
Product Introduction
The Bently Nevada 3500/62 is a 6-channel process variable monitor module engineered for the 3500 Series Machinery Protection System. It accepts standard industrial transmitters producing 4-20 mA current loops or 1-5 VDC signals to continuously integrate process parameters like pressure, flow, temperature, and hydraulic level into machine protection logic.
Unlike standard PLC analog inputs, the 3500/62 processes transmitter values directly within the 3500 rack architecture. It compares inputs against programmed alarm setpoints, driving hardware relays independent of external control networks to trigger immediate safety shutdowns during severe process upsets.
Key Technical Specifications
| Parameter | Value |
| Input Channels | 6 channels (individually configurable) |
| Supported Inputs | +4 to +20 mA, +1 to +5 VDC, or -10 to +10 VDC |
| Input Impedance | 200 Ω (current input) or 1 MΩ (voltage input) |
| Power Consumption | 7.0 Watts typical |
| Rack Slot Occupancy | Dual-slot module (occupies 2 adjacent slots in 3500 rack) |
| Signal Conditioning | Internal 24-bit ADC per channel |
| Accuracy | Within ±0.33% of full-scale range |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Update Rate | 100ms full-channel scan rate |
| Isolation | 500V RMS galvanic channel-to-rack isolation |
| I/O Modules Supported | Internal Termination, External Termination, TMR I/O |
Application Scenarios & The “Trench” Experience
It is 1:45 AM during a stormy shift. Your main boiler feed pump experiences a sudden drop in suction pressure, threatening cavitation that could destroy the pump assembly. The 3500/62 card monitoring the 4-20mA pressure transmitters in slot 9 fails unexpectedly, blinding the protection system. You cannot run the pump blind. You need an exact physical replacement to restore hardware protection before the shift manager cancels the entire run.
- Oil & Gas – Lube Oil Header Pressure Monitoring – Direct 4-20mA measurement from field transmitters ensures immediate trip logic fires before bearing oil starvation occurs.
- Power Generation – Steam Turbine Casing Expansion & Differential Pressure – Continuously processes 1-5 VDC signals from specialized transmitters to track critical thermal expansion rates.
- Chemical Processing – Hydraulic Actuator Pressure Limits – Monitors high-pressure valve controls to prevent over-pressurization during emergency shutdowns.
- Refining – Seal Gas Pressure Differential on Centrifugal Compressors – Monitors differential gas pressure across dry gas seals to prevent hazardous process gas leakage.
Field Case Study: An offshore platform suffered intermittent signal faults on a 3500/62 card tracking gas turbine lube oil pressures. Salt spray had degraded the backplane connector interface after years in service. Swapping in a pre-tested 3500/62 surplus module brought the channel processing back online in 15 minutes without shutting down the entire 3500 protection rack, keeping the platform’s primary power generation stable.

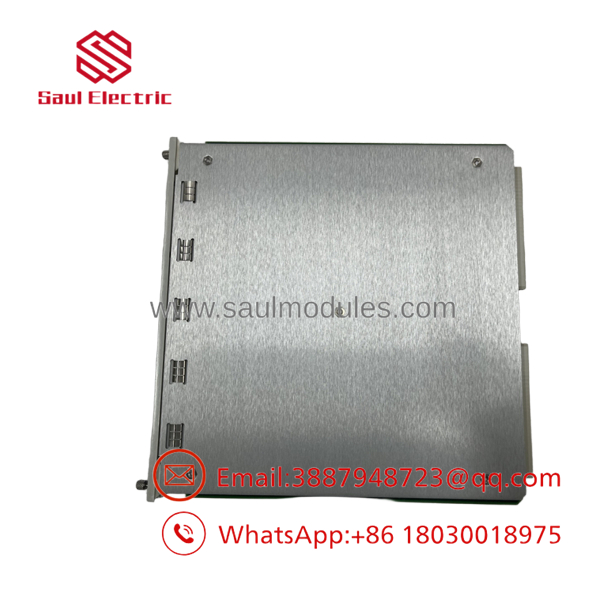

3500/62

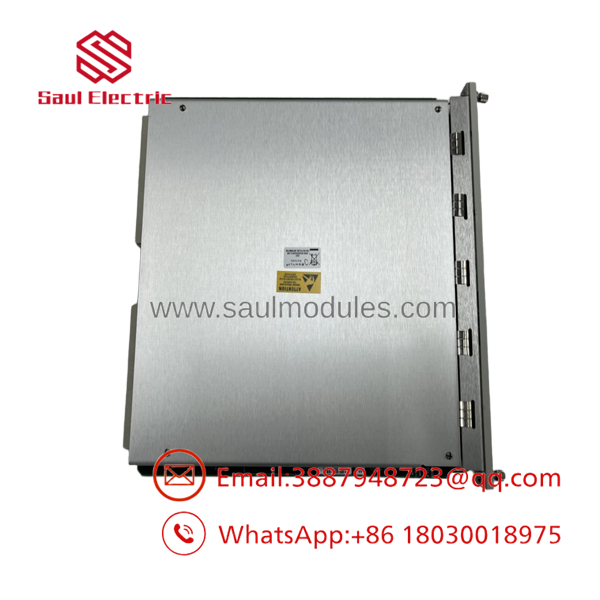

3500/62
Transparency SOP: Quality Assurance & Testing
We test Bently Nevada hardware on live 3500 racks before shipping. Here is our exact testing protocol:
- Inbound Physical Inspection: Verification of serial numbers, board revisions, conformal coating integrity, and backplane pin alignment.
- Rack Power-On & Diagnostic Verification: Insertion into a live Bently Nevada 3500 rack to pass full self-test diagnostic cycles without system fault LEDs.
- Loop Current & Voltage Injection: Precision 4-20 mA and 1-5 VDC signal generation across all 6 channels to verify measurement accuracy within OEM tolerances.
- Firmware Logging: Recording and verifying installed firmware versions using Bently Nevada Rack Configuration Software.
- Anti-Static Packaging: ESD-safe packaging in anti-static shielding bags with custom foam enclosures for transport.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Current vs. Voltage Jumper Settings: On-board jumpers on the 3500/62 card configure each channel for either 4-20 mA current input or 1-5 VDC voltage input. Inserting a card jumpered for voltage into a 4-20 mA loop will give wrong readings or blow the loop fuse. Check and set these jumpers to match the old card before installation.
- ❗ Transmitter Loop Power Wiring: The standard 3500/62 main module does not supply loop power to field transmitters on all I/O configurations. If your installation uses 2-wire passive transmitters, verify whether your rear I/O card provides internal 24 VDC loop power or requires an external power supply.
- ⚠️ TDI Configuration Download Mismatch: Replacing the card might trigger a configuration mismatch error if the new card’s firmware revision differs from the parameters stored in the 3500/22M TDI module. Re-download the rack configuration file using 3500 Rack Configuration Software to sync the module.
- ❗ Shielding and Ground Loops: Ensure instrument cable shields are grounded at one end only (typically at the 3500 rack rear I/O terminal). Dual-grounded shields induce ground loop currents into 4-20 mA signals, causing reading drift or false trip setpoint alarms.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the Bently Nevada 3500/62 module while the rack is powered?
A: Yes. The 3500 system supports live hot-swapping. However, pulling the module instantly removes process variable monitoring on those 6 channels. If those channels feed voting logic or safety instrumented system (SIS) trips, bypass or inhibit the affected trip channels prior to removing the card.
Q: What is the difference between the 3500/61 and the 3500/62 modules?
A: The 3500/61 is specifically designed for direct temperature sensors (3-wire RTDs and Thermocouples). The 3500/62 is designed for standard process variable signals (+4 to +20 mA or proportional DC voltages) coming from field-mounted transmitters.
Q: What do the option numbers like 3500/62-01-00 mean?
A: Option numbers designate hardware configurations. The first dash number (-01) specifies the type of rear I/O module (e.g., Internal Termination, External Termination, or TMR). The second dash number (-00) designates agency approval options (such as CSA or ATEX hazardous area certifications).
Q: Is this 3500/62 card new or surplus, and what warranty is included?
A: We supply both Factory Sealed New Surplus and fully bench-tested Refurbished stock. Every 3500/62 module is fully tested in an operational 3500 rack and backed by a comprehensive 12-month replacement warranty.
Q: Why buy surplus Bently Nevada hardware instead of ordering direct from the OEM?
A: OEM factory lead times for 3500 cards can extend from 12 to 24 weeks. Buying surplus hardware gives you immediate access to genuine, pre-tested Bently Nevada modules at significantly lower prices, keeping your critical machinery protected without costly downtime delays.
