Product Introduction
The Bently Nevada 3500/70-01-01 is a 4-channel dynamic pressure monitor module designed for the 3500 Series Machinery Protection System. It processes high-frequency dynamic pressure oscillations from gas turbine combustors or reciprocating compressor piping, identifying acoustic resonances and combustion instabilities before they cause structural fatigue.
Unlike standard static pressure monitors, the 3500/70-01-01 conditions high-speed dynamic signals, applying specialized bandpass filtering and peak tracking directly on the rack backplane. It compares dynamic pressure amplitudes against hardware alarm setpoints to trigger automatic trip relays independent of plant control systems.
Key Technical Specifications
| Parameter | Value |
| Full Part Number | 3500/70-01-01 (Internal Termination, Agency Approvals) |
| Input Channels | 4 channels (individually configurable) |
| Supported Inputs | Charge Amplifiers, Dynamic Pressure Transducers (e.g., Charge/IEPE) |
| Frequency Range | 1 Hz to 15,000 Hz (configurable bandpass filters) |
| Power Consumption | 7.0 Watts typical |
| Rack Slot Occupancy | Dual-slot module (occupies 2 adjacent slots in 3500 rack) |
| Accuracy | Within ±1% of full-scale raw signal input |
| Signal Conditioning | On-board digital signal processing (DSP) per channel |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| I/O Module Type (-01) | Dynamic Pressure I/O Module with Internal Terminations |
| Agency Approval (-01) | Multiple Approvals (CSA / NRTL / ATEX / IECEx) |
Application Scenarios & The “Trench” Experience
It is 3:30 AM during peak summer demand. A combined-cycle gas turbine starts humming with low-frequency acoustic oscillation. A combustion pressure wave is building up inside the combustor baskets, threatening to crack thermal barrier coatings or shear burner nozzles. The 3500/70-01-01 monitor in slot 5 fails due to a power spike, leaving the operator blind to combustion dynamics. Replacing it immediately prevents a multi-million-dollar turbine destruction event.
- Power Generation – Dry Low-NOx (DLN) Gas Turbine Combustor Dynamics – Tracks acoustic pressure pulsations across combustion cans to prevent flameout or destructive lean-premix instabilities.
- Gas Transmission – Reciprocating Compressor Pulsation Monitoring – Measures high-speed pressure surges in suction and discharge piping to avoid mechanical fatigue in valve assemblies.
- Petrochemical – High-Pressure Hyper-Compressor Cylinder Protection – Continuously monitors dynamic pressure spikes inside ultra-high-pressure polyolefin reaction loops.
- Aerospace Test Cells – Jet Engine Combustor Testing – Provides real-time dynamic pressure telemetry during full-scale static thrust tests.
Field Case Study: A municipal power plant detected elevated noise levels on a GE Frame 7FA gas turbine. The installed 3500/70 card had developed an ADC fault on channel 2. A pre-tested 3500/70-01-01 surplus module was racked in under 15 minutes, allowing engineers to tune fuel gas split valves in real time and clear critical combustion dynamics before thermal fatigue damaged the transition pieces.

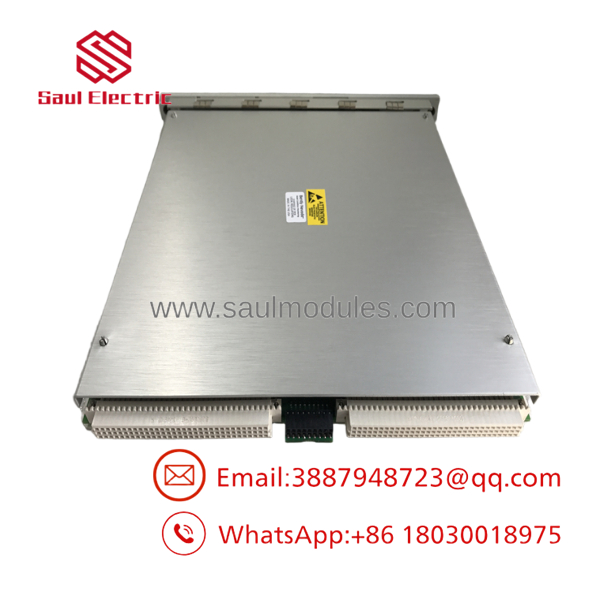

3500/70-01-01

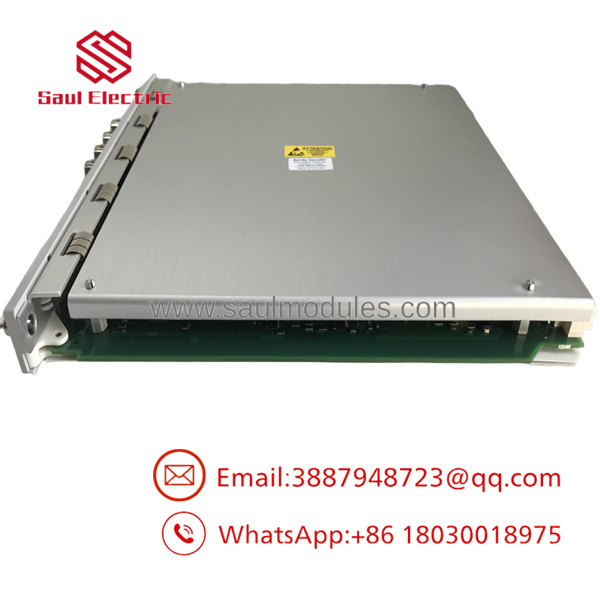

3500/70-01-01
Transparency SOP: Quality Assurance & Testing
We test Bently Nevada hardware on live 3500 racks before shipping. Here is our exact testing protocol:
- Inbound Physical Inspection: Verification of serial numbers, sub-assembly part numbers, conformal coating, and backplane pin integrity.
- Rack Power-On & Self-Test: Insertion into a live Bently Nevada 3500 rack to verify firmware initialization and clear all system fault LEDs.
- Dynamic Signal Sweep Testing: Injection of AC voltage/charge signals across 1 Hz to 15 kHz using a function generator to verify filter response and peak detection accuracy across all 4 channels.
- Firmware & Option Code Verification: Verifying installed firmware revs and validating option codes (-01-01) using 3500 Rack Configuration Software.
- Anti-Static Packaging: Sealed in anti-static shielding bags and packaged in ESD-safe, custom-cut foam containers.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Transducer Power & Bias Voltage: Dynamic pressure sensors often require external charge amplifiers or internal IEPE/ICP constant current power. Verify the hardware jumper settings on both the main 3500/70 board and the rear I/O card before powering up field transducers, or you risk damaging the sensor signal conditioner.
- ❗ Filter Corner Frequencies: The 3500/70 relies heavily on software-configured bandpass filters to isolate combustion tones. If you replace the hardware without loading the correct rack configuration file, default wideband filter settings may miss narrow-band acoustic spikes or generate false alarm trips from background noise.
- ⚠️ Matching the -01 Rear I/O Module: The
-01suffix designates an Internal Termination Dynamic Pressure I/O module. Do not attempt to mate this main card with a Standard 4-20mA or RTD rear I/O card. The backplane keying pegs will physically prevent insertion, but forcing it will break the connector pins. - ❗ Grounding Shield Loops on Charge Cables: High-impedance charge transducer lines are extremely sensitive to electrical noise. Ensure shield drain wires are terminated strictly according to Bently Nevada’s single-point grounding spec at the rear I/O block to prevent 60 Hz hum from corrupting peak pressure readings.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the Bently Nevada 3500/70-01-01 module while the rack is powered?
A: Yes. The 3500/70 supports live hot-swapping. However, pulling the module instantly disables dynamic pressure trip protection on those 4 channels. Ensure you bypass or inhibit associated combustion trip logic in your plant control system or safety instrumented system (SIS) prior to removal.
Q: What do the specific option numbers “-01-01” mean on this model?
A: The first -01 indicates the I/O Module Type (Dynamic Pressure I/O Module with Internal Terminations). The second -01 indicates Agency Approval Options (Multiple Approvals, including CSA, NRTL, ATEX, and IECEx for hazardous area installations).
Q: Will the replacement 3500/70-01-01 automatically download its configuration from the rack?
A: If your rack features a 3500/22M TDI module and the new card matches the existing firmware rev, the TDI will automatically push the channel configuration and filter settings to the card upon boot. If a firmware mismatch error occurs, re-sync using 3500 Rack Configuration Software.
Q: Is this unit new or surplus, and what warranty covers it?
A: We supply both Factory Sealed New Surplus and fully bench-tested Refurbished hardware. Every 3500/70-01-01 module undergoes complete dynamic signal injection testing in an operational rack and is covered by our full 12-month replacement warranty.
Q: Why buy surplus Bently Nevada hardware rather than buying direct from the manufacturer?
A: Factory lead times for specialized 3500 cards like the 3500/70 can stretch past 16 to 20 weeks. Surplus stock gives you immediate delivery of authentic Bently Nevada hardware at a reduced cost, avoiding prolonged plant shutdowns.
