Product Introduction
The Bently Nevada 3500/91 (Assembly 161204-01) is an Ethernet Global Data (EGD) gateway module designed for the 3500 Series Machinery Protection System. It acts as a high-speed communications bridge, seamlessly transferring vibration, position, and temperature data from the 3500 backplane directly to GE Mark VI, Mark VIe, or PACSystems RX3i controllers over EGD protocol.
Unlike standard serial Modbus cards, the 3500/91 delivers high-bandwidth, deterministic data exchange using Ethernet UDP/IP frame structures. This allows control room DCS operator workstations and turbine governors to digest real-time machinery health parameters without overburdening the primary Transient Data Interface (TDI) module.
Key Technical Specifications
| Parameter | Value |
| Assembly Part Number | 161204-01 (Main 3500/91 Card) |
| Protocol | GE Ethernet Global Data (EGD) via UDP/IP |
| Ethernet Port | 10Base-T / 100Base-TX via RJ45 Rear I/O Module |
| Power Consumption | 5.6 Watts typical |
| Rack Slot Occupancy | Single-slot main module (occupies 1 slot in 3500 rack) |
| Data Rate | Up to 100 Mbps full duplex |
| Supported Data Types | Overall values, alarm statuses, gaps, machine speed, process variables |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Isolation | 1500V RMS galvanic Ethernet isolation |
| I/O Modules Supported | Ethernet I/O Module (136118-01 / 136126-01) |
Application Scenarios & The “Trench” Experience
It is 2:00 AM during a peak power cycle. The Mark VIe steam turbine governor suddenly loses communications with the 3500 machinery protection rack, triggering a “TDI Comm Fault” alarm on the HMI. The plant is forced to lock the turbine load because it cannot verify real-time vibration amplitude. The existing 161204-01 card suffered a local Ethernet PHY chip failure. Dropping in a tested surplus replacement gets EGD packet exchanges flowing again, preventing an forced outage.
- Power Generation – GE Mark VIe Turbine Control System Integration – Transmits high-speed speed, vibration, and thrust bearing values directly to governor logic over EGD.
- Oil & Gas – Centrifugal Compressor Skid Automation – Connects 3500 rack telemetry to GE Fanuc PLCs controlling anti-surge valves.
- Chemical Refineries – Plant-Wide Condition Monitoring – Feeds high-density overall static variables into central DCS systems without requiring complex serial RS485 wiring runs.
- Marine Propulsion – Main Shaft Vibration Telemetry – Delivers reliable Ethernet diagnostics to shipboard integrated bridge networks under heavy electrical noise conditions.
Field Case Study: A combined-cycle plant experienced dropped EGD data packets between a 3500 vibration rack and an RX3i PLC governing a heat recovery steam generator (HRSG) feed pump. The onboard 161204-01 module had developed thermal degradation in its Ethernet port transceiver after 10 years in service. Swapping the card out with a pre-tested surplus 3500/91 unit resolved the packet loss instantly, saving hours of network troubleshooting and keeping the pump online.

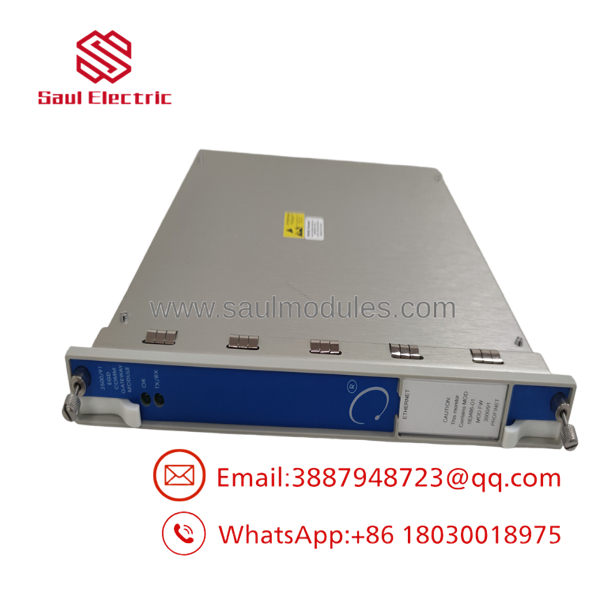

3500/91 161204-01

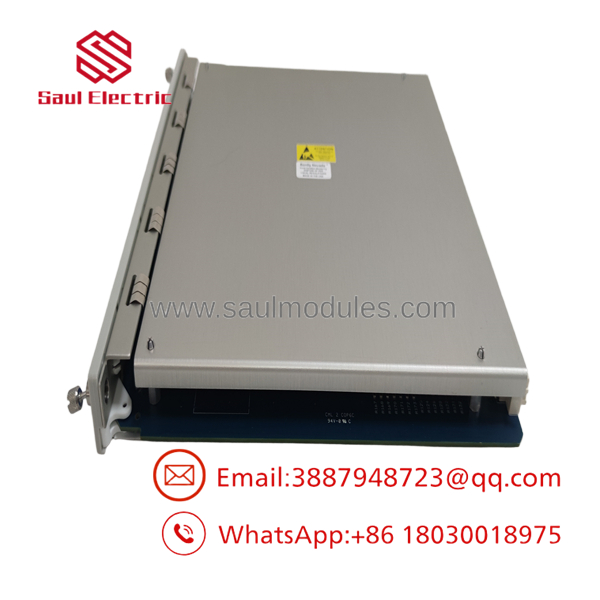

3500/91 161204-01
Transparency SOP: Quality Assurance & Testing
We test Bently Nevada hardware on live 3500 racks before shipping. Here is our exact testing protocol:
- Inbound Physical Inspection: Verification of PCB assembly numbers (161204-01), edge connector plating, and physical component integrity.
- Rack Power-On & Diagnostic Verification: Insertion into an active Bently Nevada 3500 rack to verify power rail stability and pass internal self-tests without fault LEDs.
- EGD Network Ping & Data Exchange: Connection to a GE PLC test rig over EGD to verify deterministic UDP packet transmission, IP assignment, and exchange configuration loading.
- Firmware Logging: Verifying and logging current onboard firmware revisions using 3500 Rack Configuration Software.
- Anti-Static Packaging: Sealed inside ESD-shielding bags and packed in custom shock-absorbing foam enclosures for transport.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ IP Address & Subnet Mismatch: The 3500/91 module requires a valid static IP address, subnet mask, and EGD Exchange Configuration. If you replace a failed card, the new module will not auto-assign its IP address. You must explicitly push the configuration file via 3500 Rack Configuration Software using an RS232 serial cable connected to the TDI front port.
- ❗ EGD Exchange ID Alignment: GE controllers identify data blocks by specific Exchange IDs. If the Exchange IDs configured on the new 3500/91 card do not match the expected Exchange IDs programmed in the Mark VIe/PLC firmware, the controller will ignore the incoming EGD packets entirely, even if the IP ping succeeds.
- ⚠️ Rear I/O Compatibility: Make sure your rear I/O module (typically 136118-01 or similar Ethernet I/O card) matches the main 161204-01 module configuration. Attempting to run an EGD module with a standard Serial Modbus rear I/O card will cause backplane faults.
- ❗ Network Switch Duplex Settings: Forced 100Mbps Full Duplex settings on unmanaged industrial switches can cause duplex mismatches with older 3500/91 Ethernet PHY circuits. Set switch ports connected to the 3500/91 to Auto-Negotiate to prevent severe packet fragmentation.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the difference between part number 3500/91 and assembly number 161204-01?
A: 3500/91 is the system-level catalog number for the EGD Gateway Module. 161204-01 is the specific manufactured printed circuit board (PCB) assembly part number stamped on the main card itself. They refer to the exact same physical main card module.
Q: Can I hot-swap the Bently Nevada 3500/91 module while the rack is live?
A: Yes. The 3500 system permits live hot-swapping of gateway cards. However, pulling the card will temporarily interrupt all EGD network data updates to your control system. Machine protection trip functions handled locally by 3500 monitor modules (like the 3500/42M or 3500/50) remain fully operational and active during the swap.
Q: Does the 3500/91 support standard Modbus TCP/IP communication?
A: No. The 3500/91 card is specifically designed for GE Ethernet Global Data (EGD) protocol. If you require Modbus TCP/IP or Modbus RTU serial communications, you need a Bently Nevada 3500/92 Modbus Gateway Module instead.
Q: Is this 3500/91 161204-01 unit new or surplus, and what warranty is included?
A: We stock both Factory Sealed New Surplus and bench-tested Refurbished inventory. Every 161204-01 module undergoes complete network communication bench testing in an operational rack and comes with our standard 12-month replacement warranty.
Q: Why buy surplus Bently Nevada hardware rather than ordering direct from the factory?
A: Legacy communication cards like the 3500/91 often face long factory lead times or end-of-life availability issues. Sourcing surplus inventory gives you immediate access to pre-tested, authentic hardware at lower costs, restoring network monitoring without delay.
