Product Introduction & Engineering Value
Veteran’s Take: If you have ever been stuck standing in front of a roaring gas turbine trying to diagnose an unexplained trip without a network drop nearby, you know exactly why we put the 3500/94M into our rack builds. It is the bridge that turns raw, high-speed monitoring data into immediate, actionable visual feedback right on the enclosure door.
This module interfaces directly with the 3500/22 Transient Data Interface (TDI) to extract real-time vibration, axial position, gap values, and system events. It formats this critical dataset and drives an external, industrial-grade resistive touch monitor up to 20 feet away using standard cabling. Rather than relying on a distant control room operator to read back Modbus registers, local instrument techs get immediate access to bargraphs, alarm lists, and system OK statuses.
Technical Specifications
- Main Module Part Number: 184826-01 (3500/94M Main Card)
- Default I/O Card Part Number: 190214-01 (Normal I/O)
- Rack Slot Requirements: Occupies one full-height front slot (main module) and one full-height rear slot (I/O module)
- Analog Outputs: VGA analog red, green, blue, and sync signals to display
- Serial Interface: RS-232 port dedicated to touch controller data transfer
- Front Panel Ports: Specialized port providing 24 VDC power out, VGA video out, and touch command routing
- Compatible Monitors: Hardened 10-inch (ANA-D3510-100-A1) and 15-inch (FPM-8151H) touch screens
- Firmware Prerequisites: Requires 3500/94M firmware version 4.06 (Revision C) or higher and 3500/22 TDI module
- Maximum Cable Run: 6.1 meters (20 feet) with standard VGA/Serial cable; extendable up to 10 km via optional KVM extenders
- Operating Temp Limits: -20°C to 65°C (-4°F to 149°F) for rack-mounted electronics

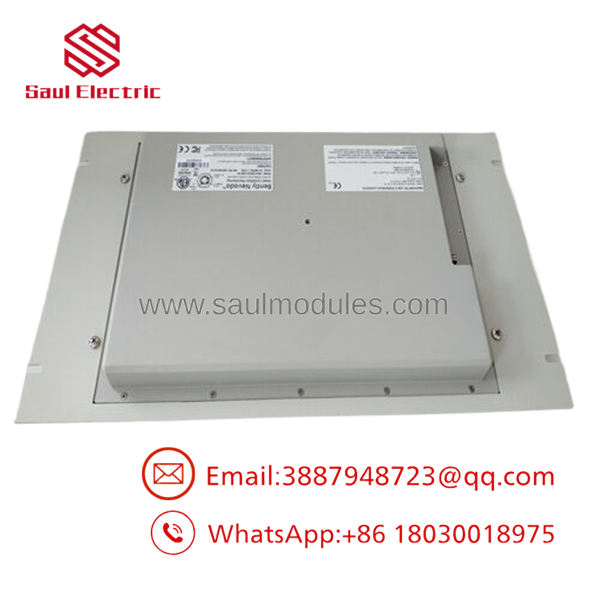

- 3500/94M

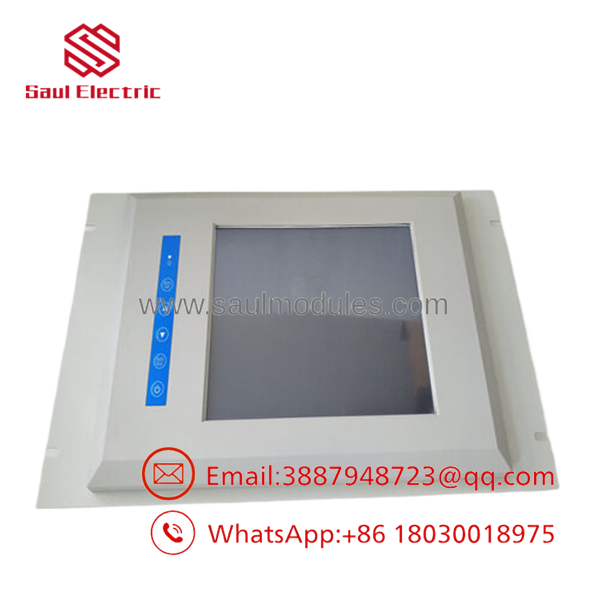

- 3500/94M
Field Application & The “Trench” Experience
The “Trench” Story: A Midnight Recovery on a Pipeline Feed Pump
Our field crew was dispatched to a remote pipeline pumping station where a high-pressure crude pump was flagging intermittent “Gap Voltage” alarms on a proximity probe. The station’s remote telemetry system had latency issues, making it impossible to capture the transient jump on the control room HMIs.
We installed a refurbished 3500/94M module and a 10-inch panel-mounted touch screen directly onto the local machine panel. By utilizing the module’s “Quick View” custom screen configurations, the local techs watched the live physical gap values during start-up. They caught a structural resonance issue causing physical probe-to-shaft contact in real time. Having the display right at the machine let us calibrate the probe bracket and verify the fix immediately, saving a $250k pump from catastrophic bearing failure.
Dedicated High-Utility Environments:
- Catalytic Cracking Unit Compressor Train: Localized monitoring of casing and radial shaft vibration on wet gas compressors.
- Steam Turbine Generator Skids: Immediate verification of rotor position and valve differential expansion measurements during hot restarts.
- Auxiliary Marine Thrusters: Door-mounted vibration monitoring on thruster rooms subject to washdowns, utilizing an IP65 rated display enclosure.
Transparency SOP: QA & Testing
We do not just pull a card from a box and ship it. Every New Surplus or Refurbished 3500/94M undergoes a multi-point verification process before it is cleared for dispatch:
- Visual Inspection: Microscopic checks for solder fatigue, micro-cracks on the PCB, and pin integrity on both the front module and rear I/O card connectors.
- Backplane Communication Test: The module is inserted into a live Bently Nevada 3500 chassis. We verify register synchronization and telemetry exchange with a 3500/22 TDI card.
- Video & Touch loopback: We connect both 10-inch and 15-inch Advantech test monitors to the interface. We run a continuous diagnostic script to check for video signal jitter, color balancing, and coordinate accuracy on the touch digitizer.
- Heat Soak Burn-In: Refurbished units run in our environmental chamber under load at 50°C for a minimum of 24 hours to eliminate infant mortality components.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ FIRMWARE & HARDWARE COUPLING WARNING: You cannot just throw a 3500/94M into any old 3500 rack. This module requires the 3500/22 Transient Data Interface (TDI). If your rack is running an older 3500/20 Keyphasor or an older M-series rack interface, this card will sit dead in the slot. Double-check your rack configuration before ordering.
PRO TIP on Climate Screen Choice: If your installation area drops below 0°C (32°F), do not buy the 15-inch display (FPM-8151H) unless you are planning to install it in a heated enclosure. The 15-inch screen has a lower limit of 0°C. If you are mounting this on an unheated outdoor enclosure in cold climates, use the 10-inch display instead, which is rated down to -20°C (-4°F).
⚠️ COMMUNICATION PORT COLLISION: If you plan to use the 3500/94M Display Router Box to switch one display between up to four racks, remember that all racks must run compatible firmware. A mismatch in configuration software revisions (e.g., mixing Rack Config Rev 5.6 with older Rev 4.x racks) will cause the router switch to drop communications, locking up the touch interface.
Dynamic FAQ
- Q: Can I use a standard off-the-shelf consumer touchscreen monitor with the 3500/94M?
- A: No. The touch controllers on consumer screens are not compatible with the touch input interpreter built into the 3500/94M. You must use the approved, industrial-hardened Advantech displays (such as the FPM-8151H or ANA-D3510) pre-configured in the 3500 Rack Configuration Software.
- Q: What is the difference between “New Surplus” and “Refurbished” when buying this module?
- A: “New Surplus” units are original, unused parts that have remained in storage (often as plant spares). They come in original factory packaging but may have older date codes. “Refurbished” units have been field-cleared, components audited, fully cleaned, and dynamically tested in a live chassis to match original factory performance. Both options carry our 12-month warranty.
- Q: Does the 3500/94M power the display directly, or do I need a secondary power supply?
- A: The 3500/94M output port on the I/O module can provide 24 VDC power, but this is only intended for specific low-draw front-mount options. For standard 10-inch and 15-inch remote door mounts, you must run a separate, dedicated 24 VDC industrial power supply (such as the Bently Nevada 119M6509) directly to the display terminal block to handle the LCD backlight current draw.
- Q: Can I run custom diagnostic scripts on the custom screens?
- A: You can configure up to nine custom display pages using the 3500 Rack Configuration Software. These allow you to group specific machine trains, display 1X filtered vibration values, and monitor proximity gap readings. However, they do not support free-form scripting; they are pre-engineered templates designed for fast, reliable visualization.
