Description
Product Introduction & Engineering Value
Rotating equipment failures are often influenced by process conditions, not only mechanical vibration. The Bently Nevada 3500/62 Process Variable Monitor provides additional measurement capability by monitoring external parameters that affect machine performance.
The 350062-04-00 allows engineers to integrate process information into the existing 3500 protection environment. It is commonly used where temperature, pressure, flow, or other analog variables must be reviewed alongside vibration and position data.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 350062-04-00 |
| Product Name | 3500/62 Process Variable Monitor |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Module Type | Process variable monitoring module |
| Input Channels | 6-channel configuration |
| Input Signal Type | Analog process signals |
| Typical Signal Range | 4–20 mA inputs |
| Installation | 3500 rack-mounted module |
| Measurement Purpose | Process condition monitoring |
| Alarm Function | Configurable Alert and Danger thresholds |
| Configuration | Software configurable |

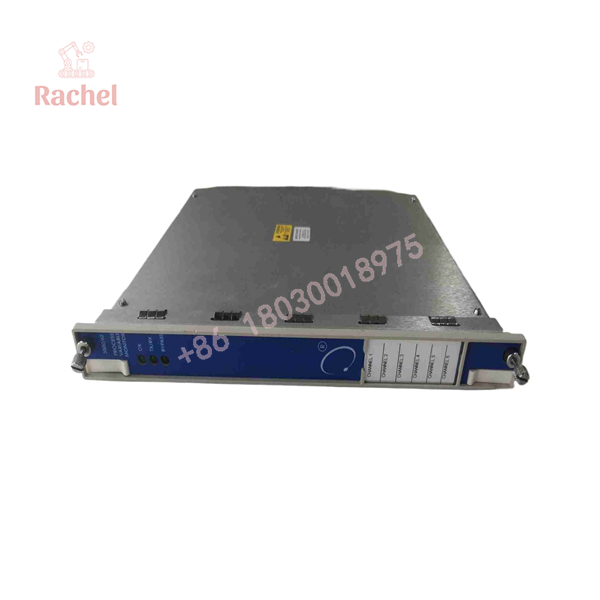

350062-04-00

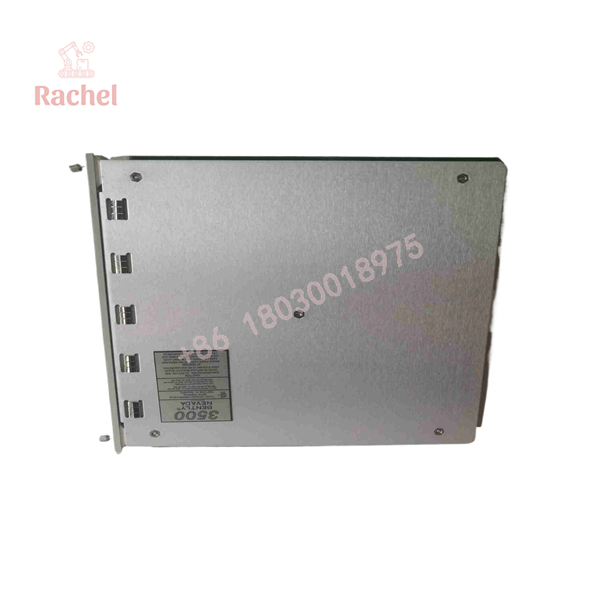

350062-04-00
Field Application & The “Trench” Experience
A petrochemical facility operating a large compressor train noticed increasing vibration during certain process conditions. Mechanical inspection showed no immediate bearing issues, but operators suspected the machine was being pushed outside its normal operating envelope.
The reliability team reviewed additional process variables from the Bently Nevada 3500 rack and discovered that suction pressure fluctuations were occurring before the vibration increase. The existing process monitoring channel required replacement, and a tested Bently Nevada 350062-04-00 was installed.
After verifying analog inputs, scaling values, and alarm settings, engineers restored the missing process data needed for complete machinery analysis.
Typical application scenarios include:
Compressor process monitoring
- Suction and discharge pressure tracking
- Process condition correlation
- Operating envelope analysis
Turbine auxiliary systems
- Temperature monitoring
- Valve position feedback
- Supporting process parameter supervision
Industrial machinery protection
- Pump operating condition monitoring
- Flow signal integration
- Existing 3500 rack expansion
Transparency SOP: QA & Testing
Process variable modules require input simulation because incorrect scaling can create inaccurate plant data.
Quality verification steps:
- Visual and identification check
- Confirm 350062-04-00 model marking
- Inspect connectors and housing
- Verify rack interface condition
- Electrical testing
- Confirm power-up operation
- Check module status indicators
- Verify internal electronics response
- Signal simulation
- Apply simulated analog inputs
- Verify channel readings
- Confirm alarm operation
- Final inspection
- Record test results
- Assign New Surplus / Refurbished status
- Package with ESD protection
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Always verify input scaling before blaming the module.
A 4–20 mA signal with incorrect scaling can display incorrect process values even when the hardware is functioning normally.
⚠️ Do not assume all analog inputs are identical.
Check signal type, engineering units, and transmitter configuration before installation.
⚠️ Review alarm settings after replacement.
The replacement module may restore measurement, but process alarms and threshold values must be confirmed against plant documentation.
Dynamic FAQ
Q1: What is the Bently Nevada 350062-04-00 used for?
The 350062-04-00 is a Bently Nevada 3500/62 Process Variable Monitor used to measure external process signals and integrate them into a 3500 machinery protection system.
Q2: What signals can the 3500/62 monitor?
Depending on configuration, the module can monitor analog process inputs such as 4–20 mA signals from transmitters measuring temperature, pressure, flow, or other operating parameters.
Q3: Is the 350062-04-00 a vibration monitor?
No. The module monitors process variables. Vibration measurement is performed by dedicated Bently Nevada monitoring modules such as proximity or seismic monitors.
Q4: What should be checked before replacing a 350062-04-00?
Verify:
- Complete part number
- Input signal type
- Channel configuration
- Engineering unit scaling
- Existing 3500 rack setup
Q5: Are refurbished Bently Nevada 350062-04-00 modules tested?
Qualified automation suppliers typically perform visual inspection, electrical checks, input simulation testing, and operational verification before shipment.
Q6: What warranty is available for this module?
Warranty terms depend on supplier policy, product condition, and testing scope. Buyers should confirm warranty coverage and inspection records before purchase.
Q7: Why do plants use process variable modules in a machinery protection system?
Mechanical condition is often affected by operating conditions. Monitoring process variables alongside vibration data helps engineers understand equipment behavior and investigate abnormal events more accurately.
