The Bently Nevada 350070M 176449-09 is a 3500/70M Reciprocating Impulse Velocity Monitor designed for machinery protection applications, especially reciprocating compressors and critical rotating equipment. It processes vibration signals from seismic transducers and provides alarm monitoring within a Bently Nevada 3500 rack architecture.
This module provides four-channel vibration monitoring with configurable alarm logic and integration into plant machinery protection systems. Unlike basic vibration transmitters, the 3500/70M performs signal conditioning, measurement processing, and alarm comparison inside the protection rack. It remains widely used where maintaining an existing Bently Nevada 3500 installation is more practical than performing a complete monitoring system migration.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 350070M |
| Part Number | 176449-09 |
| Product Type | Reciprocating Impulse Velocity Monitor |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Channel Count | 4 monitoring channels |
| Input Type | Seismic transducer / vibration signal inputs |
| Measurement Functions | Reciprocating velocity, impulse acceleration, acceleration measurement |
| Typical Power Consumption | Approx. 6.5–7.7 W |
| Operating Temperature | 0°C to +55°C typical |
| Storage Temperature | -20°C to +70°C or extended depending on configuration |
| Communication Interface | 3500 rack communication architecture |
| Output Options | Analog and relay alarm outputs through configured rack I/O |
Application Scenarios & The “Trench” Experience
A compressor train goes down at 2:13 AM. The operator sees a vibration alarm, maintenance checks the machine, and the diagnosis points back to the monitoring rack. The failed card is a 3500/70M installed fifteen years ago.
This is where engineers usually discover the problem: the machine is still mechanically healthy, but the protection hardware is no longer available through normal channels. Downtime costs far more than the replacement module.
In our field experience, keeping validated spare monitoring modules for legacy Bently Nevada systems prevents unnecessary emergency migrations.
Common Applications
Oil & Gas – Reciprocating Compressor Protection –
Required for monitoring crankcase and crosshead vibration where compressor mechanical condition directly affects production availability.
Petrochemical Plants – Critical Compressor Monitoring –
Used inside Bently Nevada 3500 racks to provide vibration measurement and alarm functions for process compressors.
Pipeline Stations – Gas Compression Equipment –
Maintains machinery protection coverage on remote compressor stations where shutdown response is expensive.
Power Generation – Auxiliary Rotating Equipment Monitoring –
Used where legacy 3500 systems remain installed and replacement compatibility is required.
Industrial Manufacturing – Large Reciprocating Machinery –
Supports vibration-based predictive maintenance programs.
Field Replacement Example
A chemical plant operating a 3500 rack reported intermittent vibration alarms from one compressor channel. Investigation showed the 3500/70M module had internal channel processing failure.
The plant could not immediately replace the complete rack because shutdown engineering approval required several weeks.
A tested 3500/70M 176449-09 replacement module restored monitoring within the maintenance window. The plant avoided a full protection system upgrade during production season.
That is the practical value of maintaining verified legacy inventory.

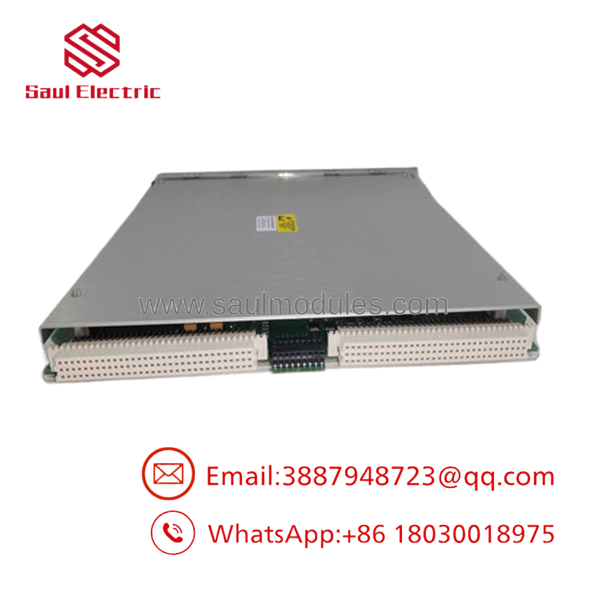

- 350070M 176449-09

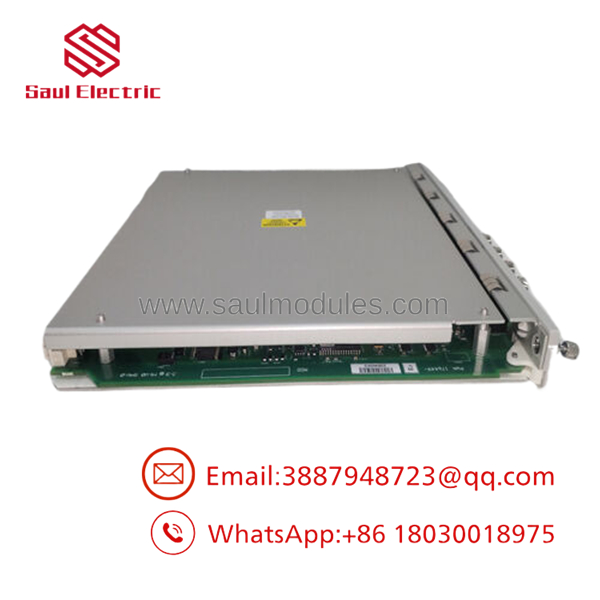

- 350070M 176449-09
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada-compatible systems whenever possible.
Incoming Inspection
- Verify OEM label, serial number, and part number consistency.
- Check Bently Nevada housing condition, connectors, and rack interface pins.
- Inspect for counterfeit markings, damaged labels, or unauthorized repairs.
- Record module photographs before testing.
Live Rig Testing
- Power-up verification using compatible 3500 rack hardware.
- Confirm module initialization and self-test results.
- Verify communication handshake with 3500 System Configuration Software.
- Confirm channel response and alarm configuration access.
Electrical Parameter Checks
- Check power consumption during operation.
- Verify signal input response using calibrated vibration simulation equipment.
- Inspect output behavior under configured alarm conditions.
Firmware Verification
- Record installed firmware revision where accessible.
- Compare firmware compatibility with existing 3500 rack configurations.
- Document configuration parameters before shipment.
Final QC & Packaging
- Perform final visual inspection.
- Apply ESD protection packaging.
- Include test report and warranty documentation where applicable.
The Veteran’s Tech Trap Guide
⚠️ Do not assume every 3500/70M is interchangeable.
Verify exact part number, firmware revision, and rack configuration before installation.
❗ Take a photo of the old module configuration before removing it. Trust me.
A forgotten channel setup or alarm parameter can create false trips after replacement.
⚠️ Check the rack slot assignment.
The 3500 system configuration software must match the physical rack layout. A card installed in the wrong configured slot can generate communication faults.
❗ Do not pull this module from a live rack unless your procedure specifically allows it.
Hot-swapping capability depends on the exact 3500 system configuration and site procedures. Follow the OEM maintenance procedure.
⚠️ ESD damage is real.
These monitoring cards contain sensitive electronics. Use proper grounding before handling the module.
Frequently Asked Questions (FAQ)
Q1: Is the Bently Nevada 350070M 176449-09 still supported by the OEM?
A: The 3500/70M platform is a legacy machinery protection product family. Availability depends on OEM lifecycle status and regional support channels. Many plants continue operation through qualified surplus and replacement inventory.
Q2: Is the 350070M 176449-09 hot-swappable?
A: It depends on the installed 3500 rack procedure and site maintenance rules. Do not assume live removal is acceptable. Verify with the applicable Bently Nevada 3500 documentation before pulling the module.
Q3: Can I replace a failed 3500/70M directly with another 176449-09?
A: Usually yes when the replacement module matches the existing hardware configuration. However, verify rack configuration, firmware revision, and alarm settings before returning equipment to service.
Q4: Why is this module cheaper than buying directly from the OEM?
A: Many industrial spare modules come from global surplus inventories, plant closures, system upgrades, and maintenance stock liquidation. Pricing reflects sourcing channels, not necessarily product quality. The important point is verification testing.
Q5: Is this a fake or refurbished module?
A: Not every surplus module is refurbished. Some units are unused factory surplus; others may have been professionally refurbished. Request inspection records, serial verification, and test documentation before purchase.
Q6: Does the 350070M replace the 3500/72M?
A: No. They serve different measurement purposes. The 3500/70M focuses on reciprocating impulse velocity monitoring, while the 3500/72M is associated with piston rod position/drop monitoring applications.
Q7: What warranty is normally provided for surplus industrial modules?
A: A 12-month warranty is commonly offered by industrial automation spare-part suppliers, depending on supplier testing procedures and purchase terms.
