Bosch Rexroth 0608701018 EC304 SZ4 Servomotor

Description

Product Introduction & Engineering Value

When a fastening station starts missing torque targets, the motor is often one of the first components engineers investigate. The Bosch Rexroth 0608701018 EC304 SZ4 provides the controlled rotary motion required by Rexroth tightening systems where repeatable speed, positioning, and torque behavior are essential.

This servomotor is built for integration with Rexroth electric tightening solutions, including spindle-driven assembly applications. Correct replacement requires matching the motor code, mechanical interface, drive parameters, and feedback configuration.

Technical Specifications

Field Application & The “Trench” Experience

A production engineer at an automotive assembly plant notices repeated fastening alarms on a battery-pack assembly line. The controller reports inconsistent spindle acceleration during tightening cycles. After checking the drive amplifier, encoder feedback, and mechanical coupling, the maintenance team identifies a worn EC304 SZ4 motor as the source of unstable motion.

Instead of replacing the complete tightening spindle, the team replaces the motor with a verified Bosch Rexroth 0608701018, restores the original drive parameters, checks rotation direction, and recalibrates the fastening process.

The important lesson from the field: a servo motor replacement is not only a mechanical swap. Feedback alignment and drive configuration directly affect tightening accuracy.

Specific application scenarios

• Automotive battery module screw fastening stations — controlled tightening where torque-angle monitoring is required.
• Engine and transmission assembly lines — electric nutrunner systems requiring repeatable spindle motion.
• Industrial production cells using Rexroth tightening spindles — maintenance replacement for EC304 motor assemblies.

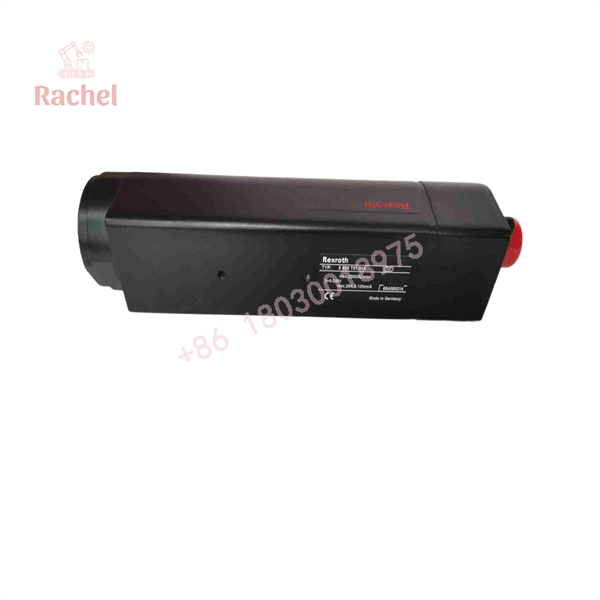

0608701018

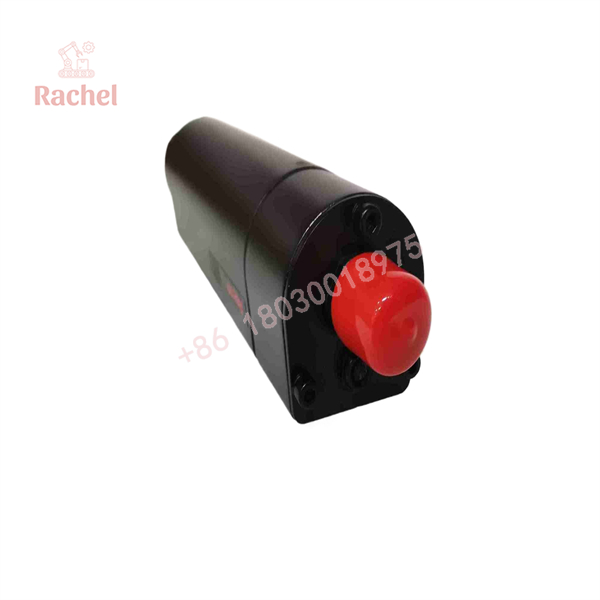

0608701018

Transparency SOP: QA & Testing

For New Surplus or Refurbished Bosch Rexroth 0608701018 inventory, inspection should focus on both electrical condition and mechanical integrity.

Inspection workflow:

1. Identification check
   • Verify Bosch Rexroth material number: 0608701018.
   • Confirm EC304 SZ4 motor marking.
2. Mechanical inspection
   • Check shaft condition.
   • Inspect mounting flange.
   • Verify connector condition.
3. Electrical evaluation
   • Measure winding resistance balance.
   • Check insulation condition.
   • Verify feedback device connections.
4. Operational testing
   • Run controlled rotation test when compatible equipment is available.
   • Confirm smooth acceleration and abnormal noise absence.
5. Packaging protection
   • Use ESD-safe handling procedures.
   • Protect connectors and precision mechanical surfaces.

Bosch Rexroth provides original spare-part identification tools based on material numbers for verifying products and replacement components.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating the motor as a plug-and-play replacement

A matching mechanical size does not guarantee compatibility. The drive amplifier must support the motor characteristics, feedback system, and operating parameters.

PRO TIP: Record the old motor parameters before removal. The commissioning file is often more valuable than the motor label.

⚠️ Trap #2 — Ignoring spindle alignment

The EC304 SZ4 is commonly used in precision tightening applications. Incorrect coupling alignment can create bearing stress, vibration, and inaccurate fastening results.

⚠️ Trap #3 — Buying by description only

Some suppliers list this item as a “servo motor,” while others describe it as part of a tightening spindle assembly. Always verify:

• Material number: 0608701018
• Motor code:
• Size designation: SZ4

Dynamic FAQ

Q1: What is Bosch Rexroth 0608701018?

Bosch Rexroth 0608701018 is an EC304 SZ4 servomotor used in Rexroth tightening technology applications and precision automation equipment.

Q2: What equipment uses the EC304 SZ4 motor?

The motor is commonly associated with Rexroth electric tightening systems, including spindle and nutrunner applications used in automated assembly environments.

Q3: Can I replace 0608701018 with another EC motor?

Not without verification. The replacement must match motor size, feedback configuration, drive compatibility, and mechanical mounting requirements.

Q4: What should I check before installation?

Verify:

• Motor part number
• Connector type
• Drive parameter settings
• Encoder/feedback compatibility
• Mechanical coupling alignment

Q5: Is a New Surplus Bosch Rexroth 0608701018 unused?

New Surplus normally means unused inventory from excess stock channels. Request actual product photos, identification labels, and test records to confirm condition before purchase.

Q6: Does this motor include a warranty?

Warranty coverage depends on the supplier and product condition. Confirm whether the unit is New Surplus, refurbished, or tested used stock and review the supplier warranty terms before ordering.
