Description
Core Product Summary
The Bosch Rexroth Indramat DKC11.1-040-7-FW is an AC servo drive controller belonging to the ECODRIVE DKC11.1 product series. It is engineered to provide precise, cost-effective motor velocity and position control for single-axis and multi-axis industrial automation systems, including packaging, assembly, and handling equipment.
Operating with a rated peak current of 40 A and a nominal DC bus connection voltage rating up to 700 V DC, this drive unit utilizes an analog speed command interface with integrated position detection capabilities. The module is designed for direct control cabinet mounting and operates with factory-configurable firmware (FWA-ECODRV) to support standardized motor-drive parameterization.
Key Technical Specifications
| Parameter | Specification Details |
| Product Type | Digital AC Servo Drive Controller |
| Series / Version | ECODRIVE DKC Series, Version 11.1 |
| Model Code | DKC11.1-040-7-FW |
| Rated Current | 40 A |
| DC Bus Rating | 700 V DC |
| Main AC Supply Connection | 3-phase AC 380 V to 480 V (50/60 Hz) |
| Command Interface | Analog speed interface with integrated actual position detection |
| Power Dissipation | 180 W |
| Switching Frequency | Selectable 4 kHz or 8 kHz |
| Protection Rating | IP20 |
Detailed Product Overview
The Rexroth Indramat DKC11.1-040-7-FW serves as a centralized drive component within the ECODRIVE architecture, facilitating high-dynamic motion control for industrial AC servo motors. Its primary function is to interpret velocity and directional command signals from higher-level PLCs or motion controllers and supply controlled current to matched servo motors.
Equipped with an analog interface, the drive captures encoder feedback from the attached motor, delivering closed-loop speed regulation alongside precise position monitoring. Built-in diagnostic routines assist maintenance and commissioning personnel by evaluating fault status codes and operational conditions via standardized status signal outputs.
The drive controller incorporates integrated protection mechanisms against electrical contact and internal thermal overloads, maintaining drift-free standstill control during active operation through hardwired input signals.
Dimensions, Mounting & Connection Notes
- Enclosure Protection: Rated for IP20 protection class; intended for clean control cabinet installation.
- Mounting Method: Vertical panel installation inside an electrical cabinet with adequate air clearance for heat dissipation.
- Power Connection: Terminals for 3-phase mains AC supply, internal DC bus, and motor phase output connections.
- Feedback & Interface: Standard D-sub / terminal connector ports for motor feedback cables and external controller I/O wiring.

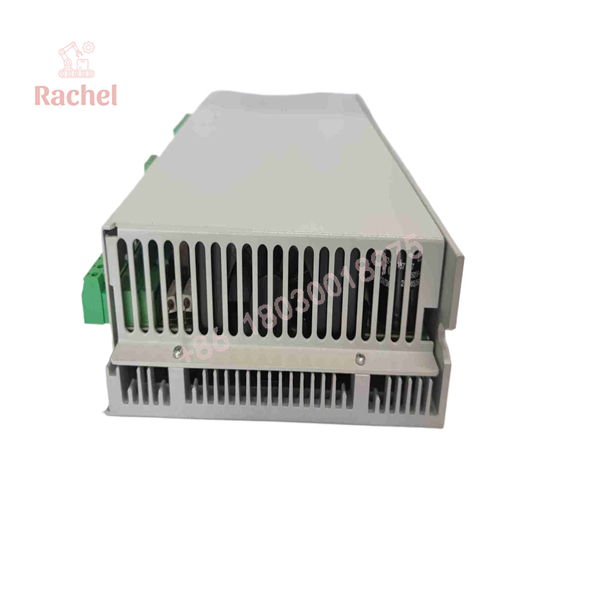

DKC11.1-040-7-FW

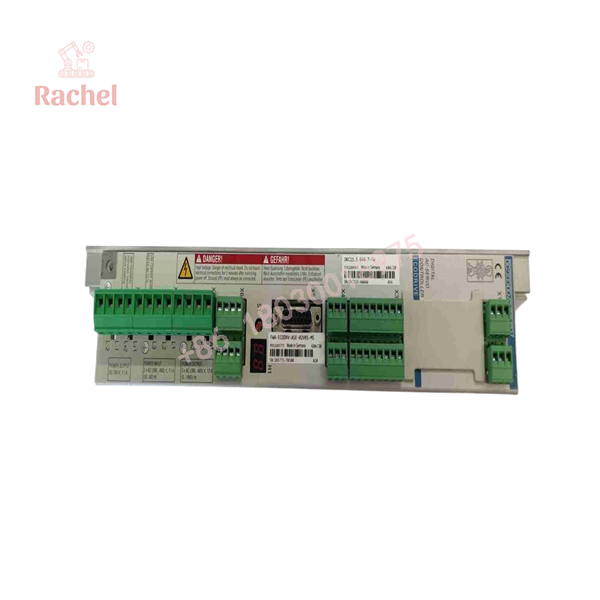

DKC11.1-040-7-FW
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Compatible Motors | Rexroth Indramat MKD Digital AC Servo Motors | Requires correct motor feedback cable selection. |
| Firmware Requirement | FWA-ECODRV plug-in firmware module | Firmware must be ordered/installed separately for complete drive configuration. |
| Main AC Supply | Direct 3-phase AC connection (380–480 V) | An autotransformer is required if matching line voltage outside 380–480 V. |
| Control Interface | Analog speed reference input and position feedback output | Interfaces with external PLC/CNC controllers handling analog command outputs. |
FAQ
What is the Rexroth DKC11.1-040-7-FW?
It is a 40 A digital AC servo drive controller from the Bosch Rexroth Indramat ECODRIVE family designed for precision speed and position control.
What interface does the DKC11.1-040-7-FW use?
It uses an analog speed command interface integrated with actual position value detection.
What power supply line voltage does it require?
It accepts a 3-phase main AC voltage input ranging between 380 V and 480 V at 50/60 Hz.
Is firmware included with the drive hardware?
Firmware (FWA-ECODRV series) is configured separately and installed into the drive module to enable specific functions.
Documented Performance Data
- Power Dissipation: 180 W under nominal operating conditions.
- Selectable Switching Frequency: 4 kHz or 8 kHz.
- Peak Current Output: 40 A rated output.
- DC Bus Voltage Output: 700 V DC nominal.
If you require terminal block pinouts, detailed parameter lists, or specific motor cable ordering codes for this drive controller, let me know and I can compile those integration details.
