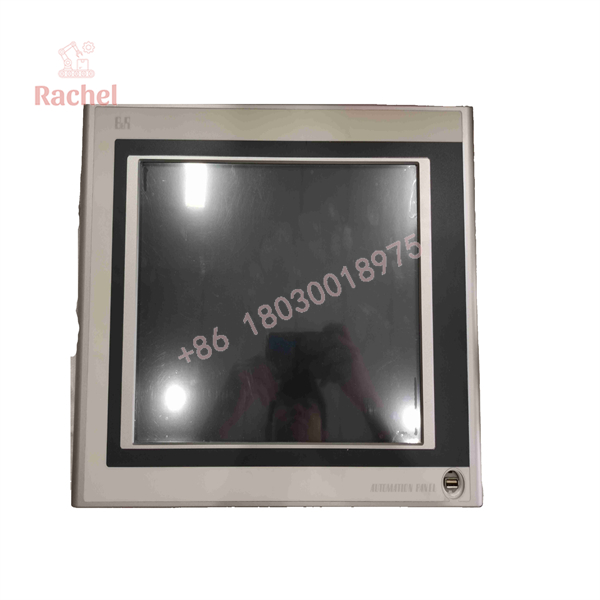

The B&R 5AP920-1505.01 Automation Panel AP920 is a 15-inch industrial operator interface designed for machine control, visualization, and HMI applications. It combines an XGA TFT color display, resistive touch input, USB connectivity, and compatibility with B&R Automation Panel Link architecture.
For machine builders and maintenance teams supporting existing B&R systems, this panel remains a key service component. Replacing an HMI is not only a hardware task; display size, mounting dimensions, touch controller behavior, communication method, and visualization software compatibility all need verification before installation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model Number | 5AP920-1505.01 |
| Product Family | Automation Panel 900 |
| Panel Type | Industrial Touch Panel |
| Display Technology | TFT color LCD |
| Display Size | 15 inch (381 mm) |
| Resolution | XGA 1024 × 768 pixels |
| Colors | 16.7 million |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1000:1 |
| Touchscreen Type | Analog resistive |
| Touch Controller | Elo serial 12-bit |
| USB Interfaces | 3 × USB 2.0 Type A |
| Supply Voltage | 24 VDC ±25% |
| Maximum Current | 3.2 A |
| Typical Power Consumption | 24 W |
| Front Protection Rating | IP65 / NEMA 250 Type 4X indoor |
| Operating Temperature | 0 to 50 °C depending on mounting orientation |
Field Application & The “Trench” Experience
A packaging equipment manufacturer operating a long-running production line began experiencing intermittent operator screen failures. The PLC, servo drives, and field I/O remained healthy, but operators lost access to machine recipes and production settings when the HMI display became unstable.
The maintenance team initially suspected the visualization software. After testing the PLC communication path and application project, the failure was traced to the aging operator panel hardware. A replacement B&R 5AP920-1505.01 was installed, the existing HMI project was restored, and the machine returned to service without changing the control architecture.
The practical lesson: an HMI failure can stop production even when the automation controller is operating normally.
Typical application scenarios:
- Packaging machine operator stations with recipe management
- Automotive assembly equipment visualization terminals
- CNC machine control panels using B&R automation platforms
- Process skids requiring local operator monitoring and control
5AP920-1505.01
Transparency SOP: QA & Testing
Industrial touch panels require display, touch, and communication verification.
Quality inspection process:
1. Hardware Identification
- Confirm B&R product label.
- Verify exact model: 5AP920-1505.01.
- Check revision and serial information.
2. Display Evaluation
- Test LCD brightness.
- Check for dead pixels.
- Verify backlight operation.
- Inspect front glass condition.
3. Touchscreen Testing
- Verify resistive touch response.
- Check full-screen calibration.
- Confirm no dead touch areas.
4. Interface Verification
- Test USB ports.
- Confirm 24 VDC power operation.
- Verify Automation Panel Link compatibility.
5. Documentation
- Record test results.
- Document cosmetic condition.
- Assign warranty classification.
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Assuming Any 15-Inch HMI Is a Direct Replacement
Physical dimensions are only part of the requirement.
Verify:
- Panel cutout dimensions
- Communication interface
- Visualization software compatibility
- Mounting depth
A generic 15-inch touchscreen may not fit the existing B&R architecture.
⚠️ Trap #2: Ignoring Touchscreen Technology Differences
The 5AP920-1505.01 uses an analog resistive touchscreen.
PRO TIP: Capacitive replacement panels may look similar but can require different software handling, environmental considerations, and mounting changes.
⚠️ Trap #3: Forgetting Panel Link and PPC300 Compatibility
This Automation Panel supports optional B&R expansion through Automation Panel Link and PPC300 insert cards.
Before replacement, confirm:
- Installed expansion hardware
- Cable configuration
- Existing controller connection method
Dynamic FAQ
Q1. What is the B&R 5AP920-1505.01 used for?
The B&R 5AP920-1505.01 is an Automation Panel 900 industrial HMI designed for machine operator interfaces, visualization, and control applications.
Q2. What size display does the 5AP920-1505.01 have?
It features a 15-inch TFT color display with 1024 × 768 XGA resolution.
Q3. What type of touchscreen does the 5AP920-1505.01 use?
The panel uses an analog resistive touchscreen with an Elo serial 12-bit controller.
Q4. Does the 5AP920-1505.01 include a built-in PC?
No. The unit is primarily an Automation Panel display device. Optional PPC300 insert cards can add Panel PC functionality.
Q5. What should buyers verify before purchasing a New Surplus 5AP920-1505.01?
Recommended checks:
- Correct B&R part number
- Display condition
- Touch calibration response
- USB operation
- 24 VDC power test
- Warranty documentation
Q6. Is refurbished 5AP920-1505.01 suitable for industrial spare inventory?
Yes, if the panel has passed LCD, touchscreen, power, and communication testing. For machines with legacy B&R Automation Panel installations, tested replacement panels can reduce downtime during unexpected HMI failures.
