Description
Product Introduction & Engineering Value
The B&R 5P81 is part of the Automation PC 810 industrial computer platform, designed as a control-level computing unit for demanding automation applications. It combines industrial PC hardware with interfaces required for machine control, visualization, and communication tasks.
For plants running mature B&R automation systems, replacing an APC810 is not simply a computer swap. Hardware configuration, storage media, Automation Runtime environment, fieldbus interfaces, and visualization software must all match the original machine design. Maintaining a tested 5P81 spare can significantly reduce recovery time after an industrial PC failure.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Product Family | Automation PC 810 |
| Model Reference | 5P81 |
| Computer Type | Industrial Box PC |
| Supply Voltage | 24 VDC |
| CPU Platform | Intel Core / Celeron class processors depending on configuration |
| Memory | DDR2 SO-DIMM configurations depending on CPU board |
| Ethernet Ports | 2 × 10/100/1000 Mbps Ethernet |
| Serial Interfaces | Up to 2 × RS232 |
| USB Interfaces | Up to 5 × USB 2.0 |
| Display Interface | DVI / Smart Display Link depending on configuration |
| Expansion Slots | PCI / PCI Express variants available |
| Storage Options | CompactFlash, HDD, or SSD depending on build |
| Cooling Method | Industrial passive heatsink cooling |
| Operating Temperature | Typically 0°C to +55°C |
Field Application & The “Trench” Experience
A pharmaceutical packaging line experienced repeated machine stoppages after the operator interface computer began freezing during production changeovers. The PLC I/O modules remained online, but the HMI visualization and recipe management functions became unavailable.
The maintenance team initially investigated software corruption. After reviewing system logs and hardware diagnostics, engineers identified aging industrial PC hardware as the failure source. A tested B&R 5P81 APC810 replacement was installed, the original application image was restored, and the machine returned to production.
The field lesson: industrial PCs are often overlooked because they sit above the control layer. When they fail, the entire machine operation can stop.
Typical application scenarios:
- Packaging machines running B&R Automation Runtime and visualization
- CNC systems requiring industrial PC-based control platforms
- Assembly lines with integrated HMI and motion coordination
- Production cells using PCI-based fieldbus expansion cards

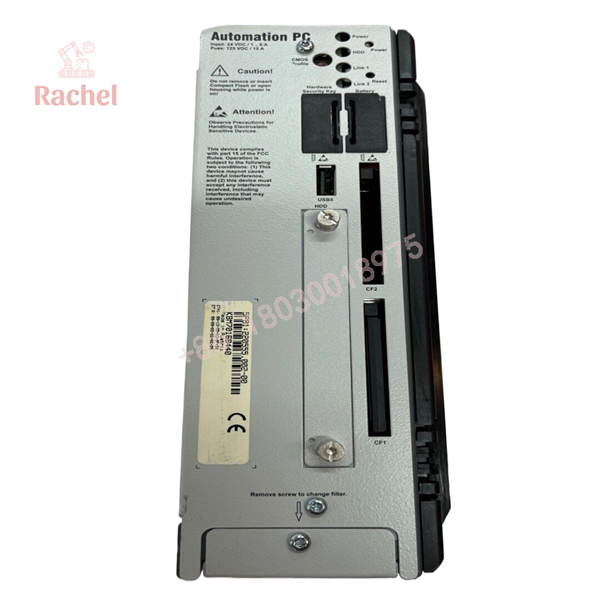

5P81

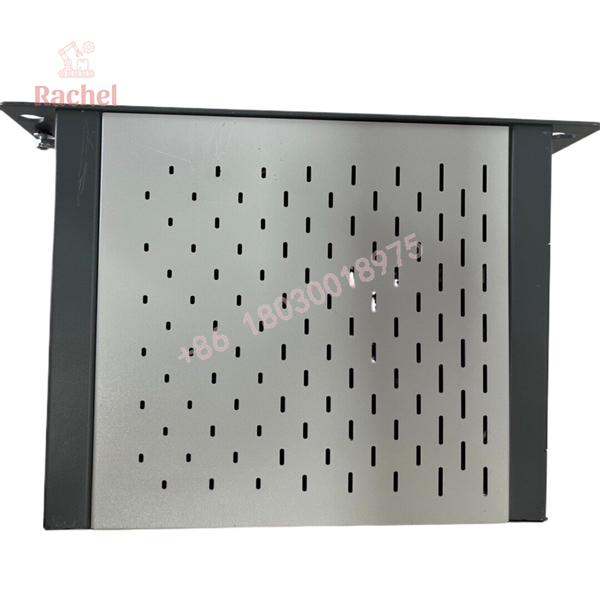

5P81

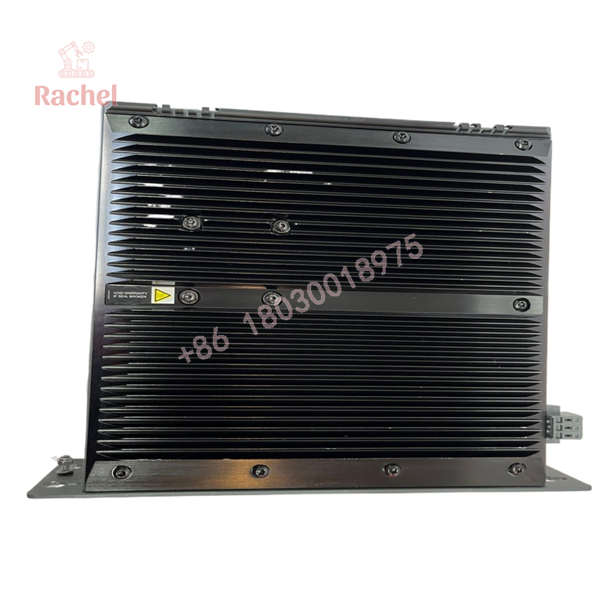

5P81
Transparency SOP: QA & Testing
A replacement industrial PC requires system-level verification.
Inspection and qualification process:
1. Hardware Identification
- Confirm B&R product marking.
- Verify complete 5P81 configuration code when available.
- Check CPU board and expansion configuration.
2. Electrical Testing
- Verify 24 VDC power input.
- Confirm startup sequence.
- Check power regulation stability.
3. Computer Function Testing
- Test BIOS access.
- Verify RAM recognition.
- Check storage device operation.
- Validate Ethernet communication.
- Test display output.
4. Automation Validation
- Confirm Automation Runtime compatibility.
- Verify application image loading.
- Check communication interfaces.
5. Documentation
- Record configuration details.
- Store test results.
- Classify unit condition:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Ordering Only “5P81” Without the Complete Configuration
The 5P81 designation identifies the Automation PC 810 family. The complete part reference determines CPU, memory, expansion slots, and installed options.
PRO TIP: Always compare:
- CPU board
- RAM size
- Storage media
- PCI/PCIe configuration
- Firmware environment
⚠️ Trap #2: Forgetting the Storage Image
A replacement APC810 hardware unit does not automatically contain the original machine software.
Before replacement:
- Backup CompactFlash or HDD image
- Save Automation Studio project
- Document Windows/application versions
⚠️ Trap #3: Ignoring Battery-Backed Retain Memory
Some APC810 configurations include battery-backed SRAM for retained machine data.
Before removing a failed unit:
- Verify retain variables
- Confirm backup procedures
- Check battery condition
Loss of retained parameters can create unexpected machine behavior.
Dynamic FAQ
Q1. What is the B&R 5P81 used for?
The B&R 5P81 is an Automation PC 810 industrial computer platform used for machine control, HMI visualization, industrial communication, and automation processing tasks.
Q2. Is the 5P81 a PLC controller?
Not in the traditional PLC hardware sense. It is an industrial PC platform that can run B&R automation software environments and perform control, visualization, and data-processing functions.
Q3. Are all 5P81 units identical?
No. The 5P81 family includes multiple APC810 configurations with different CPU boards, memory sizes, expansion options, and storage arrangements.
Q4. Can a modern industrial PC directly replace a B&R 5P81?
Not always. A replacement requires checking:
- Automation Runtime compatibility
- Fieldbus interfaces
- PCI/PCIe cards
- Software licensing
- Mechanical installation
Q5. What should buyers verify before purchasing a New Surplus 5P81?
Recommended checks:
- Complete B&R part number
- CPU configuration
- Memory capacity
- Storage media condition
- Ethernet operation
- Warranty coverage
Q6. Is refurbished 5P81 suitable for critical production equipment?
Yes, if the unit has passed hardware diagnostics, communication testing, and application compatibility checks. For legacy APC810 installations, tested refurbished units are commonly maintained as emergency replacement inventory.
