The B&R 7CP476-010.9 is a high-performance Central Processing Unit (CPU) module belonging to the popular B&R System 2003 / 2005 automation platform. Designed for compact control machinery, automated manufacturing lines, and process equipment, this CPU manages complex cyclic and time-critical control tasks with deterministic precision.
Programmed via B&R Automation Studio, the 7CP476-010.9 coordinates local I/O modules across the backplane bus while communicating with operator panels and secondary nodes via onboard serial and fieldbus interfaces. In our field experience, replacing a degraded 7CP476-010.9 module restores machine execution, resolving intermittent CPU STOP conditions, memory parity errors, and backplane communication timeouts without requiring control cabinet modification.
Key Technical Specifications
| Parameter | Value |
| Part Number | 7CP476-010.9 |
| Manufacturer | B&R Industrial Automation (Bernecker + Rainer) |
| System Family | B&R System 2003 / System 2005 |
| Module Type | Central Processing Unit (CPU) |
| Onboard Interfaces | RS232 Serial / CAN Bus / Network Interface (depending on sub-variant) |
| Memory Architecture | RAM / Flash Memory (expandable via application memory card) |
| Status Indicators | LEDs for RUN, ERROR, BATTERY, and Interface Activity |
| Operating Temperature | 0°C to +55°C |
Application Scenarios & The “Trench” Experience
A high-speed plastics blow-molding machine stopped unexpectedly mid-cycle. The main B&R System 2003 rack showed a solid red ERROR LED on the central CPU, and operator touchscreen panels reported a lost controller link. Cycle restarts failed as the CPU defaulted immediately into a diagnostic halt state.
- Packaging & Converting Machinery – High-Speed Logic – Executes complex motion profile interlocks and timing routines.
- Plastics & Injection Molding – Sequence Control – Manages multi-zone temperature loops and hydraulic valve timing.
- Material Handling & Robotics – Distributed Station PLC – Coordinates conveyor indexing and sensor feedback across CAN bus sub-networks.
Diagnostics identified an internal RAM degradation issue within the 7CP476-010.9 CPU card. Maintenance technicians swapped the battery and memory module into a bench-tested replacement 7CP476-010.9 CPU unit, seated it in the backplane rack, and powered on the system. The CPU booted cleanly into RUN mode, clearing all machine faults instantly.
Transparency SOP: Quality Assurance & Testing
Every 7CP476-010.9 CPU module undergoes standard functional verification before entering inventory:
- Inbound Mechanical & Pin Inspection: Checking backplane edge connector pins, housing clips, slot latches, and front interface ports for physical damage.
- Power-On & Bootloader Diagnostics: Verifying system boot, power supply stability, internal battery backup circuitry, and status LED state transitions.
- Communication Port Validation: Exercising serial (RS232) and CAN communication channels using Automation Studio test tools to verify connection stability.
- Live Backplane I/O Load Test: Mounting the CPU into a System 2003 test rack loaded with digital and analog I/O cards to run cyclic program loops under thermal load.
- ESD Protective Packaging: Sealing the CPU inside static-shielded ESD packaging with custom shock-absorbing foam inserts for transit.

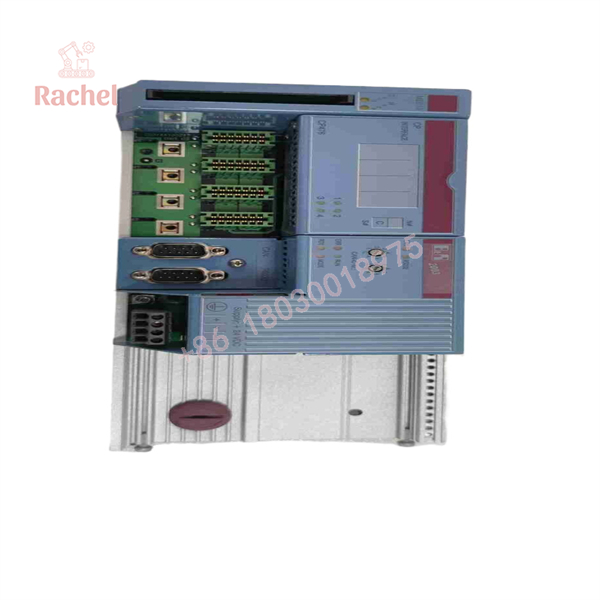

7CP476-010.9

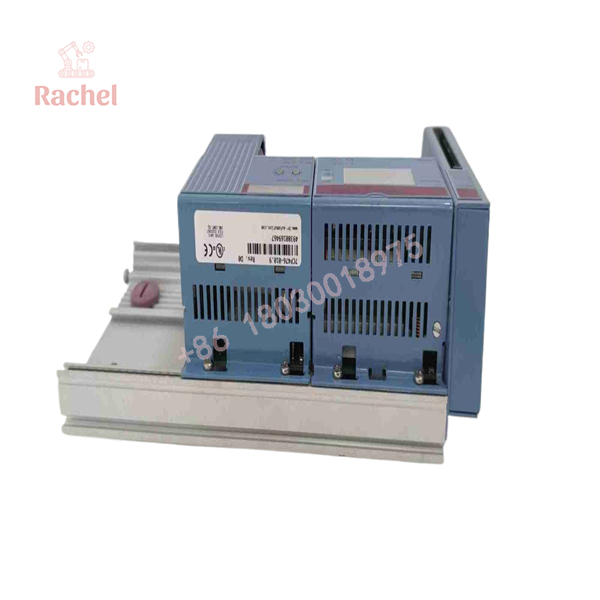

7CP476-010.9
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Transfer Application Memory Card & Battery: The 7CP476-010.9 relies on external memory modules or lithium backup batteries to retain runtime parameters and application programs. Always transfer your original memory card and fresh battery to the replacement CPU prior to startup.
- ❗ Verify Baud Rate & Node ID Jumpers/Switches: Check any onboard node selector switches or software configuration files. Mismatched CAN bus baud rates or duplicate node IDs will cause network initialization failures upon boot.
- ⚠️ Always Isolate Power Before Card Extraction: Never pull or insert the CPU card while the sub-rack power supply unit (PSU) is energized. Hot-swapping backplane CPUs can cause electrical arc damage to gold edge connectors.
Frequently Asked Questions (FAQ for Conversion)
Q: What software package is used to program the B&R 7CP476-010.9 CPU?
A: The module is configured and programmed using B&R Automation Studio.
Q: Will replacing this CPU erase my machine’s program?
A: No, provided you transfer your original application memory card (or reload the program backup from Automation Studio) to the replacement 7CP476-010.9 unit.
Q: Is the 7CP476-010.9 still manufactured by B&R?
A: The System 2003 series is a legacy platform. Replacements are primarily available through tested industrial surplus and reconditioned automation hardware channels.
Q: Can I replace this unit while the system power is turned on?
A: No. System power must be turned off before replacing backplane CPU modules.
Q: What warranty is provided with this surplus B&R CPU card?
A: Every tested 7CP476-010.9 module comes backed by our full 12-month replacement warranty.
