Description
Product Introduction & Engineering Value
A failed PLC CPU is rarely a simple component replacement. The engineering challenge is preserving the existing application environment, communication settings, and machine behavior. The B&R 7CP476.60-1 is a System 2003 central processor designed for industrial control applications requiring integrated memory, serial communication, CAN networking, and modular expansion capability.
Many machines built around B&R 2003 controllers remain in service because the original motion, sequence, and HMI software represents years of validated production knowledge. Keeping a compatible 7CP476.60-1 spare can reduce migration risk and avoid unnecessary machine redesign.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model Number | 7CP476.60-1 |
| Controller Family | System 2003 |
| CPU Type | 2003 CPU |
| Memory | 750 kB SRAM |
| Flash Memory | 1.5 MB FlashPROM |
| Operating Voltage | 24 VDC |
| Power Consumption | 12.5 W |
| Serial Interface | 1 × RS232 |
| CAN Interface | 1 × CAN, electrically isolated |
| CAN Function | Network-capable communication |
| Expansion Slots | 4 screw-in module slots |
| Expansion Bus | System bus for additional modules |
| Certifications | CE, UKCA, cULus HazLoc Class I Division 2 Groups ABCD |
Field Application & The “Trench” Experience
A packaging machine manufacturer operating a high-speed production line began experiencing intermittent controller stops after years of continuous operation. The machine builder still relied on the original B&R System 2003 platform because the control software had been validated through multiple production upgrades.
Initial troubleshooting focused on sensors and drive communication because the machine stopped during complex motion sequences. However, diagnostic checks showed inconsistent CPU memory behavior and communication interruptions.
The maintenance team replaced the aging processor with a tested B&R 7CP476.60-1 unit. After restoring the application program, verifying CAN communication, and checking expansion module recognition, the machine returned to production.
The field lesson: older PLC systems often fail at the processor level after years of thermal cycling and memory wear. A compatible spare CPU can be the fastest recovery path.
Typical application scenarios:
- Printing and converting machinery control
- Packaging line sequence control
- Industrial machine OEM controllers
- CAN-based distributed automation systems

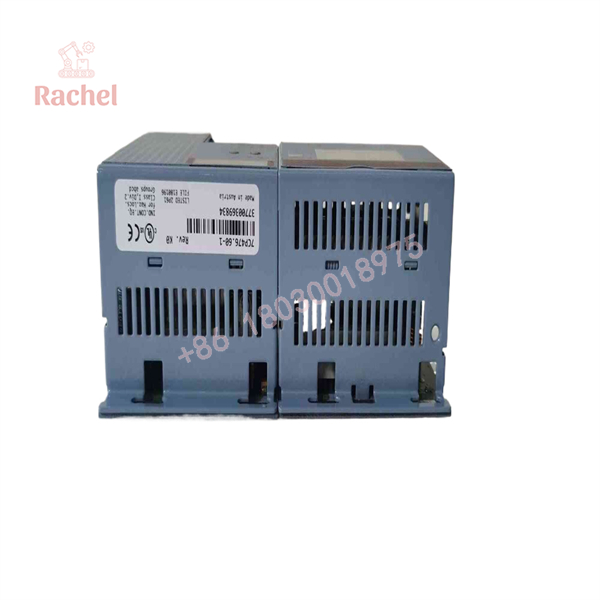

7CP476.60-1

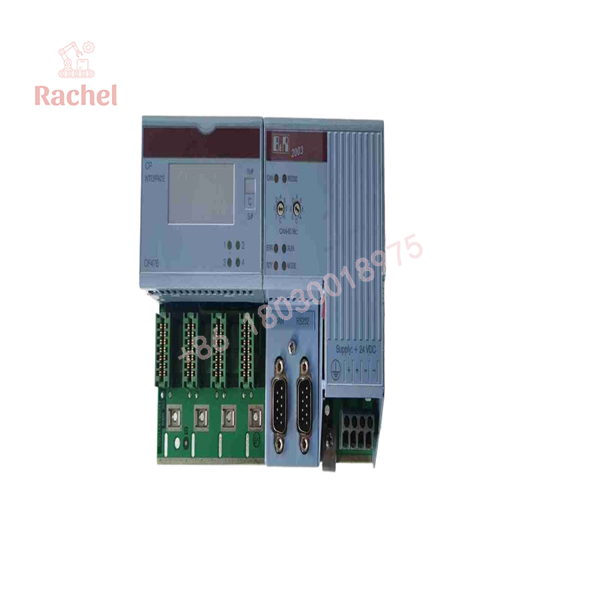

7CP476.60-1
Transparency SOP: QA & Testing
CPU modules require more than a power-up test. Memory and communication functions must be verified.
Testing procedure:
1. Visual and Identification Inspection
- Confirm B&R label and model number.
- Verify CPU type: 7CP476.60-1.
- Inspect connectors and housing condition.
2. Power Verification
- Apply regulated 24 VDC supply.
- Check startup behavior.
- Verify status indicators.
- Confirm power consumption.
3. Memory Testing
- Verify SRAM operation.
- Check FlashPROM accessibility.
- Confirm stable program storage behavior.
4. Communication Testing
- Test RS232 communication.
- Verify CAN interface operation.
- Check electrically isolated CAN functionality.
5. Expansion Verification
- Test system bus communication.
- Verify expansion module recognition.
6. Final Documentation
- Record serial number.
- Save diagnostic results.
- Classify inventory condition:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Replacing the CPU Without Confirming Firmware Compatibility
A replacement CPU may power up but fail to run the original application if the runtime environment does not match.
Verify:
- Automation Runtime version
- Application backup
- Hardware revision
- Target configuration
PRO TIP: Always capture the existing CPU software environment before removing the original controller.
⚠️ Trap #2: Forgetting CAN Network Parameters
The integrated CAN interface is often part of the machine communication architecture.
Check:
- CAN node address
- Baud rate
- Connected devices
- Network termination
A CPU replacement without restored CAN settings can appear healthy while the machine remains offline.
⚠️ Trap #3: Ignoring Battery Backup Condition
Older B&R CPU systems may rely on battery-supported memory retention.
Inspect:
- Battery condition
- SRAM retention behavior
- Stored program integrity
A weak battery can create startup problems after power loss.
Dynamic FAQ
Q1. What is the B&R 7CP476.60-1 used for?
The B&R 7CP476.60-1 is a System 2003 CPU module used for industrial machine control, program execution, communication management, and expansion module control.
Q2. Is the 7CP476.60-1 a complete PLC system?
No. It is the central processing unit of a B&R System 2003 controller platform. Additional I/O, communication, and expansion modules may be required depending on the machine configuration.
Q3. What memory capacity does the 7CP476.60-1 provide?
The CPU includes 750 kB SRAM and 1.5 MB FlashPROM for application storage and operation.
Q4. What communication interfaces are available on this CPU?
The module provides:
- One RS232 interface
- One electrically isolated CAN interface
The CAN interface supports network communication with connected automation devices.
Q5. What should buyers verify before purchasing a New Surplus 7CP476.60-1?
Recommended checks:
- Exact B&R part number
- Hardware revision
- Firmware/runtime compatibility
- SRAM retention condition
- CAN communication test results
- Expansion bus verification
- Warranty coverage
Q6. Is refurbished 7CP476.60-1 suitable for production equipment?
Yes, if the CPU has passed memory testing, communication verification, and application compatibility checks. Refurbished System 2003 CPUs are commonly maintained as replacement assets for legacy machines where redesign would create unnecessary downtime.
