B&R 8LSA45.R0030D000-0 Servo Motor 3000 RPM 1.9kW

Description

Product Introduction & Engineering Value

The B&R 8LSA45.R0030D000-0 is a 8LS series synchronous servo motor designed for medium-duty precision motion applications. It provides a 3000 rpm rated speed, approximately 6.16 Nm rated torque, and resolver feedback for closed-loop operation with compatible B&R ACOPOS motion controllers.

In production equipment, servo motor replacement is rarely just a mechanical swap. Engineers must confirm torque requirements, feedback compatibility, drive parameters, and shaft configuration. A correct 8LSA45.R0030D000-0 replacement helps preserve existing machine tuning and avoids unnecessary axis redesign.

Technical Specifications

Field Application & The “Trench” Experience

A high-speed converting machine used multiple servo axes for synchronized roller positioning. After several years of operation, one axis began producing intermittent position deviation alarms during acceleration.

The first troubleshooting step focused on mechanical alignment. The coupling, gearbox, and driven roller were inspected, but no excessive wear was found.

Drive diagnostics showed unstable resolver feedback from the motor side. The maintenance team replaced the failed unit with a tested B&R 8LSA45.R0030D000-0, restored the axis parameters, and verified motor identification through the ACOPOS system.

The machine returned to production without changing the mechanical assembly.

The field lesson: when a servo axis loses repeatability, feedback integrity should be checked alongside mechanical components.

Typical application scenarios:

• Printing and web-handling tension control systems
• Packaging machine indexing axes
• Material feeding and positioning equipment
• Precision assembly automation
• Machine tool auxiliary axes

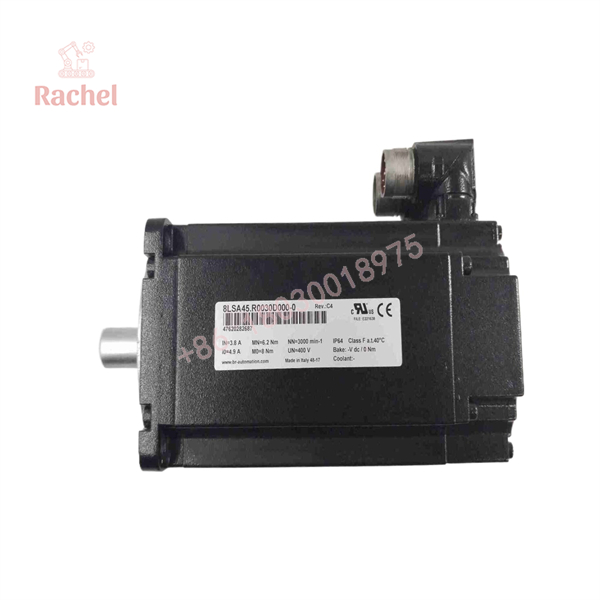

8LSA45.R0030D000-0

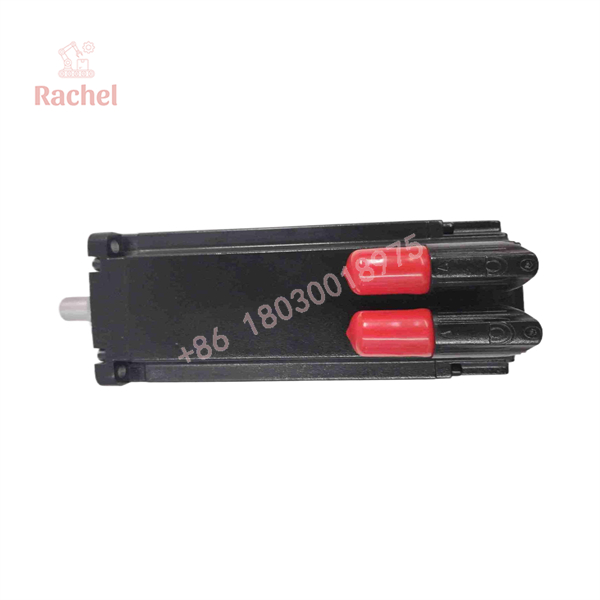

8LSA45.R0030D000-0

Transparency SOP: QA & Testing

Servo motors require electrical, mechanical, and feedback validation before being classified as production-ready spares.

Inspection sequence:

1. Identity Verification

• Confirm B&R nameplate.
• Verify exact model: 8LSA45.R0030D000-0.
• Check connector and shaft configuration.

2. Mechanical Inspection

• Rotate shaft manually.
• Check bearing condition.
• Inspect flange surface.
• Verify housing integrity.

3. Electrical Testing

• Measure phase-to-phase resistance.
• Perform insulation resistance test.
• Check winding balance.
• Verify temperature sensor circuit.

4. Resolver Verification

• Test resolver excitation signals.
• Confirm feedback response.
• Check signal stability.

5. Drive Integration Test

• Connect to compatible B&R servo drive.
• Perform motor recognition.
• Verify direction of rotation.
• Confirm speed response.

6. Documentation

• Record test values.
• Store inspection report.
• Assign inventory condition:
  • New Surplus
  • Refurbished
  • Tested Used

The Veteran’s Tech Trap Guide

⚠️ Trap #1: Replacing Resolver Feedback With Encoder Feedback

The 8LSA45.R0030D000-0 uses resolver feedback.

Before replacement, verify:

• Feedback interface
• ACOPOS drive compatibility
• Motor parameter set

A motor may fit mechanically but fail commissioning if feedback hardware differs.

⚠️ Trap #2: Ignoring Motor Tuning Data

Servo systems depend on stored axis parameters.

Back up:

• Motor identification values
• Velocity loop settings
• Position loop parameters
• Travel limits

PRO TIP: Save the original axis configuration before removing the failed motor.

⚠️ Trap #3: Overlooking Shaft and Mounting Details

Always compare:

• Flange dimensions
• Shaft diameter
• Connector orientation
• Mounting position

Emergency replacements often fail because mechanical details were not checked before shipment.

Dynamic FAQ

Q1. What is the B&R 8LSA45.R0030D000-0 used for?

The B&R 8LSA45. is a synchronous servo motor used in industrial motion systems requiring accurate speed and position control with B&R ACOPOS drives.

Q2. What are the main ratings of this servo motor?

Key specifications include:

• Rated speed: 3000 rpm
• Rated torque: 6.16 Nm
• Rated power: 1935 W
• Rated current: approximately 3.78 A

Q3. Does the 8LSA45.R0030D000-0 include a holding brake?

No. The D000 configuration indicates a motor version without an integrated holding brake. Brake-equipped versions use different ordering codes.

Q4. Which feedback system does this motor use?

This model uses a resolver feedback system, providing closed-loop position and speed feedback to the servo controller.

Q5. What should buyers verify before purchasing a New Surplus 8LSA45.R0030D000-0?

Recommended checks:

• Exact B&R part number
• Resolver compatibility
• ACOPOS drive matching
• Motor winding test results
• Shaft and flange dimensions
• Mechanical condition
• Warranty coverage

Q6. Can a refurbished 8LSA45.R0030D000-0 be installed in production equipment?

Yes. A refurbished motor is suitable when it has passed insulation testing, resolver verification, mechanical inspection, and operational testing with a compatible B&R motion system.
