Core Product Summary
The B&R (Bernecker & Rainer) ECCP70-01 (CP70) is a legacy central processing unit (CPU) module designed for the B&R Multicontrol / MIDI modular industrial automation architecture. Built to coordinate automated machine control tasks, this module serves as a core processing node within rack-based industrial control systems.
The unit features 42 KB of SRAM application memory (supporting roughly 42,000 instructions) and requires a separate PROM for storage. For system communication and programming, the ECCP70-01 is equipped with versatile onboard serial interface connections, including an isolated TTY online port alongside flexible RS-485, RS-232, and TTY communication paths.
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Brand / Manufacturer | B&R (Bernecker & Rainer Industrie-Elektronik) |
| Model / Part Number | ECCP70-01 |
| Controller Platform / Series | Multicontrol (CP70 / Type B CPU) |
| Application Memory | 42 KB SRAM (approx. 42,000 instructions) |
| Memory Storage Requirement | Requires separate PROM for application memory storage |
| Online / Programming Interface | 1x TTY online interface with electrically isolated receiver |
| Standard Serial Interfaces | RS-485 (electrically isolated, network-capable), RS-232 (non-isolated), TTY (isolated receiver) |
| Rack Compatibility | Designed for B&R MULTI and MIDI module racks |
Engineering Selection Highlights
- Multicontrol Architecture Fit: Specifically engineered as a Type B central processor for legacy B&R MULTI and MIDI rack configurations.
- Isolated Serial Connectivity: Features hardware-isolated RS-485 network ports and TTY receiver circuits to minimize electrical noise interference in harsh industrial environments.
- Processor Memory Scaling: Includes 42 KB of onboard SRAM layout capacity for runtime instruction execution.
- Legacy System Maintenance: Serves as a direct replacement component for maintaining older B&R Multicontrol automation lines without requiring complete cabinet rewiring.
ECCP70-01

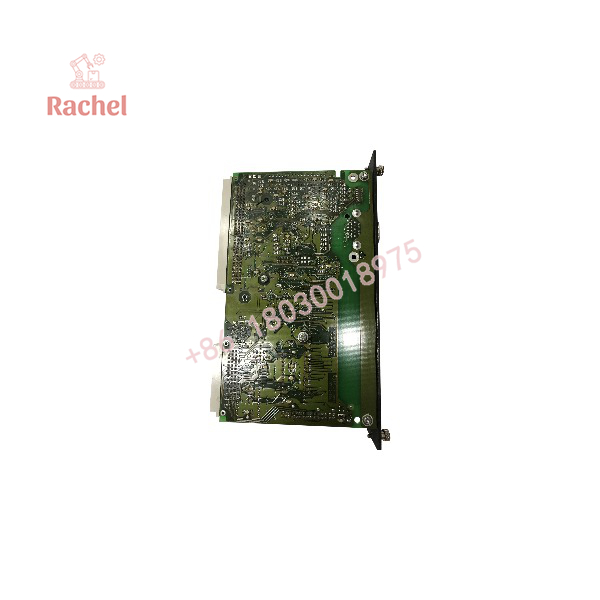

ECCP70-01
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Rack Enclosure | B&R MULTI or MIDI Module Racks | Slides directly into dedicated processor slots on compatible backplanes. |
| Application Storage | External PROM chip | Must be fitted with the corresponding programmed PROM containing system logic. |
| Communication Lines | RS-232, RS-485, or TTY cabling | Used for programming tools, operator displays, or multi-drop network links. |
Dimensions, Mounting & Connection Notes
- Form Factor: Modular rack-mount card designed for insertion into standardized B&R modular control racks.
- Backplane Interface: Edge connector design that routes system power, data paths, and I/O bus signals directly through the rack backplane.
- Front Panel Connections: Access ports for TTY and serial communication lines are positioned on the module front edge for configuration and monitoring access.
Detailed Product Overview
The B&R (Bernecker & Rainer) ECCP70-01 is a mature central processing unit card built for the Multicontrol (CP70) system family. Designed to meet the modular demands of factory automation control, it combines processing execution with flexible multi-standard serial communication links.
The hardware architecture relies on 42 KB of internal SRAM to execute control instructions, requiring a separate PROM to permanently hold user application files. Communication flexibility is provided via integrated RS-485 (electrically isolated for networking), RS-232, and TTY interfaces. Because of its specific hardware profile, the ECCP70-01 is primarily utilized by engineering teams maintaining, servicing, or extending legacy B&R Multicontrol setups.
Applications & System Role
The B&R ECCP70-01 operates as the central processing brain within legacy B&R Multicontrol industrial automation frameworks. Positioned in primary rack slots, it executes control logic programs, coordinates data flow between modular digital/analog I/O cards, and communicates with external operator panels or supervisory stations via its onboard serial options. It is typically found supporting older machinery cells, production lines, and discrete manufacturing equipment utilizing the B&R Multicontrol platform.
FAQ
What type of module is the B&R ECCP70-01?
The ECCP70-01 is a central processing unit (CPU) module belonging to the B&R Multicontrol (CP70) platform.
What is the application memory capacity of this CPU?
It features 42 KB of SRAM application memory, which accommodates approximately 42,000 control instructions.
What communication interfaces are available on the module?
It includes an online TTY port, an isolated network-capable RS-485 port, a non-isolated RS-232 port, and a TTY interface with an isolated receiver.
Which racks are compatible with the ECCP70-01?
The module is designed to slot directly into B&R MULTI and MIDI modular control racks.
Does the module require a separate memory component?
Yes, the application memory requires a separate PROM to be installed for program storage.
