Cameron AAP3798102-00130 Maestro Universal Controller

Description

Product Introduction & Engineering Value

When a Maestro compressor control system loses its controller, the important question is not whether a replacement panel can display the same screens. The replacement has to match the controller architecture, configuration environment, I/O communication, and field interfaces. Cameron AAP3798102-00130 is documented as the earlier Gen1 Maestro Universal Controller.

For maintenance teams supporting installed Cameron compressor packages, that distinction matters. The controller provides the operator display while also handling Modbus, Ethernet, CANBus, USB, and RS-232 functions. Cameron documentation also identifies a later Gen2 controller as a direct replacement for the earlier Gen1 design, with compatible configuration files and mounting arrangements.

Technical Specifications

These values come from an engineering specification for the Gen1 controller. Some marketplace listings provide substantially different electrical and environmental figures for this part number, so the controller-specific engineering document should take precedence over generic reseller specifications when planning a replacement.

Field Application & the “Trench” Experience

Picture a compressor station where one Maestro controller fails during a scheduled maintenance window. The compressor itself is mechanically serviceable, but the operator interface and controller are no longer available to the control system. Replacing only the display with a generic industrial HMI would not address the underlying problem—the controller has to communicate with the Maestro I/O architecture and the supervisory network.

A maintenance engineer would typically verify the AAP3798102-00130 part number, document the existing configuration, isolate 24 VDC power, preserve field wiring, install the replacement, reload the appropriate configuration, and verify communications before returning the compressor to service.

Specific application scenarios

Centrifugal compressor package control
The controller can serve as the primary operator/control interface for a Maestro Universal compressor package.

Multi-compressor management
The documented architecture includes an RS-485 networking interface for multiple-compressor management.

Compressor station supervisory integration
Ethernet with Modbus TCP and Web Server functionality provides a path for higher-level monitoring and communications.

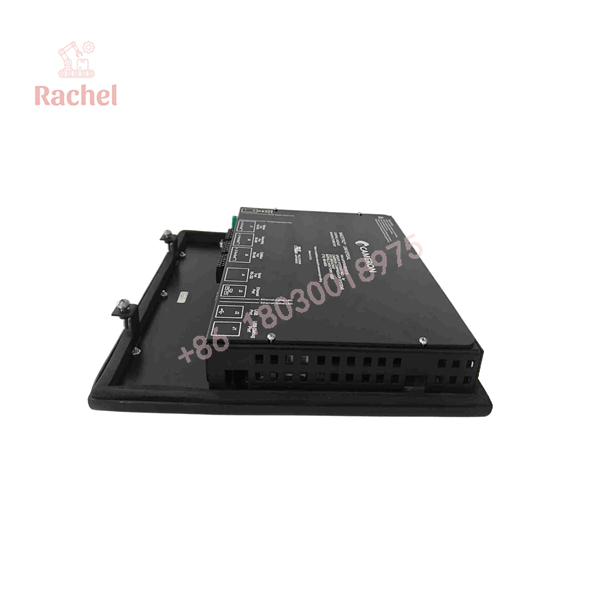

AAP3798102-00130

AAP3798102-00130

AAP3798102-00130

Transparency SOP: QA & Testing

For New Surplus stock, the physical condition should be separated from the functional claim. “Never used” does not automatically mean “recently powered and verified.”

A sensible incoming inspection sequence is:

1. Part-number verification — Confirm the nameplate reads AAP3798102-00130 and verify the hardware generation.
2. Physical inspection — Check the LCD, enclosure, connectors, mounting points, terminal areas, and USB/Ethernet interfaces for storage or handling damage.
3. Power verification — Apply the specified 24 VDC supply under controlled test conditions and check startup behavior.
4. Display test — Confirm LCD initialization and operator-interface functionality.
5. Communication test — Verify applicable Ethernet/Modbus and RS-485 functions using the appropriate test setup.
6. Configuration check — Confirm that the unit accepts the applicable Maestro configuration before shipment when the required test environment is available.

The manufacturer’s engineering documentation states that the controller has no serviceable components and must be returned to the factory for service, which is an important consideration when evaluating used or refurbished inventory.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating it as an ordinary HMI

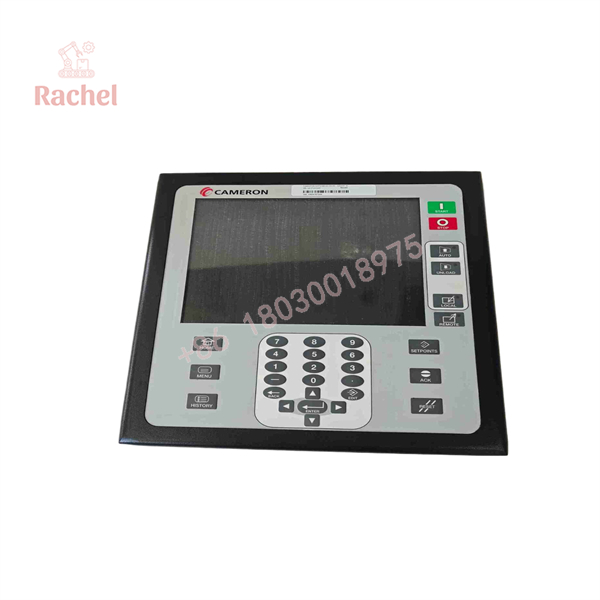

AAP3798102-00130 is more than a display terminal. The Gen1 controller combines the operator display with control-system communications and I/O architecture. Replacing it with a generic HMI does not reproduce those functions.

⚠️ Trap #2 — Mixing Gen1 and Gen2 documentation

The later Gen2 controller is identified separately in the engineering documentation. Although it is described as a direct replacement and shares configuration-file compatibility and mounting characteristics, the hardware interfaces are not identical. Gen2 adds Ethernet and RS-485 capabilities. Verify the actual installed hardware before assuming port-for-port equivalence.

PRO TIP: Before removing the old controller, photograph the wiring, record network settings, back up the configuration, and document the existing firmware/software environment. This takes minutes. Reconstructing an undocumented compressor-control configuration can take considerably longer.

⚠️ Trap #3 — Ignoring enclosure requirements

The documented IP66/NEMA 4X protection applies when the controller is mounted in the appropriate enclosure. Do not interpret the controller’s rating as permission to install the bare unit in an exposed environment.

Dynamic FAQ

Is AAP3798102-00130 a Cameron Maestro Universal Controller?

Yes. Engineering documentation identifies AAP3798102-00130 as the Gen1 Maestro Universal Controller.

What power supply does the controller require?

The Gen1 specification calls for 24 VDC ±10%, with rated input power of 30 W and nominal input power of 12 W.

What communications are available?

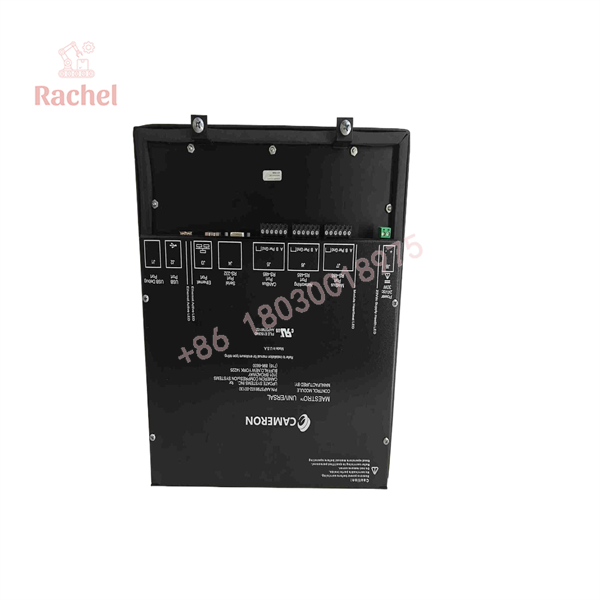

The documented interface set includes RS-485/Modbus RTU, Ethernet/Modbus TCP, CANBus for the I/O module, USB, and RS-232.

Can AAP3798102-00130 be replaced by a later controller?

The engineering documentation identifies a later Gen2 controller as a direct replacement for the Gen1 unit and states that configuration files are compatible. However, the Gen2 hardware has additional communication interfaces, so the actual system wiring and configuration should be checked before replacement.

How should New Surplus AAP3798102-00130 stock be verified?

Confirm the exact part number and hardware generation, inspect the unit for storage damage, power it with the specified 24 VDC supply, verify the display and applicable communication interfaces, and check configuration compatibility. “New Surplus” should describe the item’s condition; it should not be treated as proof of a factory warranty.

What warranty should I expect?

Warranty terms depend on the seller and stock condition. Factory warranty should be confirmed in writing before purchase, particularly because this controller is identified by third-party sources as discontinued. One current reseller listing, for example, separately identifies never-used original-packaging, never-used repackaged, and refurbished conditions rather than treating them as equivalent.
