Dart 123D-C 5.5A DC Motor Speed Controller

Description

Product Introduction & Engineering Value

The Dart Controls 123D-C is a compact low-voltage DC motor speed controller designed for applications requiring adjustable control of permanent-magnet, shunt-wound, and certain universal motors. Its 24/36 VAC input and adjustable DC output make it particularly useful where a conventional 120/240 VAC DC drive would be unnecessarily large or electrically unsuitable.

This is a practical maintenance part rather than a programmable automation controller. There is no PLC-style configuration software to preserve. The critical replacement checks are electrical: input voltage, motor armature voltage, current rating, feedback arrangement, wiring, and the existing control’s adjustment settings.

Technical Specifications

The manufacturer documentation specifies 24–36 VAC operation and a 150 mA to 5.5 A DC output range; published product data gives 0–20 VDC or 0–30 VDC output depending on the input voltage.

The 123D-C also provides adjustable minimum and maximum speed, current limit, acceleration/deceleration functions, line-voltage compensation, transient protection, and an inhibit circuit.

Control Architecture

The 123D-C is intended for permanent-magnet DC, shunt-wound, and some universal motors. Its control scheme converts the low-voltage AC supply into adjustable DC for motor operation.

One important distinction: this is not a regenerative drive. Applications requiring controlled braking energy regeneration should therefore not treat the 123D-C as a drop-in equivalent for a regenerative controller.

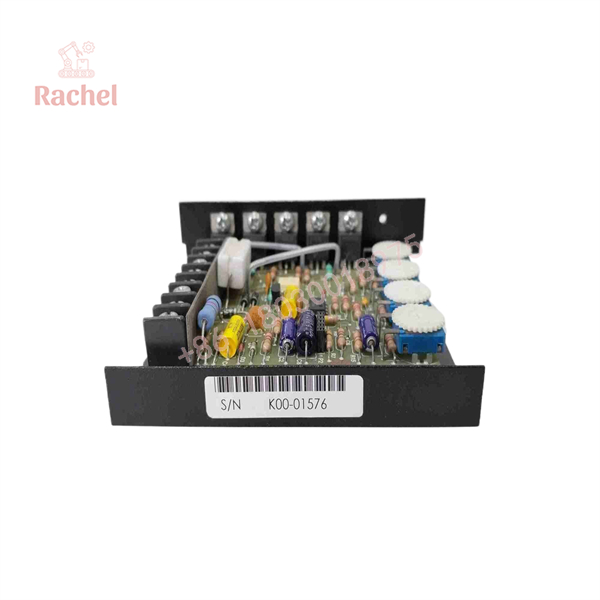

123D-C

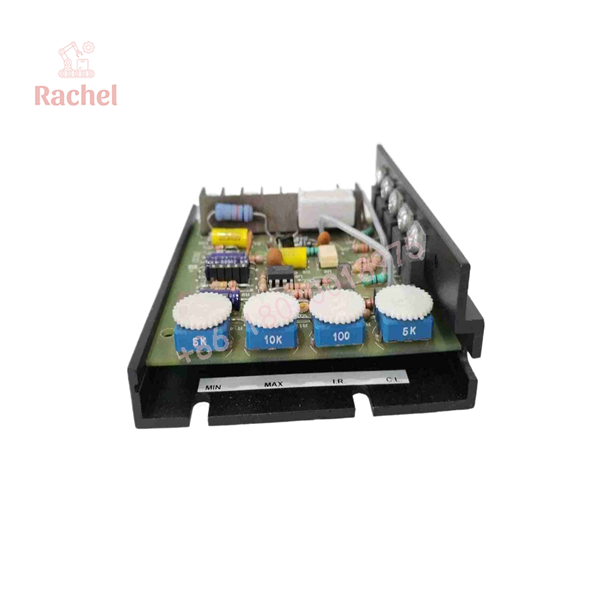

123D-C

Field Application & the “Trench” Experience

A common maintenance situation is an older conveyor or packaging machine using a small DC motor. The motor itself still tests correctly, but the speed control begins producing unstable output or refuses to reach the required speed. The cabinet has limited space, and the original controller is a low-voltage 24/36 VAC design.

The maintenance technician finds a 123D-C already listed as the spare. Before installing it, the technician checks the transformer secondary voltage, motor nameplate current, armature voltage, and potentiometer wiring. The replacement is then mounted, the minimum and maximum speed adjustments are checked, and the machine is returned to service without redesigning the control cabinet.

That is where this controller makes sense: small DC motor applications where electrical compatibility matters more than software functionality.

Niche Application Scenarios

• Small conveyor indexing drives requiring adjustable low-voltage DC motor speed
• Packaging-machine feed mechanisms using permanent-magnet DC motors
• Legacy centrifuge or process-machine auxiliary drives
• Printing and office-equipment mechanisms using fractional-horsepower DC motors
• Exercise-equipment motor controls where a 24/36 VAC supply is already available

Dart’s published 125 Series information specifically lists conveyors, packaging equipment, printers, process equipment, centrifuges, and exercise equipment among suitable applications.

Transparency SOP: QA & Testing

For a replacement 123D-C, a sensible incoming inspection should focus on the electrical control path rather than simply powering it on.

1. Identity check
Verify 123D-C, the manufacturer marking, terminal arrangement, and any option suffix against the original unit.

2. Visual inspection
Inspect the PCB, SCR/power components, terminals, potentiometer connections, mounting slots, and wiring points for contamination, corrosion, heat damage, or previous repair.

3. Input verification
Confirm that the available transformer output is actually within the 24–36 VAC operating range before connecting the controller.

4. Controlled output test
Verify that the controller responds correctly to the speed command and produces the expected adjustable DC output.

5. Load test
Where appropriate equipment is available, test the controller under a representative motor load and verify current-limit behavior.

Dart’s own product literature states that the 125 Series was subjected to 100% full-load testing, while the manufacturer’s current product page offers a refurbished 123D-C with a one-year warranty.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Applying the wrong AC voltage

The 123D-C is the 24/36 VAC version. Do not confuse it with other 125 Series models intended for 120/240 VAC input. The published model-selection table distinguishes the 123D-C’s 24–36 VAC input from the higher-voltage 125D variants.

⚠️ Trap #2 — Ignoring motor current

A 5.5 A rating does not mean every motor can be connected without further consideration. Verify the motor’s rated armature current and the controller’s current-limit setting. The manual states that the 123D variable-speed control covers 150 mA through 5.5 ADC, with higher current possible under specific heatsinking conditions.

PRO TIP: Record the original MIN, MAX, and CURRENT LIMIT trimpot positions before removing a failed controller. Those settings provide a useful starting point during recommissioning.

⚠️ Trap #3 — Assuming every signal-input option works

The 123D-C has option limitations. The documentation specifically notes that the -55H option cannot be used on the 123D-C series. Do not assume an option card listed for the broader 125D family is automatically compatible with this model.

Dynamic FAQ

What is the Dart Controls 123D-C?

It is a low-voltage DC motor speed controller in Dart Controls’ 125 Series. It accepts 24 or 36 VAC and provides adjustable DC output for compatible motors.

What is the maximum current rating?

The published continuous armature-current rating is 5.5 A DC. The manufacturer’s manual also discusses operation up to 10 A with an appropriate external heatsink under specified conditions.

Does the 123D-C include a speed potentiometer?

Yes. Dart’s product listing states that the refurbished 123D-C comes complete with a speed potentiometer kit.

Is the 123D-C regenerative?

No. It is a non-regenerative DC drive.

Is a New Surplus 123D-C the same as a refurbished unit?

No. New Surplus normally means unused original inventory that has been stored rather than newly manufactured. Refurbished means the unit has undergone some level of inspection, repair, cleaning, or testing. The exact process should be confirmed with the supplier. Dart itself currently lists a refurbished 123D-C separately.

What warranty is available?

Warranty depends on the seller and stock condition. Dart currently lists its refurbished 123D-C with a one-year warranty; other distributors may provide different terms.
