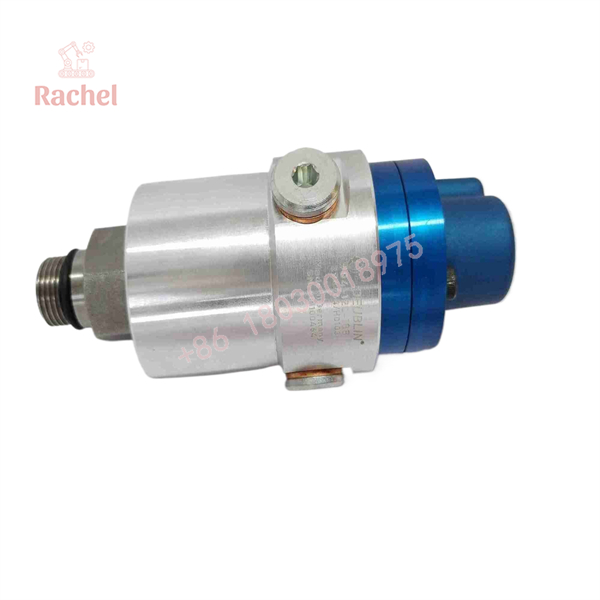

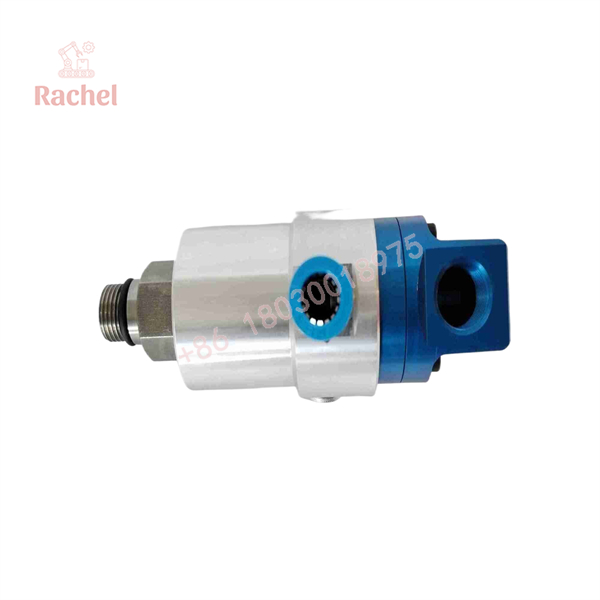

Deublin 904-120-188 Rotating Union

Description

Product Introduction

The Deublin 904-120-188 is a heavy-duty industrial rotating union engineered for high-speed automated machining centers, indexing tables, and clutch/brake assemblies. It forms a leak-free fluid bridge between stationary supply lines and rapidly spinning mechanical components.

Built with micro-lapped silicon carbide seal faces, this rotary joint handles continuous high pressure without burning up from friction heat. Unlike lower-tier seals that weep oil and drop pressure, its balanced seal configuration maintains tight tolerances across high speeds and thermal expansion cycles.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A high-volume automotive parts plant hit a hard wall when a worn rotary union on a 5-axis CNC machining center failed mid-shift. Hydraulic oil sprayed past the worn lip seal, losing clamping pressure on a 40,000 engine block casting and instantly faulting out the main spindle interlock. Installing a fresh Deublin 904-120-188 restored full holding pressure, ending the oil leaks and preventing a 3,000-per-hour downtime catastrophe.

• CNC Machine Tool Spindles – Feeds actuation pressure to hydraulic power chucks and tool unload cylinders.
• Clutch & Brake Assemblies – Delivers fast air or hydraulic pulses on high-duty cycle stamping presses.
• Rotary Indexing Tables – Drives automated pallet changers with reliable air actuation at high cycle rates.
• Plastic & Rubber Calenders – Transmits hydraulic pressure into spinning rolls for dynamic gap positioning.

904-120-188

904-120-188

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we bench test all surplus rotating joints:

1. Inbound Physical Audit: Check critical rotor threads, seal faces, snap rings, and mounting ports for impact damage or manufacturing flaws.
2. Precision Runout Check: Mount the rotor in a test lathe and verify shaft runout with a dial indicator to ensure vibration-free rotation.
3. Pneumatic / Hydraulic Pressure Hold Test: Cap ports and pressurize the union to maximum rating for 30 minutes to verify zero drop across mechanical seals.
4. Smooth-Rotation Torque Check: Rotate the housing by hand to confirm smooth, binding-free bearing movement and proper seal preload.
5. Anti-Corrosion Sealed Packaging: Apply protective port plugs, wrap in rust-inhibiting film, and box with shock-mitigating foam.

The Veteran’s Tech Trap Guide

• ⚠️ Never Support the Housing with Rigid Pipe: Do not thread hard steel piping directly into both ports and lock the housing down tight. The union must be allowed to “float” slightly on flexible hoses; otherwise, piping stress will side-load the internal bearings and destroy the seal faces in hours.
• ❗ Flush Your Lines Before Installation: Contaminants like metal shavings or pipe tape fragments will instantly score the micro-lapped seal faces. Flush all hydraulic and pneumatic supply lines thoroughly before bolting the union down.
• ⚠️ Watch Out for Dry-Running: Running the union at high RPM without media flow or seal lubrication builds up extreme frictional heat. Verify media presence before initiating spindle rotation.
• ❗ Never Over-Torque Rotor Threads: Use a calibrated torque wrench when threading the rotor into the spindle shaft. Over-tightening deforms the precision rotor journal and causes seal misalignment.

Frequently Asked Questions (FAQ)

Q: Is the Deublin 904-120-188 suitable for high-pressure coolant through spindle (CTS) applications?

A: No. The 904 series is primarily designed for air and hydraulic media applications. For abrasive filtration cutting fluids, you need a dedicated coolant-union series like the Deublin 1117 or 1109 series.

Q: Can this rotary joint be rebuilt using a standard Deublin repair kit?

A: Yes. The 904-120-188 features a field-serviceable design. You can swap out the seal cart, rotor O-rings, and ball bearings using original OEM kit parts.

Q: Does this unit require external oiling or lubrication ports?

A: The internal precision ball bearings are factory-greased and sealed for life, while the mechanical seals rely on the operating hydraulic fluid or filtered air-line mist for lubrication.

Q: What is the warranty on this surplus unit?

A: We back this 904-120-188 unit with a full 12-month replacement warranty from the delivery date.

Q: How do I know if this unit is genuine Deublin stock?

A: All our stock features laser-etched OEM part markings, sharp machining tolerances, and original manufacturing serial stamps. We do not source unbranded knockoffs.
