Description
Core Product Summary
The Doosan DVSC-TT-14C-09 is a Vision AC servo driver manufactured by Doosan Infracore. It is a servo amplifier used to control an AC servo motor in Doosan CNC and related machine-tool applications.
The drive is rated for an AC 200–230 V, 50/60 Hz input and a 1.5/2.0 kW power class. Its Doosan Infracore part number is EZ6DVTT14C, and the unit is identified as a Vision AC servo driver. Published nameplate-style references list the output as rated, but do not provide a complete public current, torque, or control-interface specification for this exact drive.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Doosan Infracore Co., Ltd. |
| Model | DVSC-TT-14C-09 |
| Product type | AC servo driver / servo amplifier |
| Series | Doosan Vision AC Servo Driver |
| Associated part number | EZ6DVTT14C |
| Input voltage | AC 200–230 V |
| Input frequency | 50/60 Hz |
| Power rating | 1.5/2.0 kW |
| Output | Rated |
| Typical application | Doosan CNC machine servo-axis control |
| Weight | 3.7 kg |
The input voltage, frequency, power rating, part number, and weight are identified from published product and nameplate-style references for the DVSC-TT-14C-09.
Engineering Selection Highlights
- The DVSC-TT-14C-09 is an AC servo driver → it is selected to power and control a compatible AC servo motor, not as a standalone controller or PLC.
- Its input rating is AC 200–230 V, 50/60 Hz → the machine’s supply voltage and frequency must fall within this identification before installation.
- The drive is rated 1.5/2.0 kW → the connected servo motor and axis load must be checked against this power class.
- Doosan Infracore part number EZ6DVTT14C is associated with the model → this identifier should be used to verify the correct drive for a Doosan machine.
- The unit is identified for Doosan CNC applications → machine model, axis assignment, and firmware or parameter compatibility should be confirmed from the machine documentation.
- Published references list a 3.7 kg unit weight → this provides a physical identification check for the drive assembly.

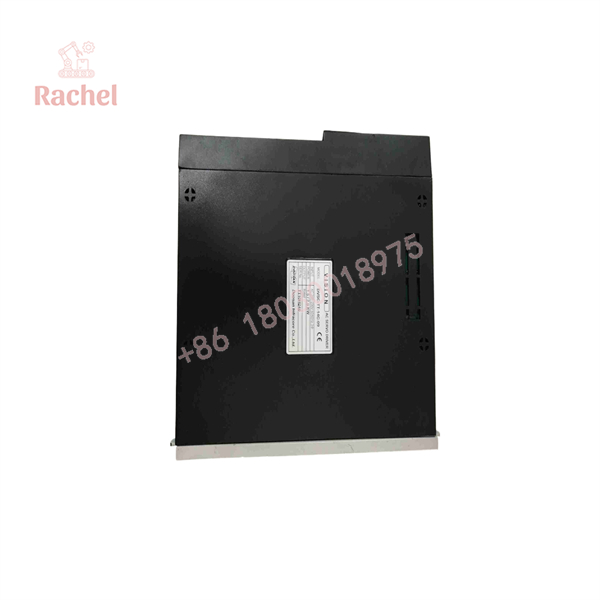

DVSC-TT-14C-09

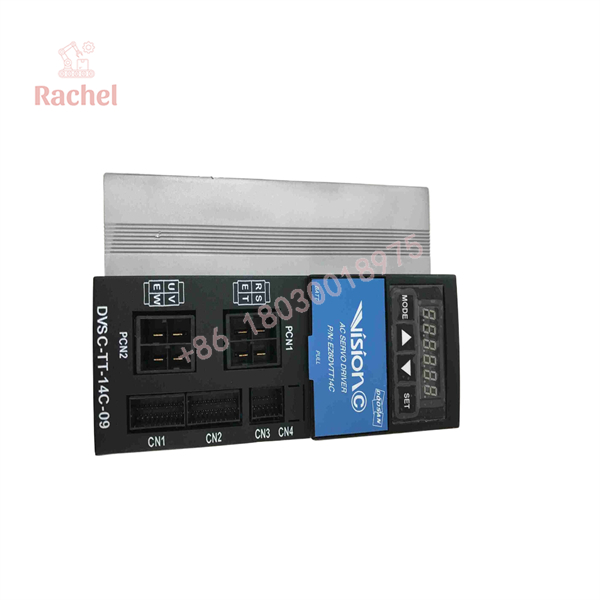

DVSC-TT-14C-09
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Servo motor | Compatible Doosan Vision AC servo motor | The DVSC-TT-14C-09 is an AC servo driver and must be matched to the correct motor and feedback arrangement. |
| Machine platform | Doosan CNC machines | The drive is identified as used on Doosan CNC machines. |
| Power supply | AC 200–230 V, 50/60 Hz | Confirm the machine supply configuration before installation. |
| Power class | 1.5/2.0 kW | The connected axis and motor must match the drive’s power rating. |
| Doosan part identification | EZ6DVTT14C | Use this part number with the model number when verifying replacement suitability. |
The available references identify the drive’s machine application and electrical rating but do not provide a complete motor-model, encoder, connector, or parameter compatibility matrix.
Dimensions, Mounting & Connection Notes
| Item | Verified Data |
|---|---|
| Weight | 3.7 kg |
| Input power | AC 200–230 V, 50/60 Hz |
| Power rating | 1.5/2.0 kW |
| Mounting context | Doosan CNC servo-axis drive |
The available references provide the drive weight and electrical identification but do not publish verified external dimensions, mounting-hole details, terminal assignments, or torque values.
Detailed Product Overview
The Doosan DVSC-TT-14C-09 is a Vision AC servo driver produced by Doosan Infracore. Its function is to control an AC servo motor by converting commanded motion from the CNC control system into the appropriate motor power output. In a machine-tool architecture, it is the amplifier between the CNC control and the servo motor, rather than the machine controller itself.
The drive is rated for AC 200–230 V, 50/60 Hz input and a 1.5/2.0 kW power class. These ratings define the basic electrical envelope for installation and motor matching. The connected servo motor’s power requirement, feedback interface, and axis load must be checked against the drive and the machine documentation; the available public references do not provide a complete motor-compatibility table.
The associated Doosan Infracore part number, EZ6DVTT14C, is an important procurement identifier. It appears alongside the DVSC-TT-14C-09 model number in product references and should be used together with the model number when confirming a replacement for a Doosan CNC machine.
The drive is identified as used on Doosan CNC machines. For service work, the relevant verification points are the machine model, servo-axis assignment, connected motor, encoder feedback arrangement, power wiring, and drive parameters. A matching model number alone does not establish that drive parameters or machine configuration are interchangeable between installations.
Applications & System Role
The DVSC-TT-14C-09 sits in the servo-axis drive layer of a Doosan CNC machine. It receives motion commands from the machine control system, amplifies them for the connected AC servo motor, and uses the motor feedback path for closed-loop axis control.
Its identified application is Doosan CNC equipment, where it drives a servo axis such as a machine-table or tool-motion axis. The exact axis, motor model, encoder type, and parameter configuration must be confirmed from the specific machine’s electrical documentation before replacement.
FAQ
What is the Doosan DVSC-TT-14C-09?
The Doosan DVSC-TT-14C-09 is a Vision AC servo driver manufactured by Doosan Infracore for servo-axis control in Doosan CNC machines.
What is its input voltage?
It is rated for AC 200–230 V, 50/60 Hz input power.
What power rating does it have?
The drive is identified with a 1.5/2.0 kW power rating.
What is the Doosan part number?
The associated Doosan Infracore part number is EZ6DVTT14C.
Is it a CNC controller?
No. It is an AC servo driver or servo amplifier. The CNC control system provides the motion commands, while the drive powers and controls the servo motor.
Which machines use this drive?
Published references identify it as used on Doosan CNC machines. The exact machine model and servo-axis application should be confirmed from the machine documentation.
How much does it weigh?
The drive is listed with a weight of 3.7 kg.
