Eaton XP-503-21-A10-A00-1V Multi-Touch Panel PC

Description

Product Introduction

The Eaton XP-503-21-A10-A00-1V is a high-performance 21.5-inch industrial panel PC engineered for complex plant visualization and machine control. Combining a scratch-resistant glass front with a heavy-duty aluminum die-cast housing, it delivers real-time HMI functionality and edge-computing capability directly on the factory floor or inside OEM machine consoles.

Unlike standard commercial touch displays, the XP-503 series features a rugged fanless design built to withstand high vibration, ambient dust, and continuous 24/7 operating cycles. Its projected capacitive (PCT) multi-touch screen supports multi-finger gesture control—such as pinch-to-zoom and two-hand swipe safety confirmations—without requiring mechanical pushbuttons or external keyboards.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 11:30 PM on a Friday night during a high-volume packaging line run. An operator drops a heavy steel wrench against the front glass panel of the main conveyor IPC terminal. The glass cracks, touch response dies completely, and the entire packaging cell halts in an emergency fault state because safety confirmations cannot be acknowledged on-screen. Every hour of line downtime costs the facility thousands of dollars in unfulfilled retailer contracts. Having a pre-inspected replacement Eaton XP-503-21-A10-A00-1V panel PC ready in stock allows the maintenance crew to unclamp the damaged unit, transfer the solid-state drive or runtime software over, secure the new NEMA 4X front gasket, and have the packaging line running again before the morning shift arrives.

• Automated Packaging & Material Handling – Serves as the primary line operator interface, managing multi-lane conveyor routing and high-speed palletizer recipes. Required because the 21.5″ Full HD display provides complete line overview diagrams without menu switching.
• Food & Beverage Processing Facilities – Acts as the batch control HMI mounted on stainless steel washdown enclosures. Required because its IP65 glass front resists aggressive cleaning agents and liquid splashes.
• OEM Custom Machine Manufacturing – Deployed as a centralized machine controller and visualization unit on large CNC, automotive assembly, or stamping presses.

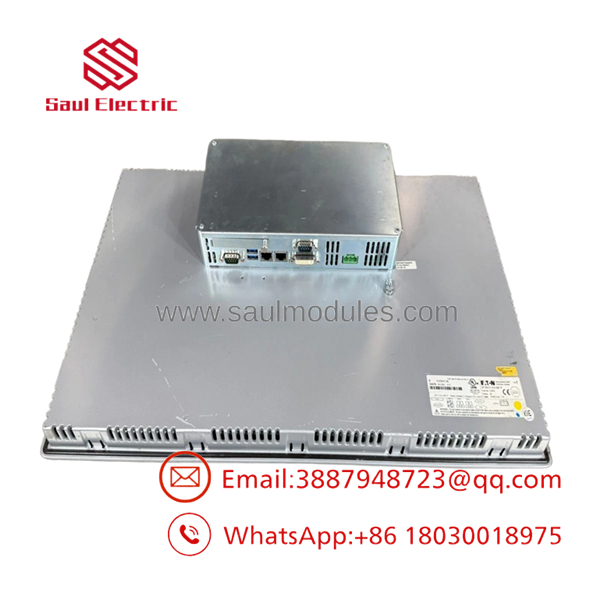

XP-503-21-A10-A00-1V

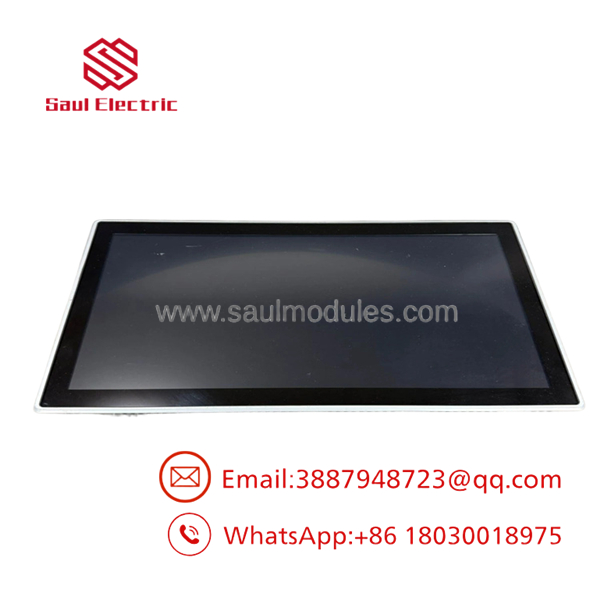

XP-503-21-A10-A00-1V

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual industrial 24V power benches before they leave our shop.

1. Inbound & Housing Inspection: Detailed physical check for glass hairline cracks, bezel gasket deformation, rear heat-sink fin damage, and serial tag verification.
2. 24V DC Power Sweep & Burn-In Test: Unit connected to a precision bench power supply and swept across the 18V to 30V DC operating range to confirm stable internal voltage regulator performance and power-on boot cycles.
3. Multi-Touch Grid Calibration Check: Full-surface touch grid test covering all screen quadrants and edge zones to verify multi-point gesture registration, zero dead spots, and no ghost-touch anomalies.
4. I/O & Port Stress Audit: Simultaneous communication test across both Gigabit Ethernet ports, USB storage ports, and serial channels to ensure continuous data transmission without dropped frames.
5. ESD Cleaning & Safe Packaging: Display face cleaned with non-abrasive optical solvent, wrapped in anti-static protective film, vacuum-sealed with desiccant, and packaged inside custom double-walled foam crates.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Mind the 24V DC Power Polarity & Grounding! The 24V DC terminal block on the rear panel requires strict polarity adherence. Wiring supply leads backwards or running the panel without a low-impedance earth ground strap attached to the frame grounding stud will cause static charge build-up on the glass face. This static build-up leads to erratic “ghost touches” or temporary touch lockups during dry ambient conditions.
• ❗ Never Use Solvents or Abrasives on the Front Gasket When mounting the panel into a enclosure cutout, inspect the continuous polyurethane seal on the back of the front bezel. Do not apply silicone grease, acetone, or harsh chemical cleaners to this gasket. Chemical degradation of the perimeter seal will allow moisture or oil mist to seep past the cabinet cutout and short out internal DC-DC converter components.
• ⚠️ Verify Mounting Cutout Dimensions & Torque The 21.5″ widescreen frame requires a clean, flat mounting cutout without burrs. When tightening the rear mounting clamps, torque them down evenly in a cross-pattern by hand. Using a power driver to over-torque the clamps will bow the outer frame, putting mechanical stress on the glass substrate and inducing perimeter touch inaccuracy.
• ❗ Back Up the Runtime Project & License Keys First Before pulling an existing faulty XP-503 panel PC off the line, make sure you have extracted the runtime visualization project and any soft-license keys stored on the internal storage drive or CFast/SD card. Swapping in a replacement hardware panel PC without transferring the exact runtime image or license files will prevent machine communication upon reboot.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main display resolution of the Eaton XP-503-21-A10-A00-1V? A: The XP-503-21-A10-A00-1V features a 21.5-inch widescreen TFT display with a native Full HD resolution of 1920 x 1080 pixels (16:9 aspect ratio).

Q: Can I operate the PCT multi-touch screen while wearing work gloves? A: Yes. The projected capacitive touch sensor is calibrated to detect inputs from bare fingers, thin nitrile/rubber gloves, and standard industrial work gloves. However, heavy leather welding gloves may reduce gesture sensitivity.

Q: Is the XP-503-21-A10-A00-1V panel PC fanless? A: Yes. The unit utilizes a completely fanless passive cooling architecture. Heat is dissipated through the aluminum rear enclosure, eliminating moving fans that pull oil mist and factory dust into the internal circuitry.

Q: What front-panel ingress protection rating does this unit carry? A: When correctly installed into a control cabinet door using all factory mounting clamps and the perimeter sealing gasket, the front face achieves IP65 (NEMA 4X / NEMA 12) ingress protection against dust and low-pressure water jets.

Q: Why purchase New Surplus or Tested Refurbished stock instead of ordering directly from the OEM? A: Discontinued or mature industrial panel PCs often carry extended factory lead times and steep legacy list prices. Sourcing pre-tested, factory-sealed surplus inventory allows you to obtain exact drop-in replacement hardware immediately, preventing days or weeks of costly production downtime.
