Eaton XV-102-D4-70TWR-10 (150621) XV100 Micro Panel

Description

Product Introduction

The Eaton XV-102-D4-70TWR-10 (Order/Article No. 150621) is a compact 7.0-inch widescreen HMI touch panel engineered for space-constrained OEM machine consoles, industrial automation systems, and process control panels. Combining a high-contrast 800×480 TFT display with an industrial resistive touch sensor, it serves as a reliable human-machine interface for system visualization, parameter adjustment, and real-time alarm monitoring.

Powered by a 400 MHz RISC processor running Windows CE, the XV-102 series provides flexible software compatibility (Galileo or CoDeSys-based visualization/PLC execution). Its fanless design and rugged plastic enclosure allow it to withstand continuous 24/7 operating cycles in dusty or high-vibration manufacturing environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:00 AM on a graveyard shift at a high-speed bottling plant. The main labeling machine locks up with a “Communication Lost” alarm on its local control interface. An technician inspecting the cabinet finds the old 7-inch HMI screen dark—a dead backlight inverter board has paralyzed the entire machine section because operators can’t clear the fault or re-home the line. Unboxing a pre-tested XV-102-D4-70TWR-10 (150621) replacement, transferring the project file via SD card, and snapping the panel into the NEMA cutout restores full operator control in under 30 minutes, keeping the shift’s production quota on track.

• OEM Packaging Machinery – Serves as a compact operator panel for rotary coders, shrink wrappers, and case packers. Chosen for its compact depth and direct 24V DC cabinet integration.
• Building & Environmental Controls – Manages HVAC pump stations and boiler room monitoring. Chosen for its onboard RS485 interface to communicate via Modbus/RTU protocols.
• Pumping & Water Treatment Skids – Displays real-time flow rates, tank levels, and chemical dosing setpoints on outdoor-rated or IP65-sealed cabinet doors.

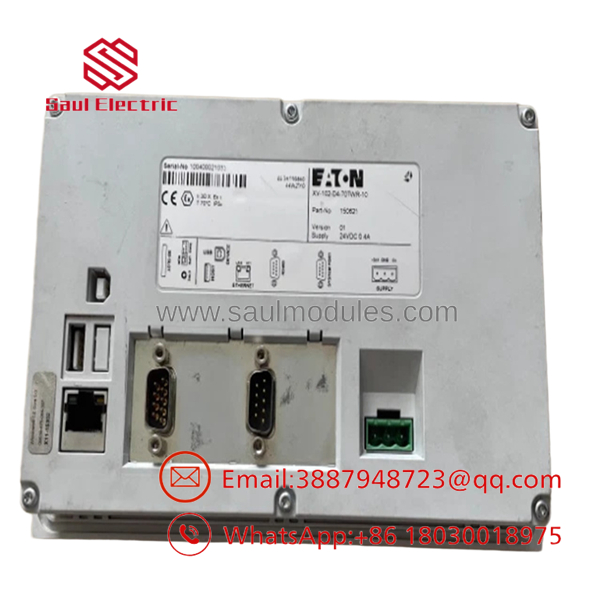

XV-102-D4-70TWR-10 (150621)

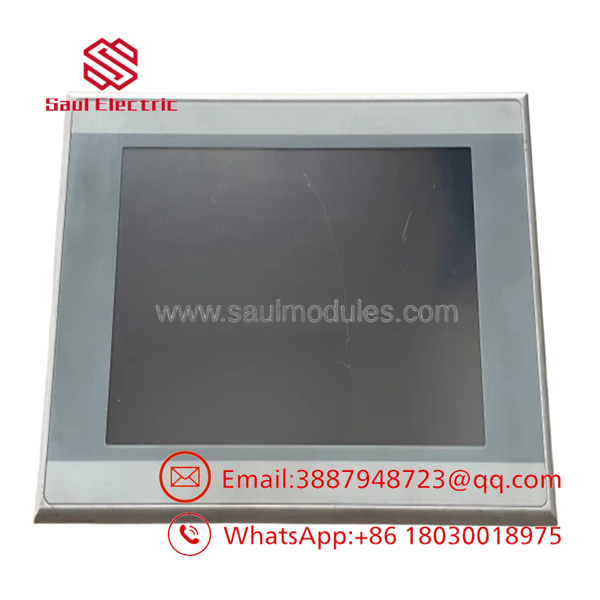

XV-102-D4-70TWR-10 (150621)

Transparency SOP: Quality Assurance & Testing

Every unit goes through a comprehensive multi-point bench test before shipping:

1. Physical & Gasket Inspection: Checks on screen surface integrity, corner bezel condition, rear housing latches, and the perimeter IP65 seal gasket.
2. 24V DC Power Input Sweep: Powered on a precision DC bench supply and swept between 18V and 30V DC to verify internal power regulator stability and clean boot cycles.
3. Resistive Touch Calibration & Matrix Test: Full screen surface matrix test verifying 100% touch accuracy across all four corners and center zones, checking for drift or dead regions.
4. I/O & Port Verification: Functionality checks across the 10/100 Ethernet port, RS485 serial interface, USB host port, and SD card expansion slot.
5. Anti-Static ESD Packaging: Cleared of static charges, sealed in anti-static ESD shielding bags with desiccant, and securely packed in custom foam containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match the Exact Article Number (150621)!

  The XV-102 family includes multiple hardware variants (CANopen, PROFIBUS DP, RS232, RS485). The 150621 ordering code specifically designates the model with RS485 + Ethernet + USB. Buying a variant with CANopen or RS232 instead will cause physical connector mismatches with your fieldbus wiring.

• ❗ Watch 24V DC Wiring Polarity & Grounding

  Ensure correct +24V DC and 0V wiring to the removable green terminal block on the rear. Operating the unit without connecting the protective earth (PE) grounding wire to the dedicated grounding screw can cause electrical noise interference on the resistive touch controller, leading to erratic touch coordinates.

• ⚠️ Hand-Torque Rear Mounting Clamps

  When securing the panel into a panel cutout using the supplied mounting brackets, tighten screws evenly by hand in a cross pattern. Over-tightening with a power screwdriver will warp the outer plastic bezel, preventing the perimeter seal from making uniform contact with the cabinet surface (compromising IP65 protection).

• ❗ Keep a Micro/Standard SD Card Formatted to FAT16/FAT32

  Project backups, OS updates, or firmware transfers on Windows CE-based XV100 units require an SD card formatted in FAT16 or FAT32 (maximum 2 GB recommended for legacy OS stability). Newer SDXC or NTFS-formatted cards will not be recognized by the onboard bootloader.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between part number XV-102-D4-70TWR-10 and article number 150621?

A: They refer to the exact same physical product. XV-102-D4-70TWR-10 is the type designation detailing the series, display size (7″), touch type (Resistive), and interface combination. 150621 is Eaton’s unique 6-digit ordering/article code for inventory and procurement.

Q: What visualization software is used to program the XV-102-D4-70TWR-10?

A: This panel is typically programmed using Eaton’s Galileo visualization software or CoDeSys (for combined PLC and HMI runtime projects).

Q: Is the touch screen glass or plastic?

A: The screen utilizes a durable analog resistive touch surface made of an outer protective film layer over a glass substrate, making it suitable for operation with bare fingers, gloved hands, or a plastic stylus.

Q: Can I use this unit to replace an older XV-102 model?

A: Yes, as long as the replacement shares the same interface hardware layout (RS485, Ethernet). Transferring the runtime project file via Galileo or SD card will allow a drop-in replacement without cabinet modifications.
