Product Introduction & Engineering Value
Few things stop a production line faster than an unreadable or unresponsive human-machine interface panel. The Eaton XV-102-D0-57TVR-10 operator interface addresses this exact operational pain point by replacing brittle components with a resilient, fanless 5.7-inch display designed for industrial environments. This unit consolidates logic control and system monitoring into a single, space-saving panel layout.
Engineers specify this specific terminal when high-density data visualization must fit inside tight enclosure depths. Its full 640×480 VGA resolution matches older legacy CRT profiles, simplifying graphics migration without scaling issues. Because it natively executes complex scripts and functions within the Galileo or XSoft-CoDeSys environments, it acts as both a visual terminal and an independent controller.
Technical Specifications
- Display Size / Type: 5.7-inch diagonal Active Matrix TFT Color Display.
- Screen Resolution: 640 x 480 Pixels (VGA) with 65,536 colors.
- Touch Technology: 4-wire resistive analog touch matrix.
- Processor Architecture: 32-bit RISC CPU running at 400 MHz.
- Onboard Storage Memory: 64,000 kByte internal Flash / Expandable via 1x SD Card Slot.
- Operating Supply Voltage: 24 VDC nominal range (Operational between 20.4 to 28.8 VDC).
- Power Dissipation Profile: 9.5 Watts maximum during full continuous operation.
- Communication Interfaces: 1x 10/100 Mbps RJ45 Ethernet port, 1x RS-232 serial port, 1x USB Host, 1x USB Device.
- Front Panel Protection: Rated IP65 and NEMA 4X for ingress protection.
- Physical Housing Enclosure: Heat-resistant molded plastic with natural convection cooling.
- External Dimensions: 170 mm x 130 mm x 39 mm (Width x Height x Depth).

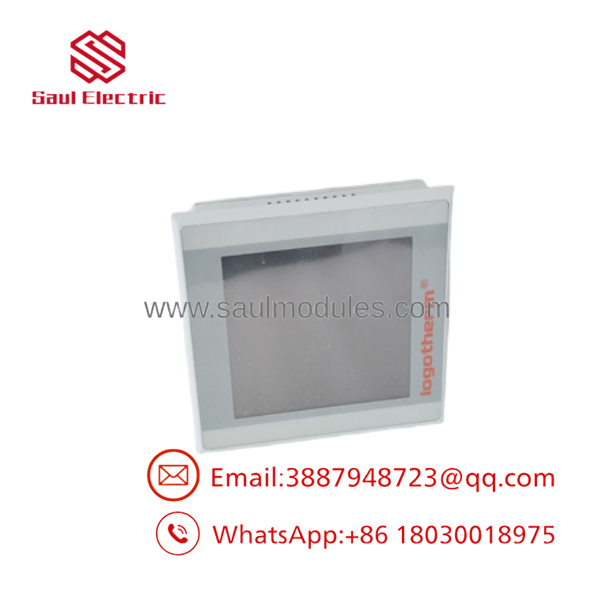

- XV-102-D0-57TVR-10

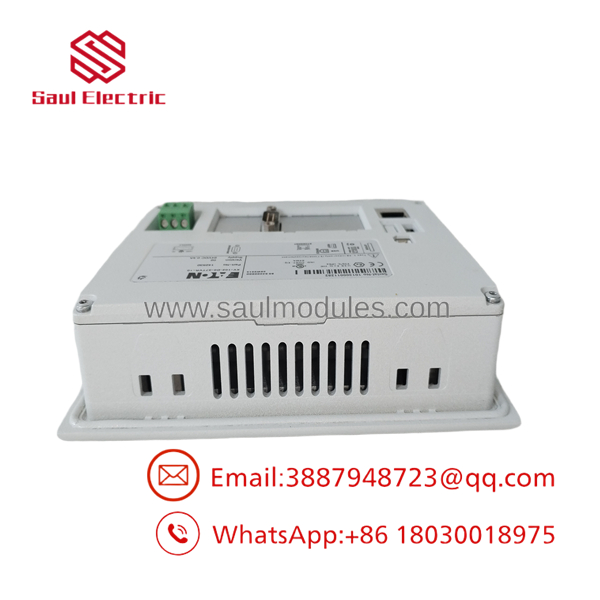

- XV-102-D0-57TVR-10
Field Application & The “Trench” Experience
During a winter changeover at a water treatment plant in Michigan, a primary chemical dosing skid went dark. The legacy screen’s backlight inverter failed, leaving operators completely blind to chlorine levels. Because the original HMI used direct serial addressing back to the main PLC rack, finding a direct hardware replacement that didn’t require rewiring the control cabinet was critical. A technician deployed an XV-102-D0-57TVR-10 from local surplus inventory. By downloading the archived runtime file over the onboard Ethernet port, the technician restored line communications, calibrated the analog scaling, and brought the dosing loops back online in under an hour.
Target Industrial Deployments:
- Pumping Stations & Valve Controls: Managing multi-pump rotation sequences and pressure monitoring over serial or Ethernet topologies.
- Conveyor Sortation Modules: Serving as local operator diagnostics panels mounted directly to sorting sub-assemblies inside active distribution hubs.
- Packaging OEM Systems: Interfacing directly with small-footprint form factor form-fill-seal machines using local recipes and discrete alarm logs.
Transparency SOP: QA & Testing
Every Eaton XV-102-D0-57TVR-10 unit passing through our facility undergoes rigorous verification before shipment:
- Visual Inspections: We examine the outer plastic bezel, checking for hairline cracks or mounting tab degradation.
- Touch-Grid Calibration: Technicians run a comprehensive multi-point alignment test across all zones of the resistive screen to ensure accurate touch registration.
- Port Communication Audits: Data transfers are verified on both the RS-232 serial interface and the RJ45 Ethernet connection.
- Power Cycle Bench Testing: Units undergo extended power-up testing at 24VDC to verify the display’s inverter and dimming functions work without flickering.
The Veteran’s Tech Trap Guide
⚠️ Firmware Version Alignment: When dropping this unit into a system programmed with older versions of Galileo software, verify that the OS image on the panel matches your compiling environment. A version mismatch can cause the runtime engine to hang during boot.
⚠️ SD Card Limitations: The integrated expansion slot does not support high-capacity SDXC cards. Stick to standard SD or SDHC cards formatted in FAT16 or FAT32 to avoid filesystem access errors when saving machine recipes or logs.
PRO TIP: The front bezel achieves its IP65 rating only if the sealing gasket lies completely flat in the cutout. Never over-tighten the mounting clips; excessive force warps the plastic chassis, which breaks the environmental seal and can cause false phantom touches on the resistive panel.
Dynamic FAQ
- Q: Does this specific model feature an integrated PLC runtime license from the factory?
- A: The XV-102-D0-57TVR-10 functions primarily as an HMI operator terminal, though it features retrofittable PLC capabilities. If your process demands onboard control logic, ensure your target software configuration enables this feature.
- Q: Can I use this unit to communicate simultaneously over Ethernet and RS-232?
- A: Yes. The independent communication controllers handle parallel data routing, allowing you to bridge a legacy serial controller to an upstream enterprise Ethernet network.
- Q: What condition is your “New Surplus” inventory for this specific part number?
- A: Our New Surplus stock consists of authentic, unused Eaton equipment in original factory packaging. These units are clean and ready for drop-in deployment.
- Q: What type of warranty protection covers this module?
- A: We back both our New Surplus and refurbished units with a full 12-month operational warranty. If any component hardware failure occurs under standard use conditions, we will replace or repair the panel.
