Product Introduction & Engineering Value
Upgrading old machinery often presents a tough choice between small, low-resolution screens and expensive, oversized enclosures. The Eaton XV-112-DB-70TWRC-00 solves this design hurdle by fitting a modern, high-density 7-inch widescreen display into a remarkably compact frame. This module eliminates the vulnerability of old resistive touch overlays by utilizing a glass-fronted projective capacitive touch (PCT) surface that resists scratches, harsh industrial solvents, and heavy physical wear.
For engineering teams looking to strip wiring overhead out of their control panels, this terminal serves as a master communication node. By integrating a dedicated SmartWire-DT portal alongside standard CANopen interfaces, it coordinates complex machine networks with a single master cable. It functions as both a responsive visualization system and a fast logic controller, making it a reliable choice for retrofits and modern high-density machinery alike.
Technical Specifications
| Parameter Name | Factory Specification Rating |
| Display Panel Dimensions | 7.0-inch diagonal widescreen (16:9 aspect ratio) |
| Display Native Resolution | 800 x 480 Pixels (WVGA) with 64k colors |
| Touch Screen Panel Type | Multi-touch projective capacitive (PCT) safety glass surface |
| Core Processing Engine | 32-bit RISC CPU architecture running at 400 MHz |
| System Memory Configuration | 64 MB internal Flash / 64 MB RAM storage capacity |
| Power Supply Requirements | 24 VDC nominal input (Accepts a 20.4 to 28.8 VDC range) |
| Active Power Draw Profile | 9.5 Watts continuous loading limit |
| Onboard Communications | 1x 10/100 Mbps Ethernet, 1x CANopen, 1x SmartWire-DT, 1x USB Host |
| Front Ingress Protection | IP65 rating / Sealed front face assembly |
| Expansion Capabilities | 1x SD Memory Card interface slot |
| Operating Temperature | 0°C to 50°C continuous ambient room operating limit |
Field Application & The “Trench” Experience
A Tier-1 automotive parts manufacturer ran into a bottleneck on an adhesive-dispensing robot cell. The existing operator display couldn’t handle the multi-step gesture commands needed to preview glue paths, and the complex cluster of sub-bus modules inside the enclosure made troubleshooting a nightmare. The plant electrical team replaced the failing setup with an XV-112-DB-70TWRC-00. By utilizing the built-in SmartWire-DT master connection, they linked the motor starters, pushbuttons, and pilot lights on a single continuous flat ribbon cable, cutting down individual point-to-point wiring loops by nearly 70%. The upgraded WVGA display now renders high-resolution error tracking charts, allowing maintenance staff to pinpoint flow issues without stopping the line.
Target Industrial Deployments:
- Precision Material Handling: Coordinating conveyor tracking vectors and motor driver telemetry across dense distribution networks.
- Multi-Axis Packaging Cells: Displaying complex recipe matrices and torque profiles on form-fill machines using multi-touch adjustments.
- Food Processing Cleanrooms: Providing local operator controls on washdown-prone cooking vessels and automated batch mixers.
- XV-112-DB-70TWRC-00

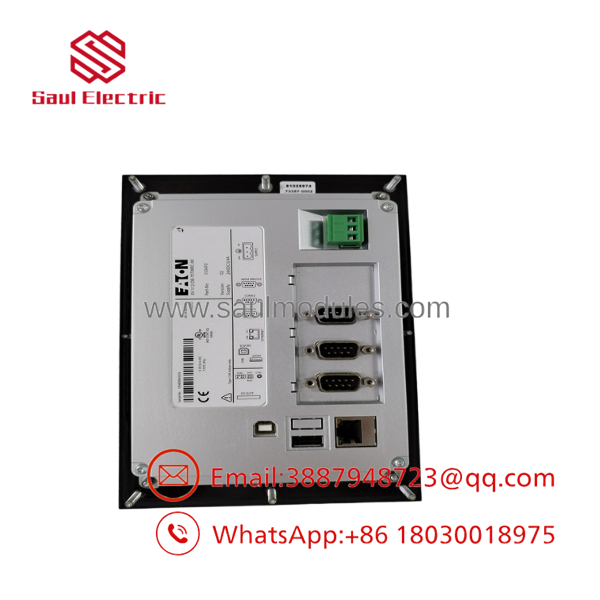

- XV-112-DB-70TWRC-00
Transparency SOP: QA & Testing
Our facility ensures the reliability of every incoming and outgoing XV-112-DB-70TWRC-00 unit using a strict, multi-step validation protocol:
- We perform detailed visual checks under high-intensity lighting to confirm the safety glass front face is completely free of chips, deep scratches, or delamination.
- Technicians run a responsive surface map test to confirm that multi-touch gesture operations and edge-to-edge tracking inputs function accurately across the glass screen.
- The onboard hardware transceivers undergo a digital load audit to confirm stable data routing on the Ethernet port, CANopen connection, and SmartWire-DT block.
- Every panel undergoes an extended burn-in run under 24VDC system loads to eliminate early component infant mortality risks and ensure the display remains stable.
The Veteran’s Tech Trap Guide
⚠️ The Thick Glove Conflict: Unlike older resistive touchscreens that respond to physical pressure from any tool, the projective capacitive touch sensor on the XV-112 counts on electrical capacitance. Heavy leather or thick insulated work gloves will not register input reliably. Operators must use capacitive-friendly industrial gloves or thin nitrile barriers to maintain responsive screen control.
⚠️ SmartWire-DT Address Mapping: Replacing this terminal requires re-initializing the SmartWire-DT configuration string via your programming software. If you simply swap the physical screen without uploading the corresponding hardware topology profile, the downstream modules will enter an unaddressed fault state and drop offline.
PRO TIP: Glass fronts reduce optical distortion but can trap deep glare under bright, high-intensity overhead factory lighting. When positioning this display on a swing-arm mount or console face, tilt the screen angle slightly downward by 5 to 10 degrees to preserve contrast and keep status indicators highly readable for floor operators.
Dynamic FAQ
- Q: Do I need a distinct master power feed to run the downstream SmartWire-DT modules?
- A: The XV-112-DB-70TWRC-00 supplies control voltage directly to the connected ribbon cable network. However, if your bus configuration includes power-heavy components like large motor starters, you will need to add an auxiliary power feed module further down the line.
- Q: Can I load an old Galileo runtime file built for a resistive XV-102 model onto this unit?
- A: The core display resolution differs between models (640×480 vs 800×480). While the project code will compile, you must check the auto-scaling settings in your project file to ensure your graphical elements do not distort or warp when moving to the widescreen format.
- Q: Is the front glass surface tough enough to survive industrial tool impacts?
- A: The front panel uses chemically hardened safety glass that resists typical impacts and scratches. That said, it is still a glass faceplate—direct strikes from dropped steel wrenches or heavy industrial tools can fracture the outer assembly.
- Q: What exact guarantee covers this module’s operating condition?
- A: Every New Surplus and refurbished Eaton panel is fully protected by our comprehensive 1-year replacement warranty, covering all internal component and logic board faults from the date of delivery.
