Eaton XV-303-10-C00-A00-1B 10.1″ Industrial HMI Touch Panel

Description

Product Introduction

The Eaton XV-303-10-C00-A00-1B is a 10.1-inch industrial operator panel in the XV300 family, designed for machine visualization, operator interaction, and industrial communications. It is commonly installed on packaging equipment, material handling systems, OEM production machinery, and factory automation cells.

Unlike earlier XV100 and XV150 platforms, the XV300 series introduces a projected capacitive multi-touch display, higher display resolution, Windows Embedded Compact 7 Pro, and dual Ethernet interfaces. This particular model functions as an HMI only. PLC capability can be added later through an Eaton PLC license, making it suitable for applications that may require future expansion without replacing the hardware.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a production line during a scheduled shutdown. The old HMI has finally failed after years of continuous operation. Maintenance installs a replacement, powers it up, and immediately discovers that the Ethernet network topology has changed since the original commissioning. The hardware isn’t the problem—the configuration is.

We’ve seen that scenario more than once.

Typical Applications

Packaging Industry — Cartoners and case packers — Dual Ethernet allows simultaneous machine and plant network connections.

Material Handling — Conveyor control stations — High-resolution display provides clear diagnostics and alarm visualization.

Food & Beverage — Filling and labeling equipment — Capacitive touch improves operator usability while wearing light industrial gloves.

Automotive Manufacturing — Assembly workstations — RS485 and CANopen simplify communication with legacy controllers.

OEM Equipment — Modular machine platforms — Optional PLC licensing lets builders standardize on one HMI platform while enabling future control upgrades.

Field Replacement Example

A machine builder supporting warehouse automation had to replace an XV300 after a display failure. The replacement hardware was available immediately, but the original SD card contained outdated network parameters. After restoring the latest project archive and confirming both Ethernet interfaces were assigned correctly, the system returned to production before the maintenance window expired. The hardware installation took less than thirty minutes. Configuration verification consumed the remaining time.

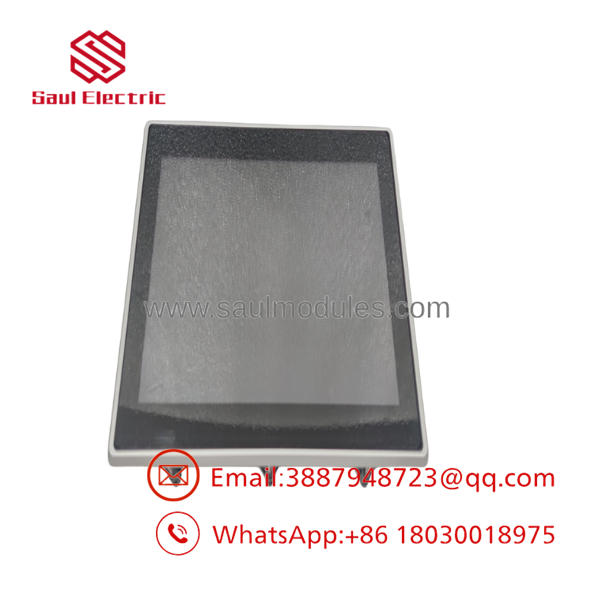

XV-303-10-C00-A00-1B

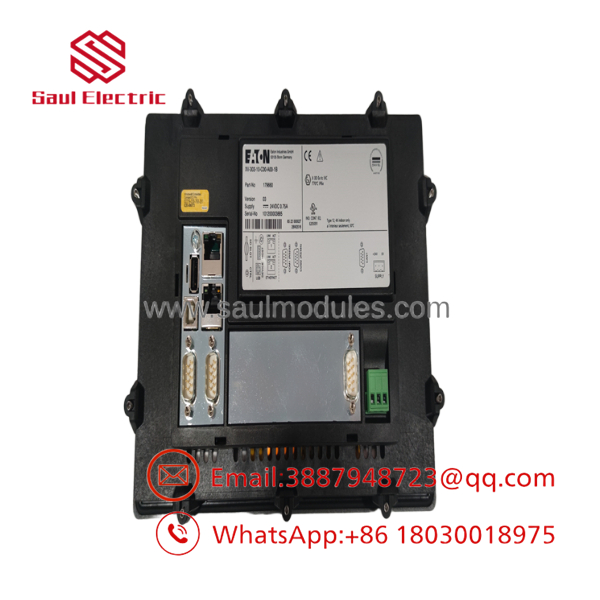

XV-303-10-C00-A00-1B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Eaton platforms whenever practical.

• Inbound Inspection
  • Verify Eaton identification labels.
  • Inspect display glass for impact damage.
  • Confirm connector integrity.
  • Check for signs of unauthorized repair.
• Live Rig Testing
  • Power using regulated 24 VDC.
  • Verify boot sequence.
  • Test touchscreen accuracy.
  • Confirm both Ethernet ports establish communication.
  • Test RS232, RS485, and CAN interfaces.
• Electrical Parameter Checks
  • Verify input current.
  • Inspect LCD backlight performance.
  • Confirm touchscreen response across the full display.
• Firmware Verification
  • Record Windows Embedded Compact version.
  • Document installed runtime and communication configuration.
  • Verify optional PLC license status if present.
• Final QC & Packaging
  • Functional inspection.
  • ESD-safe packaging.
  • Shock-resistant packing materials.
  • Serial number documentation for traceability.

The Veteran’s Tech Trap Guide

⚠️ This model is not automatically a PLC.
The XV-303-10-C00-A00-1B ships as an HMI platform. PLC functionality requires the appropriate Eaton license. Verify the machine documentation before assuming control logic is stored locally.

⚠️ Label both Ethernet cables before removal.
This version includes two Ethernet ports. Mixing the machine network with the plant network can create communication headaches that look like software faults.

❗ Always archive the SD card first.
Many OEMs store recipes, alarm history, and application files on removable media. Don’t overwrite the only copy during commissioning.

⚠️ Verify communication settings—not just connectors.
RS485 baud rate, CANopen node ID, and Ethernet IP configuration must match the existing installation. Hardware replacement alone will not restore communications.

Frequently Asked Questions (FAQ)

Q1. Does this model include an integrated PLC?

Not by default. The XV-303-10-C00-A00-1B is supplied as an HMI platform. PLC functionality can be added later using Eaton’s PLC license.

Q2. Can it replace an older XV100 or XV150 panel?

Mechanically, it may fit some applications, but software, communication settings, project conversion, and touch technology should all be reviewed before replacement.

Q3. Is hot swapping supported?

No. Isolate power before removing or installing the panel. Disconnecting the HMI while energized can interrupt field communications and may corrupt stored project data.

Q4. Does the unit support CANopen devices?

Yes. The panel includes an integrated CANopen interface in addition to dual Ethernet, RS232, and RS485 communication ports.

Q5. What warranty is typically available?

Most qualified industrial automation suppliers provide a 12-month functional warranty for tested New Surplus or professionally refurbished equipment. Warranty terms vary by supplier.

Q6. Why is surplus inventory less expensive than buying directly from the OEM?

Most available units originate from cancelled projects, unused maintenance inventory, or plant modernization programs. These are genuine Eaton products that remain in circulation after production has ended.

Q7. What should be verified before installation?

Confirm the project backup, firmware version, network addressing, communication parameters, optional PLC license status, and panel dimensions. Verify exact wiring and connector assignments with the official Eaton documentation before energizing the system.
