Eaton XV-303-70-B00-A00S07 7-Inch Multi-Touch HMI Panel

Description

Product Introduction

The Eaton XV-303-70-B00-A00S07 (Article No. 179650) is a flagship 7.0-inch industrial HMI touch terminal belonging to Eaton’s high-performance XV300 family. Designed with a anti-glare glass front panel and Projected Capacitive Touch (PCT) technology, it supports multi-touch gesture operations—such as swipe, pinch-to-zoom, and multi-finger safety confirmations—similar to modern smartphone displays.

Powered by a high-speed 800 MHz ARM Cortex-A9 processor running Windows Embedded Compact 7, the XV-303-70 series delivers crisp WSVGA (1024×600) graphics and real-time soft-PLC performance via XSoft-CoDeSys. Equipped with dual independent Ethernet ports, RS232, RS485, and a CANopen master interface, this unit serves as a versatile edge visualization controller for high-end OEM machinery and plant automation networks.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:30 AM during a full-capacity run on an automated robotic palletizing cell. An operator accidentally hits a plastic clipboard against the HMI screen on the main safety console, shattering the old resistive touch surface and causing a permanent touch short that halts the cell. Unboxing a pre-tested XV-303-70-B00-A00S07 (179650) replacement, inserting the SD card containing the Galileo visualization project, and securing the toughened glass front panel into the NEMA cutout restores the line in under 20 minutes—providing a scratch-resistant interface that easily survives harsh factory floor handling.

• Robotic Cells & High-Speed Motion – Serves as the primary cell operator terminal, leveraging 1024×600 resolution to display multi-axis motion coordinates and camera inspection feeds side-by-side.
• Dual-Network Process Automation – Utilizes two independent Ethernet ports to isolate IT/SCADA plant network traffic on Port 1 from deterministic motion/fieldbus communications on Port 2.
• OEM Custom Machinery – Replaces separate PLC controllers and display screens by running XSoft-CoDeSys soft-PLC logic directly on the 800 MHz processor.

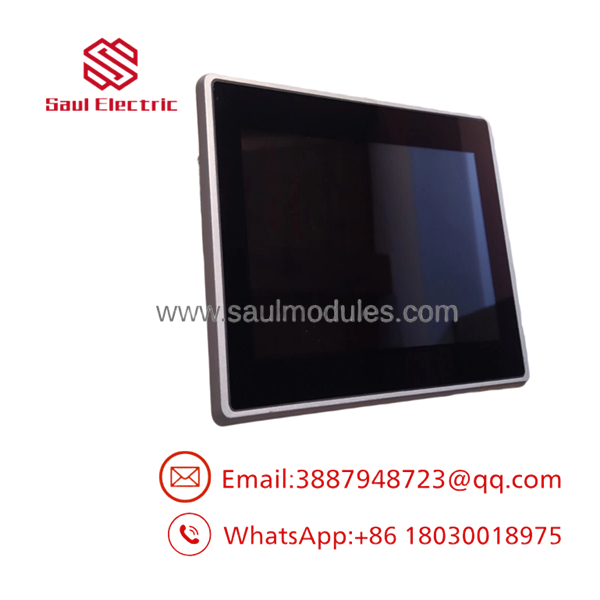

XV-303-70-B00-A00S07

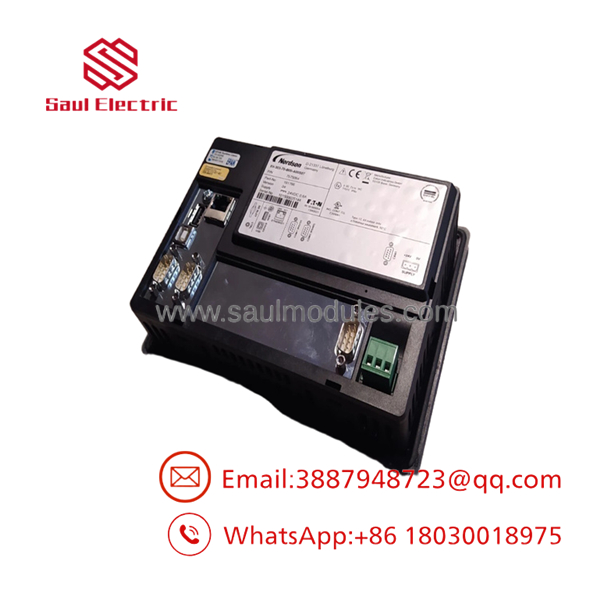

XV-303-70-B00-A00S07

Transparency SOP: Quality Assurance & Testing

Every unit undergoes a thorough bench test prior to shipping:

1. Glass & Housing Inspection: Physical check of the toughened glass front plate, bezel seal, rear heat-sink fins, and connector headers.
2. 24V DC Voltage Sweep: Unit connected to a precision bench power supply and swept between 18.0V and 31.2V DC to confirm stable boot-up cycles and power supply regulation.
3. PCT Multi-Touch Calibration Test: Full-surface multi-point gesture test verifying zoom, swipe, and edge-to-edge touch registration across the glass panel.
4. I/O & Dual Ethernet Stress Audit: Data loopback tests on both Ethernet ports, RS232/RS485 serial buses, CANopen port, and SD expansion card reader.
5. ESD Cleaning & Safe Packaging: Cleared of static charges, sealed in an ESD shielding bag with fresh desiccant, and securely packed in custom foam containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Distinguish “B00” (Standard Front) vs. Rear-Mount Variants!

  The B00 designation in XV-303-70-B00-A00S07 indicates a standard flush-mount front bezel with an IP65 perimeter seal. Verify that your cabinet cutout matches the standard front dimensions (196 mm \times 135 mm) rather than rear-mount flat panel cuts.

• ❗ Separate Industrial Grounding from 24V DC Floating Supplies

  Ensure a low-impedance ground wire is connected from the frame ground terminal directly to the main enclosure earth rail. Floating ground potentials can cause high-frequency ambient electrical noise to interfere with the PCT capacitive touch sensor, resulting in false “ghost touches.”

• ⚠️ Hand-Tighten Panel Clamps to Avoid Glass Stress

  When mounting the glass panel into a sheet metal door, tighten the rear mounting clamps evenly by hand in a cross pattern. Over-torquing screws with power drivers can put mechanical stress on the glass substrate or flex the cabinet door, reducing the perimeter seal lifespan.

• ❗ Use High-Speed MicroSD / SD Cards for NVRAM Backups

  This panel includes 128 kB of non-volatile NVRAM for retained PLC variables. When commissioning or swapping hardware, back up retain memory and Galileo project runtimes using a high-reliability industrial-grade SD card formatted to FAT32.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between part number XV-303-70-B00-A00S07 and article number 179650?

A: They refer to the exact same physical product. XV-303-70-B00-A00S07 is the descriptive type code detailing the series, 7.0″ display size, PCT touch type, and interface configuration. 179650 is Eaton’s unique 6-digit ordering/article code.

Q: What software packages are used to program this unit?

A: Graphic screens are configured using Eaton’s Galileo visualization software. When using the integrated soft-PLC execution engine, programming is handled via XSoft-CoDeSys-2 or XSoft-CoDeSys-3.

Q: Can this unit be operated while wearing work gloves?

A: Yes. The Projected Capacitive Touch (PCT) sensor on the XV300 series is calibrated to recognize inputs from bare fingers, thin nitrile gloves, and standard industrial work gloves.

Q: Does this model support dual independent IP addresses on Ethernet?

A: Yes. The two onboard Ethernet ports operate as independent network interfaces, allowing one port to join the plant network (e.g., 192.168.1.x) while the second port manages local machine subnet drives and field I/O (e.g., 10.0.0.x).
