Eaton XV-430-10TVB-1-10 10.4-Inch HMI Touch Panel Display

Description

Product Introduction

The Eaton XV-430-10TVB-1-10 (Article No. 139898) is a heavy-duty 10.4-inch industrial HMI panel PC designed for harsh manufacturing environments and demanding visualization tasks. Featuring a rugged metal housing and a stainless steel front bezel, it provides exceptional physical durability alongside reliable resistive touch operation for process control, machine monitoring, and soft-PLC execution via XSoft-CoDeSys.

Powered by a 400 MHz 32-bit RISC processor running Windows CE, the XV-430 series stands out for its modular architecture. In addition to onboard Ethernet, USB, and RS232 interfaces, it features communication expansion slots that accommodate optional fieldbus cards (such as PROFIBUS DP, CANopen, or DeviceNet). Its IP65 front face and fanless design ensure continuous operation in dusty or wet cabinet locations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:45 AM during a critical production run at a chemical batching plant. The main mixing cell HMI goes completely blank due to an internal power component failure on an old display. The reactor vessel temperature loops and agitator speeds are locked out, threatening a batch freeze that could result in tens of thousands of dollars in wasted raw material. Having a pre-inspected XV-430-10TVB-1-10 (139898) replacement ready on the shelf allows maintenance engineers to unbolt the damaged display, transfer the CompactFlash card holding the runtime application and fieldbus modules, and restore complete line supervision in under 25 minutes.

• Chemical & Food Processing Skids – Housed in washdown control cabinets where the stainless steel bezel and IP65 front seal resist liquid spray and mild chemical fumes.
• Heavy Machinery & Presses – Mounted directly on metal stamping or injection molding machines where the metal chassis shields internal electronics against high structural vibration.
• Legacy PROFIBUS / CANopen Fieldbus Networks – Leverages rear expansion slots to interface directly with existing fieldbus networks without requiring external protocol conversion gateways.

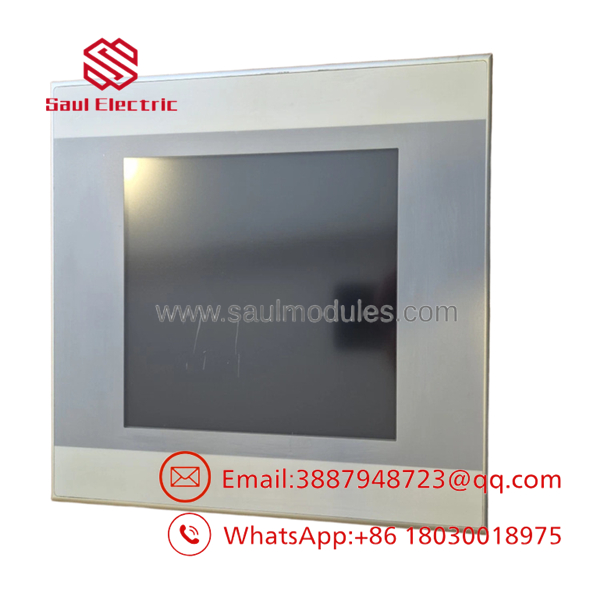

XV-430-10TVB-1-10

Transparency SOP: Quality Assurance & Testing

Every unit undergoes a multi-point bench audit before shipping:

1. Housing & Bezel Inspection: Physical examination of the stainless steel bezel, glass touch panel substrate, rear communication card slots, and perimeter sealing gasket.
2. 24V DC Voltage Sweep: Connected to a precision DC power supply and swept between 19.2V and 30.0V DC to confirm stable boot cycles, power regulation, and display backlighting.
3. Resistive Touch Matrix Calibration: Full-surface multi-point calibration test verifying 100% touch responsiveness and zero drift across all screen quadrants.
4. I/O & Expansion Port Stress Test: Communication audit across the 10/100 Ethernet port, RS232 serial interface, USB port, CompactFlash card slot, and rear expansion bus connectors.
5. ESD Cleaning & Secure Packaging: Cleared of static charges, vacuum-sealed in anti-static ESD bags with desiccant, and packaged inside custom double-walled foam crates.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Transfer Fieldbus Expansion Cards Before Commissioning!

  The XV-430-10TVB-1-10 features modular expansion slots on the rear. If your existing failed HMI uses PROFIBUS DP (MPI) or CANopen options, ensure you power down both units and transfer the expansion sub-cards into the replacement XV-430 slots before powering on the cabinet.

• ❗ Verify CompactFlash Card Compatibility

  Operating system files, Galileo projects, and runtime PLC code on XV400 units are often stored on a removable CompactFlash (CF) card. Ensure your replacement CF card is an industrial-grade Type I CF card formatted to FAT16/FAT32 (maximum 2 GB recommended for legacy Windows CE stability).

• ⚠️ Hand-Torque Mounting Screws to Prevent Frame Distortion

  The heavy stainless steel front bezel requires uniform pressure against the cabinet door. Tighten the rear mounting clamps evenly in a cross pattern by hand. Over-tightening with power drivers can warp the sheet metal cutout, compromising the IP65 perimeter seal.

• ❗ Connect Frame Ground to Earth Rail

  Connect a short, low-impedance grounding wire from the metal frame ground terminal to the main panel earth rail. Proper grounding prevents high-frequency electrical noise from causing touch coordinate drift or communication frame drops on serial fieldbuses.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the exact difference between part number XV-430-10TVB-1-10 and article number 139898?

A: They refer to the exact same physical product. XV-430-10TVB-1-10 is the descriptive type code detailing the series, 10.4″ screen size, VGA resolution, and hardware features. 139898 is Eaton’s unique 6-digit ordering/article number.

Q: Which software applications program this panel?

A: Graphic screens are configured using Eaton’s Galileo visualization software. When utilizing the soft-PLC runtime, logic programming is handled via XSoft-CoDeSys-2 or XSoft-CoDeSys-3.

Q: Does this model support fieldbus expansion?

A: Yes. Unlike the compact XV100/XV200 series, the XV400 family includes rear expansion slots that accept modular communication cards for PROFIBUS DP, CANopen, DeviceNet, or Suconet fieldbus protocols.

Q: Can this unit replace plastic-housed 10.4″ XV100 panels?

A: Functionally yes, provided the project file is compiled for the same screen resolution and interface setup. However, verify cabinet door cutout dimensions and weight capacity, as the metal-housed XV-430 is heavier and may require a slightly different mounting depth.
