Core Product Summary
The Electronic DDS5ME-A2 is an electronic regulator designed for 208-230 V AC single-phase supply. It operates at 50-60 Hz with a rated power of 32 VA (1.3 A).
The unit features an IP40 enclosure and an insulation class of 4.2 kV. It is intended for industrial control applications requiring a compact electronic regulation function on standard mains voltage.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Electronic regulator |
| Model | DDS5ME-A2 |
| Input Voltage | 208-230 V AC, 50-60 Hz (N-L) |
| Rated Power | 32 VA (1.3 A) |
| Enclosure | IP40 |
| Insulation Class | 4.2 kV |
Engineering Selection Highlights
- Rated for 208-230 V AC single-phase supply at 50-60 Hz, matching common industrial and commercial mains voltages.
- 32 VA (1.3 A) capacity supports low-power control or regulation loads.
- IP40 enclosure provides basic protection against solid objects larger than 1 mm.
- 4.2 kV insulation class indicates the dielectric strength between circuits and accessible parts.
Detailed Product Overview
The Electronic DDS5ME-A2 is a compact electronic regulator intended for single-phase 208-230 V AC operation at 50 or 60 Hz. Its rated capacity is 32 VA, corresponding to approximately 1.3 A.
The device is housed in an IP40 enclosure, offering protection against solid foreign objects greater than 1 mm while remaining suitable for indoor panel or equipment mounting. The insulation class of 4.2 kV defines the dielectric strength of the unit.
Selection should confirm that the available supply voltage falls within the 208-230 V range and that the connected load remains within the 32 VA rating. No additional verified details on control interfaces, output characteristics, or environmental limits beyond the stated enclosure rating are available for this exact model.

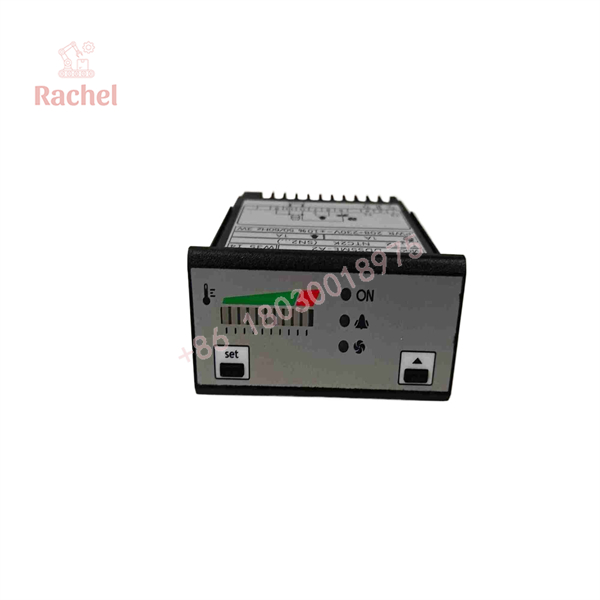

DDS5ME-A2
DDS5ME-A2
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Supply Voltage | 208-230 V AC, 50-60 Hz, single-phase (N-L) | Confirm local supply matches the rated range |
| Load Capacity | 32 VA (1.3 A) | Size connected load within this rating |
| Enclosure | IP40 | Suitable for indoor, protected environments |
Dimensions, Mounting & Connection Notes
No verified dimensional outline, mounting method, or terminal details are available for the exact model. Installation must respect the IP40 rating and the 4.2 kV insulation class. Power connections are for single-phase 208-230 V AC (N-L).
Applications & System Role
The DDS5ME-A2 functions as an electronic regulator on 208-230 V AC supplies. It provides regulation capability for low-power industrial control circuits operating from standard single-phase mains.
FAQ
What is the Electronic DDS5ME-A2?
It is an electronic regulator rated for 208-230 V AC input at 50-60 Hz with a capacity of 32 VA (1.3 A).
What supply voltage does the DDS5ME-A2 require?
It is designed for 208-230 V AC single-phase (N-L) at 50-60 Hz.
What is the power rating of the DDS5ME-A2?
The rated power is 32 VA, equivalent to 1.3 A.
What enclosure rating does the DDS5ME-A2 have?
It carries an IP40 enclosure rating.
What insulation class is specified?
The insulation class is 4.2 kV.
