Emerson Westinghouse 1C31189G01 Ovation Logic Module

Description

Product Introduction

The Emerson Westinghouse 1C31189G01 is a critical processing and logic interface module engineered for the Ovation Distributed Control System (DCS). Operating within the main controller rack or specialized I/O sub-tiers, it handles internal protocol translation, bus arbitration, and execution of deterministic control routines.

Built to handle continuous high-duty-cycle industrial operations, the 1C31189G01 bridges field subsystem data directly into the Ovation highway. Its rugged hardware layout isolates internal processing logic from electrical noise, ensuring stable scan cycles even during heavy network traffic or sudden power fluctuations across the plant grid.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

To be honest, logic boards like the 1C31189G01 are the unsung heroes of process plants—until one drops out. Picture this: It is 2:15 AM on a hot summer weekend. A combined-cycle plant is running at max output when a logic bus fault triggers a domino cascade of communication alarms across the main control room displays. The controller hasn’t lost power, but it has lost communication with its sub-tier I/O racks because an aging internal processing card cooked its onboard logic gates.

Every minute the unit sits offline waiting for a reboot costs thousands of dollars in lost power generation. Having a pre-tested 1C31189G01 sitting on the shelf is the difference between a quick 15-minute card swap and a multi-day unplanned shutdown. Key installation scenarios include:

• Power Generation – Boiler Control Systems: Executes real-time interlocking and safety logic across draft fans and feedwater pump skids.
• Oil & Gas – Gas Processing Plants: Manages logic arbitration between local skid PLCs and the primary Ovation historian.
• Chemical Refineries – Continuous Distillation Columns: Coordinates multi-loop temperature and pressure valve sequences across sub-tier baseplates.
• Pulp & Paper – Recovery Boiler Auxiliaries: Processes high-density digital logic interlocks to prevent burner management trips.

Field Case Study: An East Coast paper mill suffered sporadic controller bus drops on their main paper machine line. Emerson quoted a multi-week factory lead time for a replacement board. We verified the jumper settings and backplane connector pin integrity on a surplus 1C31189G01 using our bench setup, then hot-shipped it to the mill. The instrument tech swapped the board during a scheduled shift change, immediately clearing the backplane bus fault and getting the machine running back at full line speed.

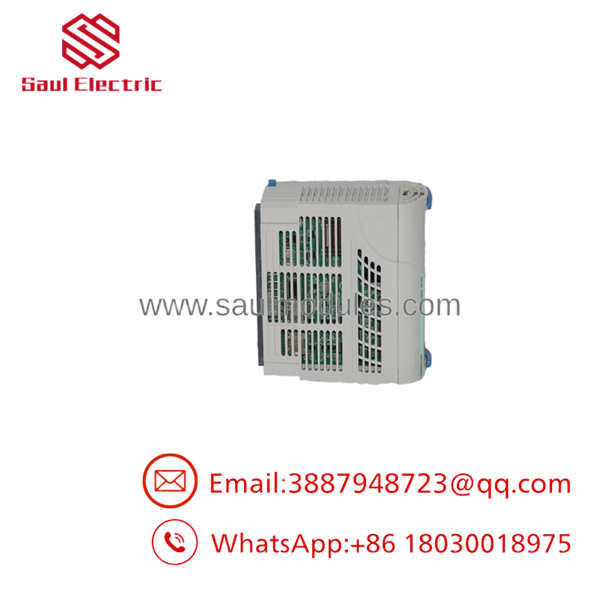

1C31189G01

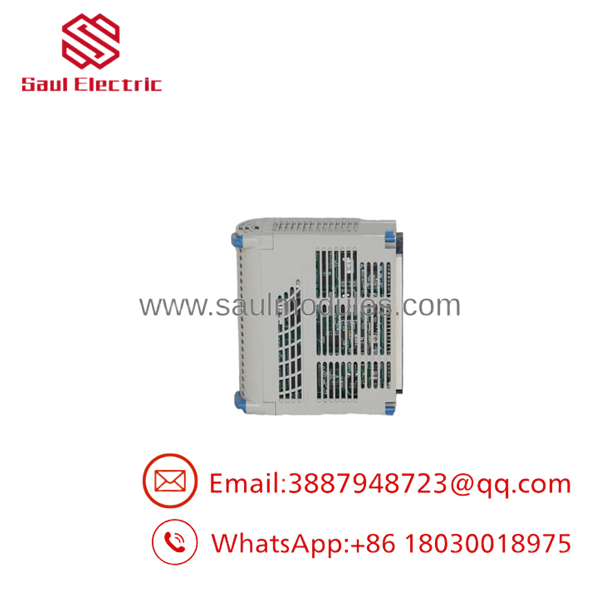

1C31189G01

Transparency SOP: Quality Assurance & Testing

We don’t just ship surplus boxes; we test them on actual Emerson Ovation racks. Our 5-step SOP includes:

1. Inbound Visual Inspection: Check for trace lifting, swollen capacitors, burnt logic ICs, and verify original Westinghouse/Emerson serial tags.
2. Backplane Interface & Power Test: Slot the card into an active Ovation baseplate to verify clean power rail distribution and system handshake detection.
3. Logic & Communication Stress Check: Drive continuous logic state changes through the module while monitoring bus transmission to guarantee zero dropped packets or timing faults.
4. Thermal Stress Chamber Test: Soak the board under active processing loads inside an elevated-temperature chamber to surface heat-induced component breakdown.
5. ESD-Safe Packaging: Seal the cleared module in anti-static shielding bags with custom foam packaging for transport safety.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check Onboard Jumpers Before Insertion: Always mirror the exact jumper configuration and DIP switch layout from your old board to the replacement 1C31189G01. One wrong jumper position can change addressing or bus timing, causing the entire sub-tier to fault out.
• ❗ Inspect the Baseplate Backplane Pins: Ovation baseplate backplanes are unforgiving. Align the card guides carefully and never force the module into the slot. A single bent connector pin on the backplane can short out the 24V power rail to the signal lines.
• ⚠️ Verify Firmware/Revision Level Alignment: Ensure the replacement module’s revision matches or exceeds the legacy board running in your rack. Mismatched logic revisions can throw non-critical timing warnings in Developer Studio or cause silent bus drops.
• ❗ Handle with Full ESD Protection: Legacy CMOS logic chips on these modules are extremely vulnerable to static discharge. Wear a grounded wrist strap when pulling the board from its anti-static bag and placing it into the chassis.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I hot-swap the 1C31189G01 while the Ovation controller rack is energized? A: Mechanically, the Ovation baseplate supports hot insertion. Practically, pulling or inserting a logic processing board live can disrupt running logic routines or drop downstream I/O sub-tiers. Place affected loops in manual or bypass before pulling the card.

Q: Is the 1C31189G01 compatible with older WDPF systems as well as Ovation? A: Yes, many 1C311-series modules were designed with cross-architecture backward compatibility in mind. Verify exact backplane footprint and firmware levels with your system drawing before swap-out.

Q: What is the main cause of failure for these logic modules? A: Heat and power supply ripple. Over years of continuous service in unconditioned or overcrowded cabinets, ambient heat dries out onboard electrolytic capacitors, causing logic ripple and unexpected controller resets.

Q: Why buy new surplus or refurbished instead of direct from the OEM? A: Factory lead times for legacy Ovation hardware can extend out for months. Our surplus modules are fully bench-tested, ready to ship today, and priced significantly below OEM list prices without compromising operational reliability.

Q: What warranty comes with this 1C31189G01 module? A: We cover this card with a full 12-month replacement warranty. If it fails on your test bench or in the field, we replace it immediately from our ready inventory.
