Emerson 1C31224G01 Analog Input Module

Description

Product Introduction & Engineering Value

The Emerson 1C31224G01 is the electronics core of the Ovation 14-bit Analog Input subsystem. It receives conditioned current signals from the associated personality module and performs analog-to-digital conversion before transferring process data to the Ovation Serial I/O Bus.

For engineers maintaining long-running Ovation installations, this module is a critical measurement path component. A failed analog input module can remove visibility from pressure transmitters, flow instruments, and process monitoring loops even when the field devices remain healthy.

Technical Specifications

Field Application & The “Trench” Experience

A refinery utility unit experienced multiple operator complaints about inaccurate flow indication on several cooling water circuits. The transmitters checked correctly at the field junction box, and loop calibrators confirmed stable 4-20mA signals.

The troubleshooting team moved upstream and found that the Ovation analog input channel was intermittently failing self-calibration. The failed electronics module was replaced with an Emerson 1C31224G01, while the existing personality module and field wiring remained unchanged. After replacement and channel verification, all eight measurement loops returned to normal operation.

The important lesson from the field: when several healthy transmitters appear to fail together, the shared I/O hardware should be investigated early.

Typical application scenarios:

• Boiler drum level transmitter monitoring using redundant 4-20mA inputs
• Feedwater flow measurement loops in turbine auxiliary systems
• Process pressure and differential pressure monitoring panels
• Cooling water and chemical dosing control instrumentation

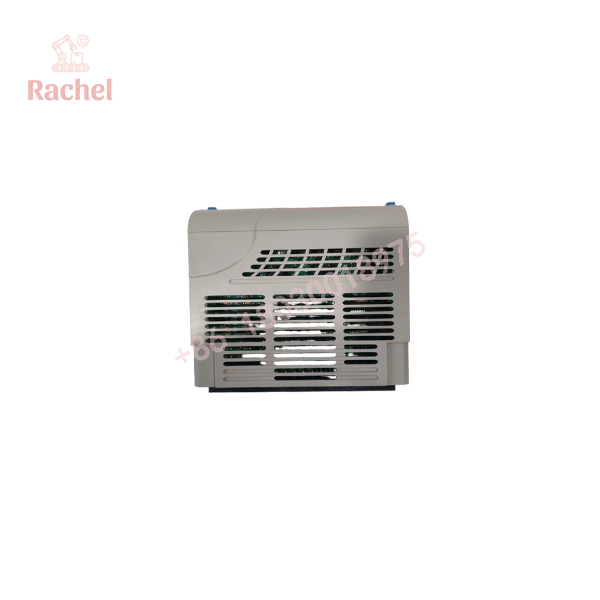

1C31224G01

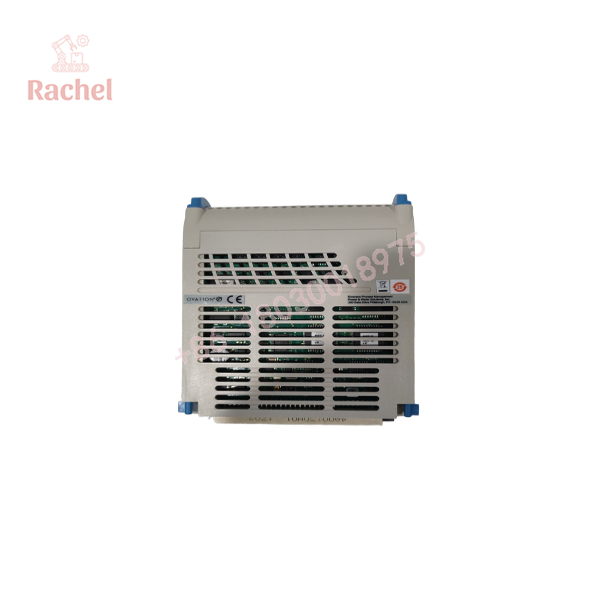

1C31224G01

Transparency SOP: QA & Testing

A used or New Surplus 1C31224G01 should be evaluated as a measurement device, not just a circuit board.

Inspection workflow:

1. Identification Review

• Confirm Emerson Ovation marking.
• Verify exact part number: 1C31224G01.
• Check hardware revision and label condition.

2. Physical Examination

• Inspect PCB surface.
• Check edge connectors and mounting points.
• Look for oxidation, contamination, or storage damage.

3. Electrical Verification

• Verify power-up behavior.
• Test analog input processing.
• Confirm channel diagnostics.
• Validate communication with Ovation I/O infrastructure.

4. Documentation

• Record serial number.
• Document test results.
• Maintain warranty and inventory status.

The Veteran’s Tech Trap Guide

⚠️ Trap #1: Confusing 1C31224G01 With 1C31224G02

These modules look similar but serve different signal types.

• 1C31224G01 → 4-20mA current input
• 1C31224G02 → ±1V voltage input

Installing the wrong electronics module can create incorrect scaling or complete signal loss.

⚠️ Trap #2: Forgetting the Personality Module Match

The electronics module is only part of the analog input assembly.

Correct pairing:

1C31224G01 + 1C31227G01

The personality module provides signal conditioning and protection functions before conversion.

⚠️ Trap #3: Assuming a Stable Loop Means the Input Card Is Healthy

A transmitter loop test may pass while the I/O electronics are degrading.

PRO TIP: Check:

• Channel diagnostics
• Self-calibration status
• Historical bad-quality flags
• Multiple affected channels

Dynamic FAQ

Q1. What is the Emerson 1C31224G01 used for?

The Emerson 1C31224G01 is an Ovation 8-channel analog input electronics module designed for 4-20mA current signal acquisition with 14-bit conversion capability.

Q2. How many analog inputs does 1C31224G01 support?

The module supports eight individually isolated analog input channels.

Q3. Is 1C31224G01 a complete analog input assembly?

No. The complete Ovation analog input subsystem consists of the electronics module and the matching personality module.

Required combination:

• Electronics Module: 1C31224G01
• Personality Module: 1C31227G01

Q4. Can 1C31224G01 replace 1C31224G02?

No. The two versions support different input signal types. The G01 version is designed for 4-20mA current inputs, while G02 is intended for ±1V voltage inputs.

Q5. What should buyers check before purchasing a New Surplus 1C31224G01?

Recommended verification points:

• Original Emerson labeling
• Correct G01 suffix
• Storage condition
• Connector quality
• Functional test documentation
• Warranty coverage

Q6. Is refurbished 1C31224G01 suitable for critical plant spare inventory?

Yes, if the module has passed analog signal testing, diagnostics verification, and communication checks. For legacy Ovation systems, tested refurbished units are commonly maintained as emergency replacements.
