Description
Product Introduction & Engineering Value
The 1C31227G01 is the current-input Personality Module used with an Ovation 14-bit analog-input assembly. It provides the field-side interface for eight 4–20 mA inputs, with support for both field-powered and locally powered configurations. The PMOD handles signal conditioning and protection before the signals reach the associated electronics module.
One important distinction: 1C31227G01 is the PMOD, not the complete analog-input module by itself. Emerson’s documentation describes the analog-input function as a combination of Personality Module and Electronics Module. The corresponding 8-channel, 14-bit current-input EMOD is 1C31224G01.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 1C31227G01 |
| Manufacturer | Emerson |
| Control Platform | Ovation DCS |
| Module Type | Analog Input Personality Module |
| Input Type | Current |
| Number of Channels | 8 |
| Nominal Input Range | 4–20 mA |
| Input Configuration | Field-powered or locally powered |
| Associated EMOD | 1C31224G01 |
| Overall Module Resolution | 14-bit |
| Channel Isolation | Individually isolated inputs in the complete analog-input assembly |
| Self-Calibration | On demand by the Ovation controller |
| Diagnostics | Internal faults, out-of-range detection, open-loop detection |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 0–95%, non-condensing |
The Ovation I/O reference manual states that the current-input configuration provides eight individually isolated input channels and supports 4–20 mA signals. It also documents self-calibration, out-of-range detection, and open-loop detection.
The manual also specifies 1000 V AC/DC dielectric isolation for both channel-to-channel and channel-to-logic isolation in the applicable analog-input module configuration.
Power configuration matters
The 1C31227G01 supports field-powered configurations. The Ovation reference documentation notes that, when this PMOD is used with the 14-bit analog-input module, the auxiliary power source can be obtained from the internal auxiliary supply.
For locally powered current inputs, the manual also specifies a grounding requirement involving jumper module 5A26471G01 at the power-distribution panel. That detail should be checked before changing an existing wiring configuration.
Field Application & the “Trench” Experience
Picture an older Ovation-controlled power plant with eight 4–20 mA transmitters connected to one analog-input assembly. One channel starts reporting a low reading. The transmitter checks correctly at the field end. Loop current is present.
Replacing the transmitter would be the easy answer.
It could also be the wrong answer.
The 1C31227G01 sits in the field-side portion of the analog-input architecture. Its circuitry provides signal conditioning and surge protection before the electronics module performs the analog-to-digital conversion. A failure in this path can therefore produce symptoms that resemble a transmitter or wiring problem.
A disciplined troubleshooting sequence should isolate the field instrument, loop wiring, PMOD, EMOD, and controller scaling independently.
Specific application scenarios
- Boiler drum-level transmitters: eight 4–20 mA process measurements brought into an Ovation controller.
- Feedwater and steam instrumentation: pressure, flow, or differential-pressure transmitters connected through isolated current-input channels.
- Turbine auxiliary monitoring: oil pressure, bearing temperature transmitter outputs, flow transmitters, and other conditioned 4–20 mA signals.
The exact transmitter type is not inherent to the PMOD. Verify the loop power arrangement and site wiring drawings before changing from field-powered to locally powered operation.

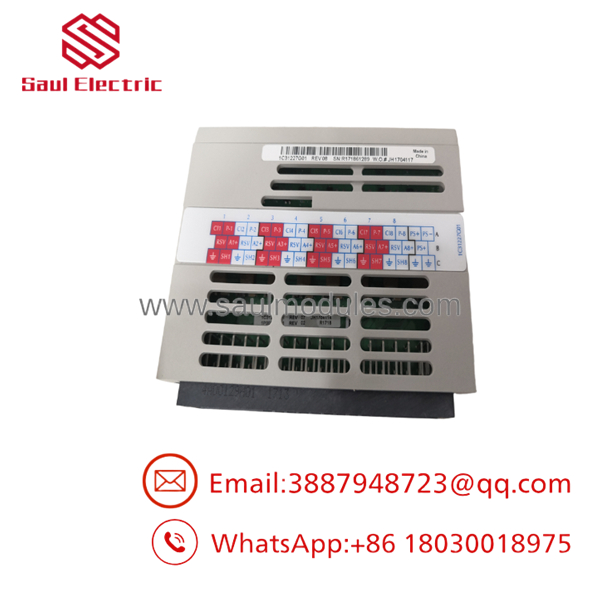

1C31227G01
Transparency SOP: QA & Testing
For New Surplus or refurbished 1C31227G01 stock, use a channel-by-channel inspection rather than relying on a simple power-up check.
1. Identity verification
Confirm the physical marking:
1C31227G01
Also record the board revision and any assembly numbers visible on the unit.
2. Configuration check
Confirm that the application requires an 8-channel current-input PMOD.
Do not substitute a voltage-input PMOD merely because it belongs to the same Ovation analog-input family.
3. Physical inspection
Inspect:
- Field connectors
- PCB condition
- Surge-protection components
- Connector pins
- Mounting/interface features
- Signs of corrosion
- Evidence of overheating or previous repair
4. Simulated-current test
Where suitable test equipment is available, apply representative current signals to all eight channels.
Check multiple points across the operating range rather than testing only at 4 mA.
For example:
4 mA → mid-range current → 20 mA
Then confirm that the corresponding Ovation electronics module reports the expected engineering value.
5. Fault testing
Where the test setup permits it, verify the response to:
- Open-loop condition
- Out-of-range current
- Loss of field power
- Channel-to-channel isolation
The reference manual specifically documents open-loop and out-of-range diagnostics for the analog-input function.
6. Documentation
For surplus procurement, record:
Part number → revision → condition → test results → packaging → warranty
Emerson itself states that factory-certified Ovation replacement parts are subject to procedures covering design, manufacture, installation, and testing.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP — Do not confuse the PMOD with the complete analog-input module.
1C31227G01 is the current-input Personality Module.
1C31224G01 is the 8-channel, 14-bit, 4–20 mA Electronics Module listed by Emerson.
The complete analog-input function depends on the correct EMOD/PMOD combination.
⚠️ Do not assume every 8-channel Ovation analog PMOD is interchangeable.
The Ovation family includes different input personalities. A voltage-input personality and a current-input personality can have very different field interfaces and signal-conditioning requirements.
⚠️ Check field power before rewiring.
The 1C31227G01 supports both field-powered and locally powered configurations. The grounding and auxiliary-power arrangement must match the existing installation.
PRO TIP: If one channel reads incorrectly, compare the suspect channel against a known-good channel using the same calibrated current source. That quickly separates a transmitter/loop problem from an I/O-channel problem.
Dynamic FAQ
What is Emerson 1C31227G01?
It is an Ovation 8-channel analog-input Personality Module for current signals, specifically associated with 4–20 mA inputs. Emerson’s factory data sheet gives it the description 8 Channel Analog Input, 14 Bit, Personality Module.
Is 1C31227G01 a complete 8-channel analog-input card?
Not by itself. It is the PMOD. Emerson’s architecture combines the Personality Module with an Electronics Module to form the analog-input assembly. The associated EMOD listed for the 8-channel 14-bit 4–20 mA configuration is 1C31224G01.
What signals does 1C31227G01 accept?
The documented configuration is 4–20 mA current input, with eight channels. The inputs can be configured for field-powered or locally powered operation.
Does 1C31227G01 provide channel isolation?
The applicable Ovation analog-input documentation specifies individually isolated input channels, with 1000 V AC/DC dielectric isolation between channels and logic in the documented configuration.
Is 1C31227G01 available as New Surplus?
Yes. Industrial automation suppliers currently list the part in new and refurbished conditions. For example, NEX Instrument currently lists it as brand new with a stated 12-month warranty, while Classic Automation lists used/refurbished inventory with its own warranty. These are supplier terms, not evidence of current OEM manufacture.
What should I request before purchasing?
Request a photograph of the actual 1C31227G01, the complete part-number marking, revision information, condition declaration, packaging status, test report, and written warranty. Most importantly, verify the associated EMOD and field-power configuration before treating the PMOD as a drop-in replacement.
