Description
Product Introduction
The Emerson 5X00225G01 is a specialized network/interface transceiver electronic module engineered for the Westinghouse / Emerson Ovation Distributed Control System (DCS). Deployed in power generation, water treatment, and large industrial processing facilities, this module bridges communication segments where immunity to electromagnetic interference (EMI) and electrical isolation across physical distances are critical.
By translating electrical backplane or network signals into optical channels (or managing high-speed line interfacing), the 5X00225G01 allows Ovation control cabinets to connect reliably across distant equipment bays and high-voltage transformer areas without risking ground loops or data degradation. In our field experience, replacing a failed interface module with an exact 5X00225G01 unit restores network link stability immediately without requiring re-configuration of node addresses or system topology in Ovation Developer Studio.
Key Technical Specifications
| Parameter | Value |
| Part Number | 5X00225G01 |
| Manufacturer | Emerson Process Management (Westinghouse) |
| System Architecture | Ovation DCS Communication / I/O Infrastructure |
| Function | Signal Conversion / Fiber Optic Transceiver / Network Interface |
| Signal Type | Optical / High-Speed Serial Interface |
| Isolation Rating | Complete Optical / Galvanic Isolation |
| Mounting | Plugs directly into Ovation I/O / Communication Base Unit |
| Operating Temp | 0°C to +60°C (Standard Cabinet Ambient) |
Application Scenarios & The “Trench” Experience
A combined-cycle power plant experienced intermittent communication loss between its main control room Ovation rack and a remote water treatment I/O cabinet located 300 meters away. Operators logged frequent “Node Offline” alarms, and the remote I/O link would drop whenever heavy switching occurred in the adjacent high-voltage yard. Troubleshooting revealed signal attenuation and thermal degradation inside the optical transceiver stage of the existing interface module.
- Power Generation Facilities – Remote I/O Link – Connects remote turbine or balance-of-plant I/O cabinets to central controllers across high-EMF zones.
- Substation Interfacing – Electrical Isolation – Eliminates potential ground loops between power island enclosures and control room racks.
- Large Industrial Facilities – Long-Distance Network Extensions – Maintains high-speed signal integrity across multi-building DCS architectures.
The instrument technician hot-swapped the faulty module with a bench-tested 5X00225G01 surplus unit. The optical Link LED turned solid green immediately, communications were fully restored, and the remote I/O node re-established dual-redundant tracking within seconds without needing a controller reboot.

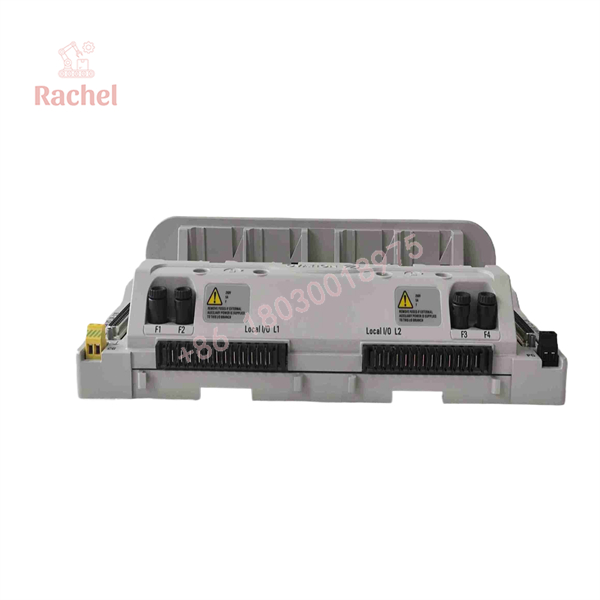

5X00225G01

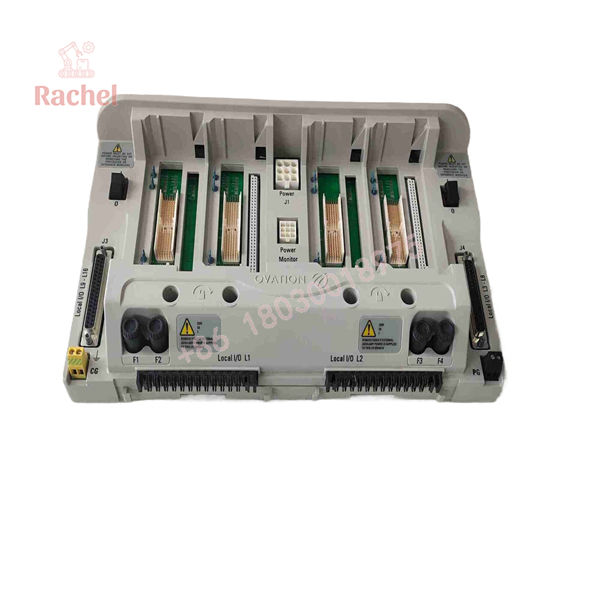

5X00225G01
Transparency SOP: Quality Assurance & Testing
We do not just ship modules; we test them on live Emerson Ovation controller test racks. Every 5X00225G01 electronic module undergoes the following verification process:
- Inbound Visual & Connector Inspection: Checking edge connectors, alignment rails, and optical/electrical ports for dust, physical wear, or pin deformation.
- Optical / Electrical Signal Power Test: Measuring optical output power levels and receiver sensitivity to ensure signals meet OEM attenuation tolerances.
- High-Speed Data Throughput Verification: Stress-testing the data path under maximum baud rate traffic using an Ovation test rack to confirm zero dropped packets or CRC errors.
- Thermal / Burn-In Diagnostics: Running the module under operational load inside a elevated-temperature bench setup to screen for thermal drift.
- ESD Shielding Packaging: Sealing the module inside anti-static ESD bags with protective port covers and packing it in custom shock-dampening foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Inspect Optical Fiber Connectors Before Insertion: If using optical ports, clean all fiber patch cable connectors with an isopropyl alcohol wipe or optical cleaner cassette before plugging them in. Dust or oil on the fiber tips can cause significant signal loss (>3 dB) and trigger intermittent link drops.
- ❗ Verify Redundant Pair Compatibility: In dual-redundant Ovation network setups, ensure that both primary and backup transceiver modules are of matching revision levels (G01) to prevent link failover timing discrepancies.
- ⚠️ Align Track Guides Prior to Hot-Swapping: While Ovation hardware supports online replacement, forcing the module into its base unit without proper track alignment can damage edge connector pins on the backplane.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 5X00225G01 hot-swappable?
A: Yes. Like most Ovation electronic modules, it can be replaced while the base unit is powered, provided the system network is operating normally or running on a redundant link.
Q: Do I need to reconfigure software parameters when replacing this card?
A: No. The 5X00225G01 operates as a physical layer/interface module. Replacing it with an identical 5X00225G01 unit requires no software configuration or node re-addressing.
Q: What do the front-panel LEDs indicate?
A: Front-panel status LEDs typically display Power/Health (Green), Active Transceive/Link status (Green/Amber), and Error/Fault state (Red) for easy visual diagnostics.
Q: Is a companion base or personality module required?
A: Yes. The electronic module plugs into a designated Ovation base unit that routes backplane power and field/network cabling.
Q: What warranty comes with this surplus Ovation module?
A: Every new surplus and rig-tested 5X00225G01 module is backed by our full 12-month replacement warranty.
