Description
Product Introduction & Engineering Value
The 5X00605G01 is not best described as a conventional analog-input card. Its documented application is Sequence of Events (SOE) acquisition: 32 discrete, 48 VDC field inputs are brought into the Ovation system for event monitoring. This makes it particularly relevant to breaker status, relay operation, trip contacts, and other discrete signals where the order of events matters.
The module works with 1X00884H01, the associated Personality Module. For replacement planning, that EMOD/PMOD relationship is more important than a generic reseller label such as “I/O module” or “analog input.”
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 5X00605G01 |
| Manufacturer | Emerson / Westinghouse |
| Control System | Ovation DCS |
| Module Type | Sequence-of-Events Digital Input EMOD |
| Number of Channels | 32 |
| Input Voltage | 48 VDC |
| Input Type | Digital / contact |
| Input Configuration | Single-ended |
| Input Characteristics | Current-sourcing |
| Primary Application | Sequence-of-Events acquisition |
| Associated PMOD | 1X00884H01 |
| Architecture | EMOD + PMOD |
A 2025 Ovation migration document provides particularly useful confirmation: it specifies 5X00605G01 as the EMOD and 1X00884H01 as the PMOD for a 32-channel, 48 VDC single-ended current-sourcing digital-input Sequence-of-Events application.
A note on conflicting reseller specifications
Several third-party product pages incorrectly describe 5X00605G01 as an analog-input module, with conflicting claims of 8, 16, or 32 analog channels and various signal ranges.
That information should not be used as the primary technical reference.
The migration documentation gives a much more specific hardware identification: 32-channel SOE digital input, 48 VDC, single-ended current-sourcing, with 5X00605G01 / 1X00884H01 as the EMOD/PMOD combination.
5X00605G01

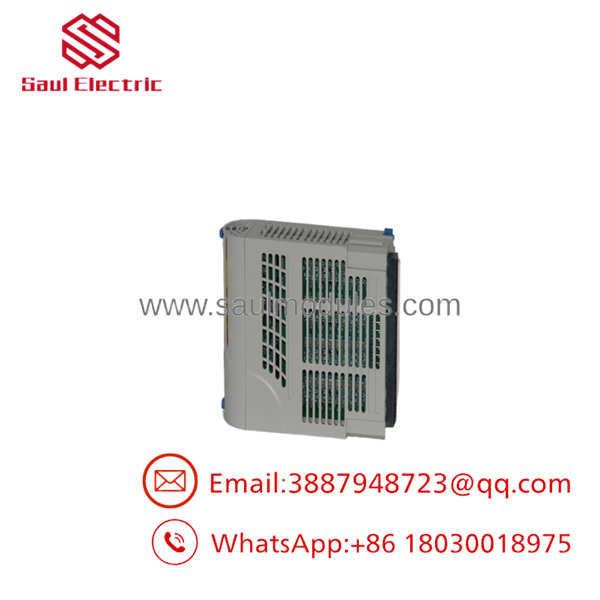

5X00605G01

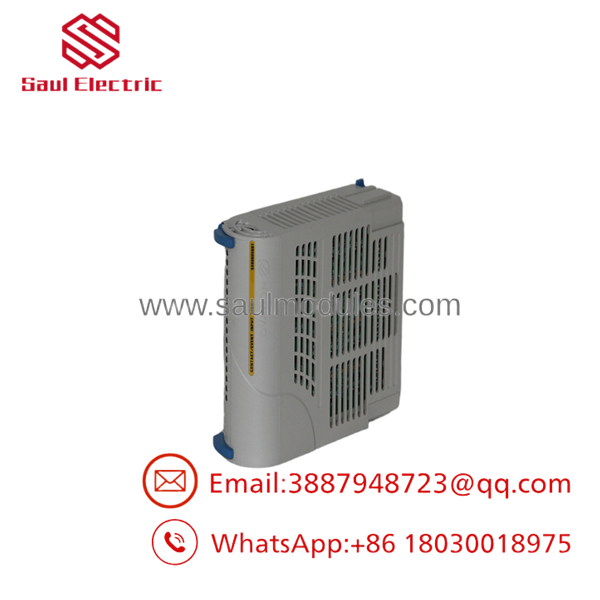

5X00605G01
Field Application & the “Trench” Experience
A generator protection event can unfold in milliseconds.
The breaker trips. A protection relay changes state. An interlock follows. A permissive disappears. The control room sees the final trip indication, but the maintenance team needs to know what happened first.
That is where an SOE input subsystem earns its place.
The 5X00605G01 is used for discrete event acquisition rather than continuous analog measurement. In an Ovation installation, signals such as breaker auxiliary contacts, protection-relay contacts, and trip indications can be brought into the control system for sequence analysis. The documented configuration uses 32 channels at 48 VDC.
Specific application scenarios
- Generator breaker SOE monitoring: breaker open/close contacts, protection relay outputs, and trip indications.
- Turbine protection sequence analysis: trip relay, permissive, overspeed, and shutdown contacts.
- Boiler protection events: burner-management and protective relay status transitions.
- Switchgear event recording: discrete relay and breaker-status changes requiring chronological analysis.
Transparency SOP: QA & Testing
For New Surplus or refurbished 5X00605G01 stock, do not accept an “analog input test” as evidence that the module is correct. Test it as a 32-channel digital SOE input EMOD.
1. Verify the identity
Confirm:
5X00605G01
Then verify the associated PMOD:
1X00884H01
The EMOD/PMOD pairing is explicitly documented in the Ovation migration material.
2. Inspect the hardware
Check the actual module for:
- Damaged connectors
- Bent pins
- Corrosion
- Heat damage
- Contamination
- Previous repair work
- Incorrect or altered labels
3. Verify the field voltage
The documented configuration is 48 VDC.
Do not connect a generic 24 VDC digital-input test source simply because another Ovation I/O module uses 24 VDC.
4. Exercise all channels
A proper acceptance test should exercise the available input channels rather than checking only one representative channel.
Use a controlled digital-input simulator and verify:
OFF → ON
and, where required:
ON → OFF
5. Verify SOE behavior
Where a suitable Ovation test environment is available, confirm that each input transition is correctly recognized and associated with the expected channel.
For a Sequence-of-Events application, the event-processing behavior is just as important as simple input detection.
6. Document the unit
For surplus procurement, record:
Part number → revision → PMOD → input voltage → channel test → SOE test → condition → warranty
Radwell currently lists 5X00605G01 as discontinued by the manufacturer and offers new, never-used, and refurbished condition categories with its own warranty.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP — Do not call 5X00605G01 an analog-input module.
That description appears on several reseller pages, but the more specific technical documentation identifies this hardware as the 32-channel, 48 VDC Sequence-of-Events digital-input EMOD.
⚠️ Check the PMOD.
The documented pairing is:
5X00605G01 EMOD + 1X00884H01 PMOD
Do not purchase the EMOD in isolation without verifying the existing PMOD and field wiring.
⚠️ 48 VDC matters.
This is a 48 VDC single-ended current-sourcing input configuration. A generic 24 VDC digital-input module is not automatically an acceptable substitute.
PRO TIP: If your cabinet contains legacy field wiring from another DCS platform, check the migration drawing before changing the I/O hardware. One documented Ovation migration arrangement retains the existing process connection and wiring while adapting it to the Ovation EMOD/PMOD architecture.
Dynamic FAQ
What is Emerson 5X00605G01?
It is an Ovation Sequence-of-Events digital-input Electronics Module used for 32 discrete field inputs in the documented 48 VDC configuration.
How many channels does 5X00605G01 have?
The documented configuration provides 32 digital input channels.
What input voltage does it use?
The documented SOE configuration uses 48 VDC single-ended current-sourcing digital inputs.
What PMOD is used with 5X00605G01?
The associated Personality Module is 1X00884H01. The EMOD/PMOD combination is explicitly shown in the Ovation migration documentation.
Is 5X00605G01 an analog-input module?
No—not for the documented configuration. Several reseller listings use that description, but the stronger technical documentation identifies it as a 32-channel Sequence-of-Events digital-input module.
Is 5X00605G01 discontinued?
Radwell currently identifies the part as discontinued by the manufacturer while listing new, never-used, and refurbished inventory.
For a New Surplus purchase, request an actual-unit photograph, complete 5X00605G01 marking, revision information, associated PMOD identification, test evidence, packaging details, and written supplier warranty.
