Emerson A6824 Modbus Interface Module

Description

Product Introduction & Engineering Value

The A6824 sits on the communication side of an AMS 6500 installation rather than performing the primary vibration or displacement measurement itself. It reads parameters from the monitoring modules installed in the rack and exposes those values through Modbus for integration with plant control and supervisory systems.

This distinction matters during replacement. The A6824 is a 6 TE, non-redundant module for the IMR 6000 series, while the A6824-R is a different 4 TE module intended for redundancy applications in the AMS 6500 system. Emerson explicitly separates these ordering variants.

Technical Specifications

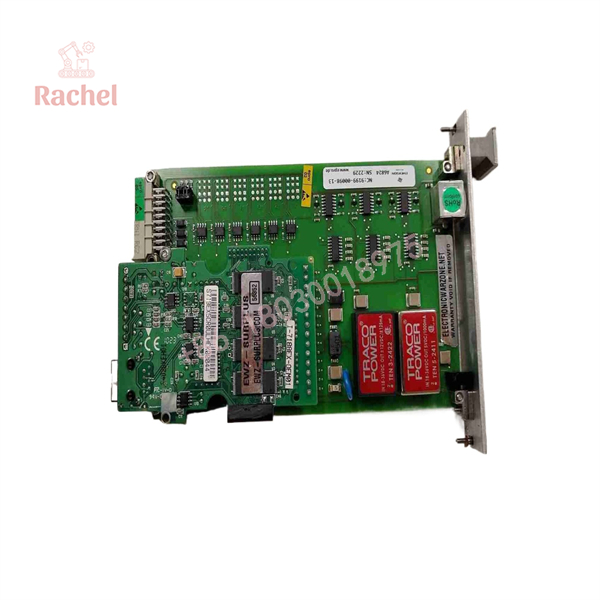

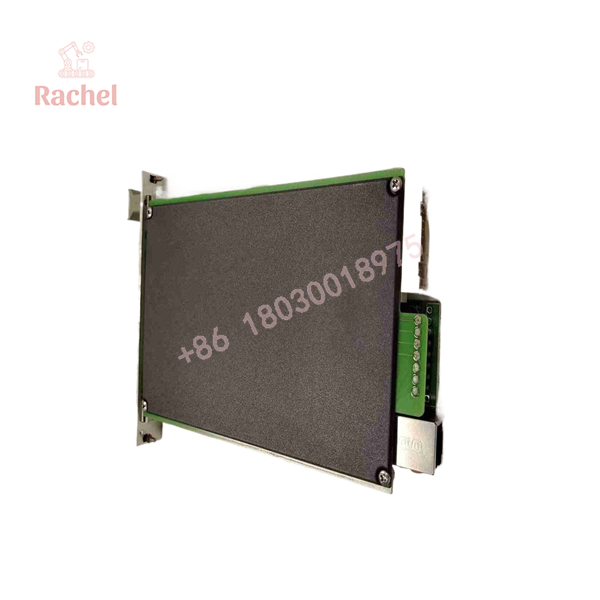

These values are taken from Emerson’s protection-card documentation. The A6824 occupies one rack slot and has a 30 mm width, 128.4 mm height, and 160 mm card length. Emerson lists maximum power consumption as 5 W.

A6824

A6824

Field Application & the “Trench” Experience

A common replacement situation is an older machinery-monitoring rack that continues to collect vibration, speed, gap, and phase information correctly, while the DCS has suddenly stopped receiving those values. The temptation is to troubleshoot the individual monitoring cards first.

That can send the technician in the wrong direction.

If the local AMS rack continues to report healthy channels but the supervisory system loses the machinery data stream, the A6824 communication path becomes a logical point of investigation. Its purpose is specifically to read parameters from the rack modules and expose them through Modbus.

Specific application scenarios

• Steam-turbine monitoring integration — transferring vibration, speed, gap, and alarm information from an AMS 6500 rack to a plant control system.
• Gas-compressor condition monitoring — providing Modbus-accessible machinery parameters to SCADA or DCS systems.
• Hydro-turbine machinery monitoring — integrating rack-level protection and condition-monitoring information with a higher-level supervisory system.
• Multi-rack machinery monitoring — Emerson specifically states that an A6824 can serve multiple 19-inch racks.

Emerson describes the AMS 6500 platform as an online machinery-health monitoring system used for critical rotating equipment, including turbines, compressors, and other machinery.

Transparency SOP: QA & Testing

For New Surplus or refurbished A6824 inventory, the useful test is not simply “power on and LED lights.”

A practical inspection sequence:

1. Identity verification — confirm A6824 rather than A6824-R and record the available model/revision information.
2. Physical inspection — examine the Eurocard PCB, front panel, connector pins, handle, and identification plate.
3. Power-up check — verify the power-status indication and inspect for abnormal heating or component damage.
4. Communication check — where suitable AMS 6500/IMR 6000 test equipment is available, verify the Modbus communication interface.
5. Protocol verification — check the configured Ethernet or serial communication path against the customer’s existing architecture.
6. Final documentation — record test conditions and available serial/model information before shipment.

Emerson identifies the A6824 as a hot-swappable module with self-checking facilities covering the monitoring hardware, power input, and hardware temperature.

The Veteran’s Tech Trap Guide

⚠️ A6824 and A6824-R are not interchangeable by model number alone.
The standard A6824 is a 6 TE module with no redundant option for the IMR 6000 series. A6824-R is a 4 TE redundant module for AMS 6500 systems. Verify the installed rack and exact suffix before ordering.

⚠️ Do not diagnose the A6824 as a measurement card.
It does not replace an A6110, A6210, A6312, A6410, or another measurement module. Its role is to gather parameters from those modules and expose them through Modbus.

PRO TIP: Record the existing Modbus configuration before replacing the card. Emerson documents a default IP address of 192.168.255.1 and a default subnet mask of 255.255.255.0. A replacement communication card may therefore require configuration to match the plant network rather than simply being inserted and left at defaults.

⚠️ Serial Modbus settings are specific.
The Emerson specification identifies 19.2 kbaud, 8 data bits, even parity, and 1 stop bit. If the plant uses the RTU interface, verify the existing communication settings rather than assuming a generic Modbus configuration.

Dynamic FAQ

1. What is the Emerson A6824 used for?

The A6824 is a Modbus and Rack Interface Module. It reads parameters from AMS 6500 monitoring modules and makes those parameters available through Modbus TCP/IP or Modbus RTU.

2. What data can the A6824 communicate?

Emerson gives examples including speed, vibration components such as 1/2X and 1X, gap value, alarm state, channel OK status, and phase. The exact available parameters depend on the monitoring modules installed in the rack.

3. Which rack is the standard A6824 designed for?

Emerson’s ordering information specifies the A6824 for IMR 6000/10, IMR 6000/20, and IMR 6000/30 racks. The A6824-R is separately specified for AMS 6500 systems with redundancy.

4. Does A6824 support Ethernet Modbus?

Yes. The specification identifies Modbus Ethernet through an RJ45 10Base-T interface. It also supports Modbus RTU through the serial interface.

5. Is the A6824 hot-swappable?

Yes. Emerson describes the A6824 as a hot-swappable, 3U, 1-slot plug-in module. Site maintenance procedures should still be followed before removing a communication module from an operating machinery-protection system.

6. Is an A6824 New Surplus unit factory-new?

“New Surplus” should be treated as a stock condition, not automatically as proof of current factory production status. Before purchase, verify the exact model marking, physical condition, serial information where available, inspection/test coverage, and written warranty terms.

7. What should I verify before ordering an A6824 replacement?

At minimum, verify A6824 versus A6824-R, installed rack type, communication method, network settings, and the required Modbus configuration. For an operating machinery-monitoring system, matching the communication hardware alone is not sufficient; the replacement should fit the existing rack architecture and configuration.
