Emerson Bristol 396352-01-4 ControlWave AI Module

Description

Product Introduction

The Bristol ControlWave 396352-01-4 is a high-density 16-point analog input module built for the Emerson ControlWave Hybrid Controller and RTU platform. Engineered specifically for remote telemetry and process automation, this card handles 4-20mA instrumentation loops across critical infrastructure networks.

Unlike lower-density cards that clog rack backplanes, the 396352-01-4 consolidates 16 distinct analog loops into a single slot with local field termination connections. Its onboard signal conditioning circuit mitigates common-mode electrical noise, delivering stable analog-to-digital conversions for flow, pressure, and temperature measurements in harsh field environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2 AM on a freezing night in West Texas. A custody transfer gas metering station drops offline because lightning induced a high-voltage surge down an ungrounded 4-20mA transmitter loop, cooking channels 1 through 4 on the main analog card. The RTU stops reporting differential pressure, and SCADA trips a false line-break alarm.

In our field experience, keeping a spare 396352-01-4 module in your service truck turns an all-night diagnostic nightmare into a 15-minute card swap. Drop the new board into the chassis, seat the termination block, and watch the telemetry reconnect immediately.

• Oil & Gas Telemetry – Wellhead monitoring and gas custody transfer – Measures differential pressure, static pressure, and process temperature inputs.
• Water & Wastewater – Lift station monitoring – Integrates level transmitters and flow meters across remote pump stations.
• Pipeline Management – Valve control stations – Receives continuous valve position feedback and line pressure inputs.
• Power Distribution – Substation monitoring – Tracks transformer oil temperature and environmental analog sensors.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bristol ControlWave racks. Here is how we verify every 396352-01-4 module before it leaves our facility:

1. Inbound Physical Inspection: Inspect edge connectors, check for thermal stress marks on input resistors, and verify genuine OEM serial labels.
2. Backplane Handshake Test: Seat the card into a live ControlWave rack to verify backplane boot sequence, firmware recognition, and status LED operation.
3. Loop Current Precision Calibration: Inject precise 4.00mA, 12.00mA, and 20.00mA signals into all 16 channels using a calibrated Fluke process meter to confirm A/D accuracy.
4. Thermal Burn-In: Run the module under full field loop load inside a test rack for 4 hours to verify zero thermal drift on signal conversions.
5. Final Clean & ESD Packaging: Treat contacts with electronics cleaner and vacuum-seal inside anti-static shielding with fresh desiccant.

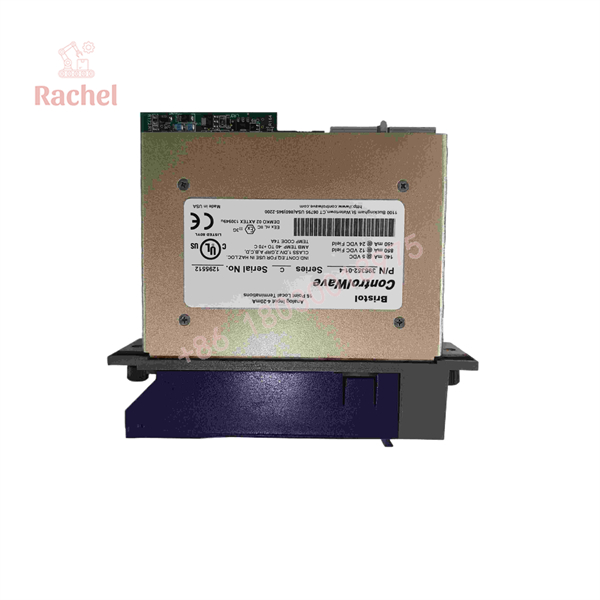

396352-01-4

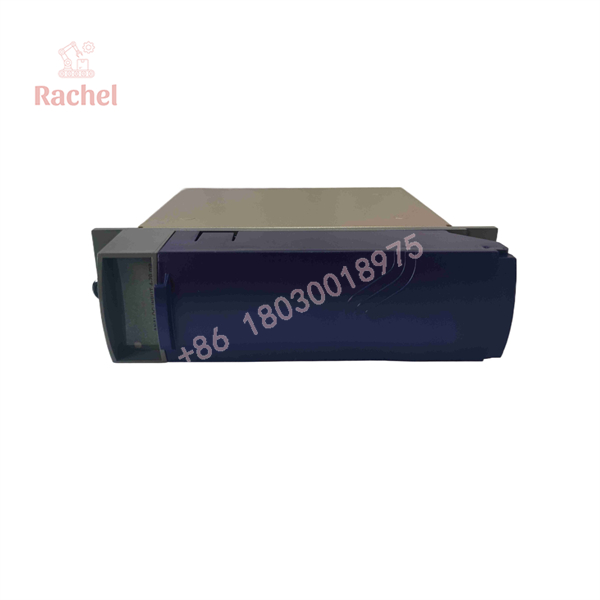

396352-01-4

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Watch Out for Current Loop Resistor Fusing! If a field transmitter shorts to 24V, the precision sense resistor on that channel will blow. If a channel reads fixed 0mA despite a healthy loop, check the surface-mount input dropping resistors before condemning the whole RTU.
• ❗ Verify Series Revision Compatibility! Pay close attention to the dash suffix and series letter (e.g., Series C). Mixing older Series A/B local termination assemblies with Series C carrier boards can cause mechanical binding or unaligned terminal headers.
• ⚠️ Ground Your Cable Shields at One End Only! When running long analog loops to this card, terminate the shield drain wire at the ControlWave panel ground bus—never at both the sensor and RTU. Dual-grounding creates ground loops that destroy 4-20mA signal resolution.
• ❗ Take a Photo of DIP Switches and Jumpers: Before pulling an old card, snap a high-res photo of any onboard jumper blocks used for 1-5V vs. 4-20mA selection. Trust me.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Bristol ControlWave 396352-01-4 hot-swappable? A: No. Always power down the I/O rack or disconnect field power before removing or inserting the module to prevent electrical transients from damaging backplane drivers.

Q: Does this card supply loop power to field transmitters? A: Yes, the card routes field power (12 VDC or 24 VDC depending on system configuration) directly through its local termination pathways to power 2-wire loops.

Q: Can I configure individual channels for 0-10V inputs instead of 4-20mA? A: The 396352-01-4 is natively populated for 4-20mA current loops using precision internal shunt resistors. Voltage configurations require specific jumper setups or external conditioning modules.

Q: What warranty comes with this module? A: We provide a full 12-month replacement warranty from the invoice date on all New Surplus and Refurbished Bristol units.

Q: Why is your surplus pricing lower than ordering directly from the OEM? A: We source unused surplus inventory directly from completed pipeline projects, plant upgrades, and strategic liquidations. You get 100% genuine Emerson / Bristol hardware without waiting months for factory lead times.
