Emerson FX-316CE Control Techniques FX Servo Drive 230V

Description

Product Introduction

The Emerson / Control Techniques FX-316CE is a industrial servo drive designed for high-dynamic single-axis motion application profiles. Operating on a 230VAC power stage, the FX-316CE handles 16 Amps of continuous current output, driving brushless AC motor lines across automated packaging, material handling, and custom machinery. The “CE” designation indicates integrated EMC filtering compliance to withstand noisy industrial electrical cabinets.

Engineered with onboard logic processing, high-speed loop execution, and flexible feedback options, the FX-316CE interfaces with master controllers via analog commands, pulse/direction signals, or serial fieldbus loops. For plant engineering teams running legacy production lines powered by older Control Techniques drive infrastructure, holding a bench-verified FX-316CE on the shelf prevents catastrophic downtime when an aging drive suffers a power-stage failure.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

We ran into a critical situation at a regional high-speed bottling facility where a secondary cartoning axis tripped out on over-temperature. The drive’s internal power stage shorted after years of continuous cycling in a hot 104°F (40°C) enclosure. The line was dumping product at the feed table, costing the plant over $8,000 per hour in scrap and lost throughput. Rewiring the cabinet for a modern drive platform would have meant two days of panel work and PLC program alterations. Swapping in a drop-in FX-316CE unit cleared the trip state, restored axis homing, and got the bottling line back to full capacity before the end of the shift.

• High-Speed Packaging: Driving indexing rotary knives, carton pushers, and flying cutoff mechanisms.
• Material Handling Skids: Controlling transfer shuttles and high-speed vertical lift axes.
• CNC & Metal Forming: Managing auxiliary tool feeders and sheet metal positioning axes.
• Textile Machinery: Precision tension control and thread winding applications demanding fast torque loop response.

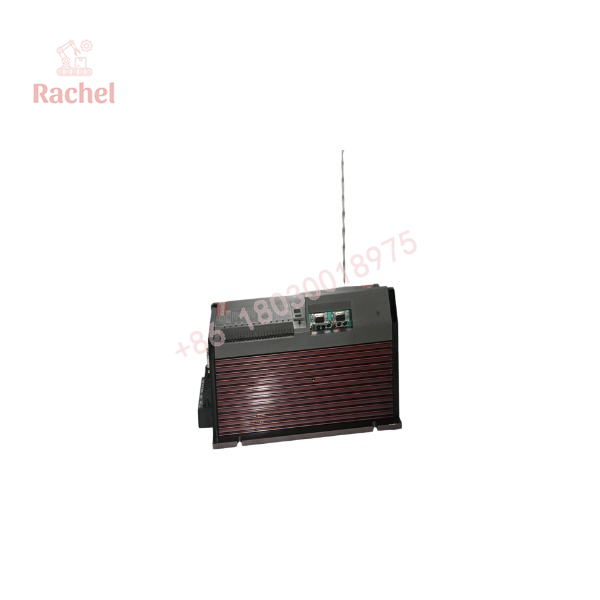

FX-316CE

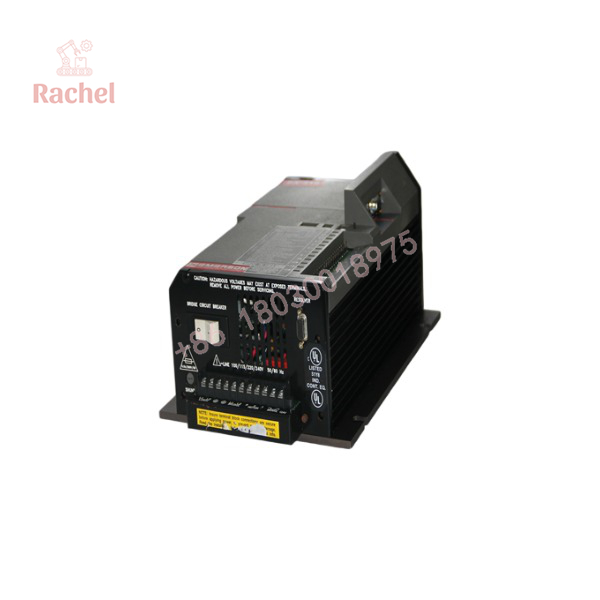

FX-316CE

Transparency SOP: Quality Assurance & Testing

We never ship raw, unverified electrical surplus. Every Emerson FX-316CE undergoes a rigorous 5-step bench test before entering anti-static inventory:

1. Inbound Visual & Hardware Audit: Inspect the heatsink, cooling fan assembly, front connectors, and internal PCBs for thermal degradation or component stress.
2. Cold Component Diode Checks: Check internal IGBT modules, bridge rectifiers, and DC bus capacitors with an oscilloscope and digital multimeter for electrical shorts.
3. Power-On Self-Test (POST): Apply rated 230VAC control and power voltages to confirm internal rail regulation, keypad display health, and zero baseline fault codes.
4. Live Closed-Loop Motor Run: Wire the drive to a test servo motor, executing high-speed acceleration/deceleration profiles, ±10V analog speed loops, and current-limit checks.
5. Clear & ESD Packaging: Factory-reset user parameters, clean external surfaces, log serial codes, and wrap the unit in anti-static protective bubble packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Resolver vs. Encoder Feedback Board Setup: The FX-316CE can accept different feedback options depending on internal option cards or pin jumpering. Do not plug in an encoder-based servo motor if the drive was configured for a resolver unit. Wiring mismatched feedback hardware will trigger instant position-loss trips or erratic motor runaways upon power-up.

❗ Internal Parameter Backup: Always dump or record parameter tables using the handheld keypad or software before pulling a failed FX-316CE! Drive gain settings, current limits, and feedback scaling factors are stored in local drive memory. Dropping a replacement drive into a machine without transferring the custom configuration will leave your motor uncalibrated or failing to enable.

⚠️ External Braking Resistors: High-inertia stopping applications generate significant regenerative energy back into the drive. Verify that your external braking resistor is wired properly to the designated regen terminals. Running heavy dynamic stopping routines without checking the braking resistor circuit can over-voltage the internal DC bus and blow the power stage.

Frequently Asked Questions (FAQ)

Q: Is the Emerson FX-316CE hot-swappable while the main panel is powered?

A: No. Never remove or install control connectors or main AC input power terminal blocks while power is applied. Always disconnect incoming main power and wait at least 5 minutes for the DC bus capacitors to discharge safely before performing swap-outs.

Q: What does the “CE” suffix indicate on this specific model?

A: The “CE” suffix indicates that the drive includes factory-integrated EMC (Electromagnetic Compatibility) filtering designed to suppress high-frequency line noise and comply with European Union industrial noise standards.

Q: Can I use this drive with non-Emerson servo motors?

A: Yes. Provided the motor matches the voltage class, continuous current capability (16A), and feedback type (resolver or quadrature encoder), the FX-316CE can be tuned to run standard third-party AC brushless servo motors.

Q: Why choose a surplus FX-316CE over a full modern drive retrofit?

A: A surplus FX-316CE is a true 1:1 drop-in replacement. You retain your existing panel wiring, mounting dimensions, PLC communications, and motor cables without incurring heavy engineering costs or extended machine downtime.

Q: What warranty coverage comes with this unit?

A: Every Emerson FX-316CE drive provided comes backed by a full 12-month operational replacement warranty from our engineering test facility.
