Emerson KJ1501X1-BB1 DeltaV System Power Supply Module

Description

Product Introduction

The Emerson KJ1501X1-BB1 (often cross-referenced under assembly part numbers 12P0678X042 and VE5002) is a system power supply module engineered for the Emerson DeltaV Distributed Control System (DCS). Operating as a backbone power source within DeltaV 2-slot and 8-slot carrier assemblies, the KJ1501X1-BB1 conditions bulk 24 VDC plant power and steps it down to provide isolated, regulated power for local controllers, I/O interface cards, and communication sub-modules.

When a primary power module in a DeltaV rack suffers component aging or internal DC rail failure, swapping in a pre-tested KJ1501X1-BB1 module restores full power redundancy without interrupting active process loops or controller execution.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a continuous turnaround at a petrochemical refinery, a DeltaV I/O node controlling critical hydrocarbon distillation loops generated a primary power supply alarm. The secondary redundant power module took over instantly, maintaining process control. However, running on a single non-redundant power module posed an unacceptable risk for plant safety. Maintenance needed to hot-swap the faulted supply immediately without disturbing the active controller on the same backplane. Plugging in a bench-verified KJ1501X1-BB1 replacement module re-established 1:1 power redundancy on the carrier rack within minutes, eliminating the risk of a full node shutdown.

• Refinery & Petrochemical Processing: Delivering stable, low-noise power to DeltaV controllers managing safety instrumented loops.
• Pharmaceutical Manufacturing: Supplying reliable DC power to batch processing controllers where power interruption corrupts batch records.
• Offshore Oil & Gas Platforms: Operating across wide temperature ranges in remote, hazardous-rated instrument cabinets.
• Water & Wastewater Treatment: Powering distributed I/O racks monitoring pumping stations and chemical dosing lines.

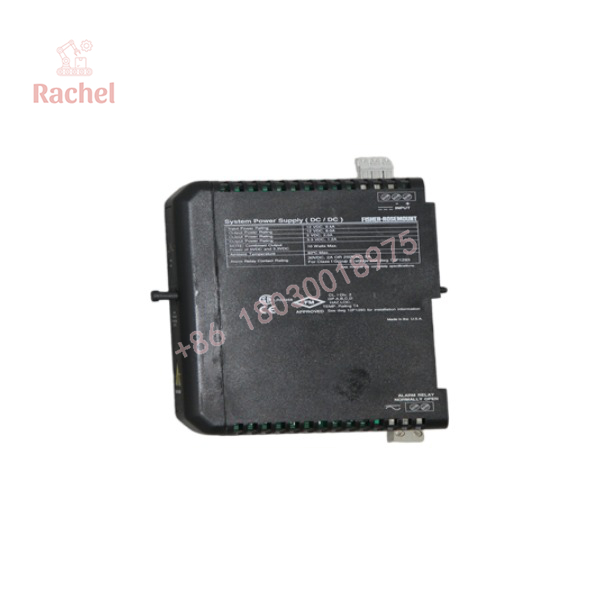

KJ1501X1-BB1

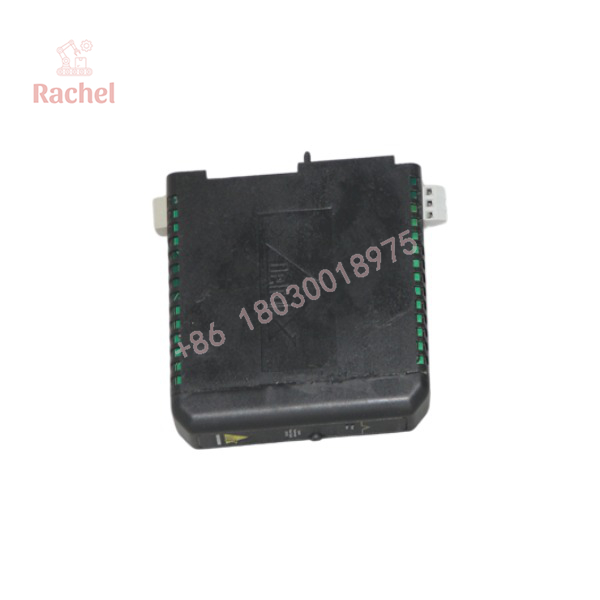

KJ1501X1-BB1

Transparency SOP: Quality Assurance & Testing

Every Emerson KJ1501X1-BB1 power supply module undergoes a 5-step engineering qualification check before entering static-shielded storage:

1. Inbound Physical Audit: Inspect backplane connector pins, side latching clips, chassis plastic housing, and front panel silkscreen labels for wear or thermal damage.
2. Cold Resistance Check: Measure input terminal resistance and internal bus lines with a digital multimeter to confirm zero dead shorts across primary rails.
3. Full Voltage Load Test: Mount the module onto an active DeltaV test carrier, energize the 24 VDC input, and apply full rated current load across output rails while checking voltage stability with an oscilloscope.
4. Redundancy & Alarm Relay Verification: Simulate input power loss and voltage dips to confirm proper alarm relay state transitions and LED diagnostic switching.
5. Clean & ESD Protective Packaging: Clean module surfaces, apply connector protective covers, and package the unit in heavy metallic static-shielding material.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Verify Carrier Keying Pin: Emerson DeltaV power modules utilize physical carrier keying to prevent incorrect module insertion. Ensure the keying position on your carrier slot matches the KJ1501X1-BB1 keying before seating the card; forcing an mismatched card can break carrier guide pins.

❗ Check Bulk 24V Input Supply Quality: Unregulated or noisy external 24 VDC power supplies feeding the DeltaV carrier can cause premature failure of the input filtering capacitors on the KJ1501X1-BB1. Ensure bulk 24V power supplies feature clean ripple voltage (<100mV p-p) and proper surge protection.

⚠️ Hot-Swapping Best Practices: While DeltaV power modules are designed for online replacement, always verify that the redundant power supply module’s “POWER OK” LED is solid green before pulling the faulted KJ1501X1-BB1 module. Removing a non-redundant or single power supply will instantly drop the controller and connected I/O cards.

Frequently Asked Questions (FAQ)

Q: Are KJ1501X1-BB1, 12P0678X042, and VE5002 the same module?

A: Yes. is the core model number, 12P0678X042 is the board assembly part number, and VE5002 is the Emerson system order code. They refer to the exact same physical module.

Q: Can I run a single KJ1501X1-BB1 power supply instead of a redundant pair?

A: Yes. A single KJ1501X1-BB1 can power a controller and its local I/O carrier. However, adding a second module provides 1:1 power redundancy to prevent node downtime if one supply fails.

Q: What does a solid red LED on the front panel indicate?

A: A solid red status LED indicates an internal power supply fault, an out-of-spec output DC voltage rail, or an internal thermal trip.

Q: What warranty coverage comes with this replacement module?

A: Every Emerson KJ1501X1-BB1 module supplied includes a full 12-month operational replacement warranty from our component testing facility.
