Description
Product Introduction & Engineering Value
The KJ3001X1-CB1 is intended for high-density digital output applications in Emerson DeltaV systems. Its 32 channels allow a single I/O card to control a substantial number of 24 VDC field loads, including solenoids, relays, and other discrete actuators. Emerson/DeltaV references identify it specifically as a high-side discrete-output module.
One procurement detail deserves attention: KJ3001X1-CB1 is associated with multiple terminal-base/card assembly references in the aftermarket, so the complete part number and terminal-base configuration should be checked against the installed hardware. A current listing identifies 12P1985X062 with the KJ3001X1-CB1.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| System | DeltaV DCS |
| Model | KJ3001X1-CB1 |
| Emerson Part Number | 12P1985X062 |
| I/O Type | Discrete Output |
| Number of Channels | 32 |
| Output Configuration | High-side switching |
| Nominal Field Voltage | 24 VDC |
| Field Circuit Rating | 100 mA/channel |
| Bussed Field Power | 24 VDC, 3.2 A/card |
| LocalBus Power | 12 VDC, 150 mA |
| Operating Temperature | 0 to 60°C |
| Humidity | 5–95% RH, non-condensing |
| Ingress Protection | IP20 |
| Key Position | B4 |
| Typical Application | DeltaV industrial process-control I/O |
The 24 VDC/100 mA-per-channel and 24 VDC/3.2 A-per-card figures are reported consistently in several industrial references. One listing also identifies the B4 key position, which is useful when checking mechanical compatibility.
Important Signal-Type Correction
There is conflicting information in some online listings, including pages that incorrectly describe the KJ3001X1-CB1 as a digital input module or associate it with 4–20 mA signaling. Those descriptions conflict with the stronger product-specific references identifying the device as a 32-channel 24 VDC high-side discrete-output card.
For engineering and procurement purposes, the safer identification is:
KJ3001X1-CB1 = 32-channel discrete output, 24 VDC, high-side.

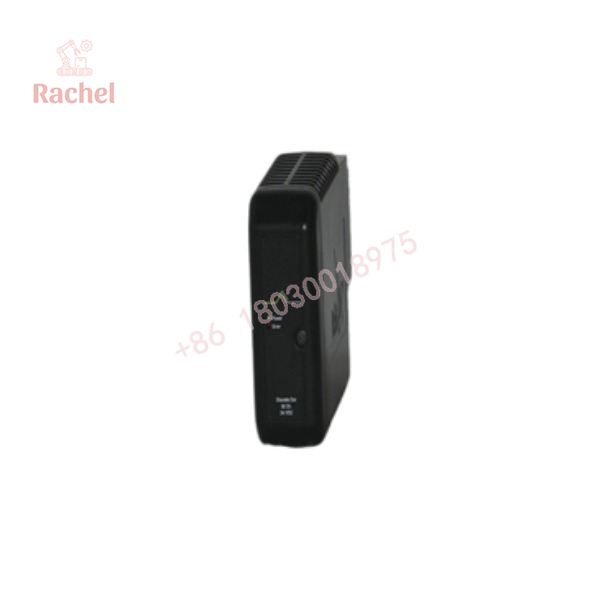

KJ3001X1-CB1

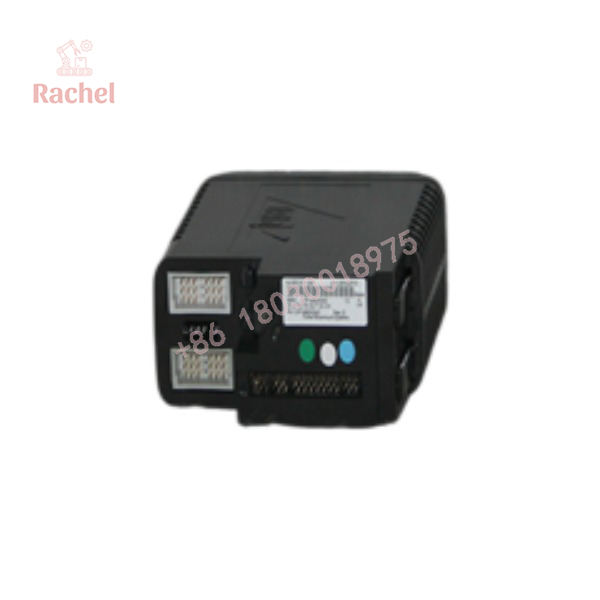

KJ3001X1-CB1
Field Application & the “Trench” Experience
A failed DO card in a process plant can produce a particularly confusing fault. The DeltaV controller may remain online, the I/O node may communicate normally, and the operator graphics may look healthy. Yet a group of field actuators stops responding.
Suppose eight solenoid valves connected to one KJ3001X1-CB1 suddenly show no actuation. Replacing individual solenoids would be a poor first move. The maintenance engineer should verify the common field supply, card diagnostics, channel status, terminal base, and output switching before condemning the field devices.
This is where a 32-channel high-side DO card earns its keep.
Typical applications include:
- Solenoid-valve control in process skids
- Motor starter and interposing-relay commands
- Pneumatic actuator control
- Process-isolation valve commands
- Alarm horn and annunciator control
The card’s 24 VDC high-side output architecture is specifically intended for this class of discrete field control.
Transparency SOP: QA & Testing
For New Surplus or Refurbished KJ3001X1-CB1 stock, I would use a staged acceptance procedure.
Step 1 — Identity
Verify:
12P1985X062- Revision letter
- DeltaV compatibility
- Keying arrangement
Step 2 — Visual inspection
Inspect the PCB and housing for:
- Oxidation
- Heat discoloration
- Damaged connectors
- Cracked solder joints
- Contamination
- Evidence of previous repair
Step 3 — Electrical test
Verify the card’s power requirements and output circuitry using an appropriate DeltaV test setup. Do not simply apply arbitrary voltage to the field terminals.
Step 4 — Channel test
Exercise representative output channels and verify:
- Output ON/OFF operation
- 24 VDC switching
- Channel isolation/behavior
- Output current under representative load
- Diagnostic response
Step 5 — System test
Where possible, test the card in a compatible DeltaV I/O carrier and verify card recognition, channel status, and field output behavior.
A 32-channel DO card should be tested across multiple channels, not just Channel 1.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying a DI card by mistake.
This model is frequently misidentified on secondary-market pages as a digital-input module. The product-specific references identify KJ3001X1-CB1 as a 32-channel DO card.
PRO TIP: Your purchase description should explicitly say:
Emerson DeltaV KJ3001X1-CB1, 12P1985X062, 32-channel, 24 VDC high-side discrete output.
That removes most ambiguity.
⚠️ Trap #2 — Ignoring the terminal-base assembly.
The card operates within the DeltaV I/O infrastructure. Some references associate the module with specific terminal-base assemblies and keying arrangements. Verify the installed carrier/base before ordering a substitute.
⚠️ Trap #3 — Overlooking total field-power loading.
The card is specified for 100 mA per channel, but the bussed field-power rating is listed as 3.2 A per card. You cannot assume that 32 channels operating at 100 mA simultaneously means a 3.2 A load is automatically appropriate for every installation condition. Check the actual field-load distribution and power architecture.
⚠️ Trap #4 — Assuming all revisions are identical.
Legacy DeltaV spare cards can have revision differences. Record the revision from the installed module before placing the order.
Dynamic FAQ
What is Emerson KJ3001X1-CB1?
It is an Emerson DeltaV 32-channel discrete-output module designed for 24 VDC high-side switching of industrial field devices.
What is the Emerson part number?
The commonly associated part number is 12P1985X062.
Is KJ3001X1-CB1 a digital input or output card?
It is a digital/discrete output card. Several secondary listings incorrectly classify it as an input card, so procurement descriptions should explicitly state 32-channel DO, 24 VDC high-side.
How many channels does it have?
The KJ3001X1-CB1 provides 32 discrete output channels.
What is the output rating?
The published product information identifies 24 VDC, 100 mA per field circuit/channel, with 24 VDC, 3.2 A per card for the bussed field supply.
Is KJ3001X1-CB1 discontinued?
Yes. Current industrial spare-parts references identify the model as discontinued by the manufacturer, making verified surplus and refurbished inventory relevant for legacy DeltaV installations.
Is New Surplus KJ3001X1-CB1 acceptable?
Yes, provided the card is genuine, correctly identified, properly stored, and electrically tested. For a critical DeltaV system, request evidence of multi-channel functional testing rather than accepting a simple visual inspection.
What warranty should I request?
For New Surplus or refurbished stock, request written coverage for DeltaV card recognition, 24 VDC output operation, multiple-channel switching, diagnostic behavior, connector integrity, and sustained operation under representative field loading.
