Product Introduction
The Emerson / Westinghouse 1B30035H01 is a foundational 2-slot standard I/O base assembly designed for the Ovation Distributed Control System (DCS). Functioning as the physical and electrical mounting pad for Ovation electronic I/O cards, it provides passive signal routing between field field instruments, power distribution rails, and the controller backplane bus.
Constructed from flame-retardant industrial composite housing, the 1B30035H01 features dual card slots alongside integrated, labeled field wiring screw terminals. Its modular base design allows field technicians to perform hot-swapping of active Ovation I/O cards without disconnecting or disturbing field instrument wiring harnesses.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1B30035H01 |
| Slot Capacity | 2-Slot Standard I/O Module Capacity |
| Wiring Connection | Integrated multi-tier screw terminal blocks |
| Bus Interface | Internal Ovation local I/O backplane interconnect |
| Mounting Options | Standard DIN Rail Mount or Direct Cabinet Panel Mounting |
| Hot-Swap Support | Supports live insertion/removal of electronic I/O cards |
Application Scenarios & The “Trench” Experience
During scheduled turbine control maintenance at a power generation facility, a field wire short damages the local terminal pin track on an existing I/O base. Replacing the worn base with a pre-inspected 1B30035H01 2-slot assembly allows technicians to quickly reconnect field sensor pairs while keeping adjacent Ovation I/O modules online, minimizing system downtime.
- Power Generation & Utilities: Routes critical boiler, turbine, and auxiliary sensor signals to Ovation control loops.
- Water & Wastewater Treatment: Houses discrete and analog I/O modules for pump sequencing and chemical dosing controls.
- Petrochemical Processing: Manages hazardous area sensor lines via isolated Ovation I/O card combinations.
- Continuous Industrial Process Control: Serves as standard I/O rack infrastructure across manufacturing plant DCS cabinets.

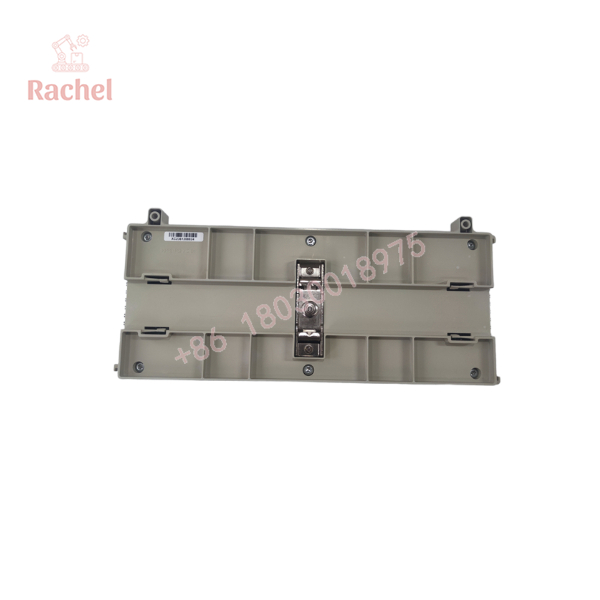

1B30035H01

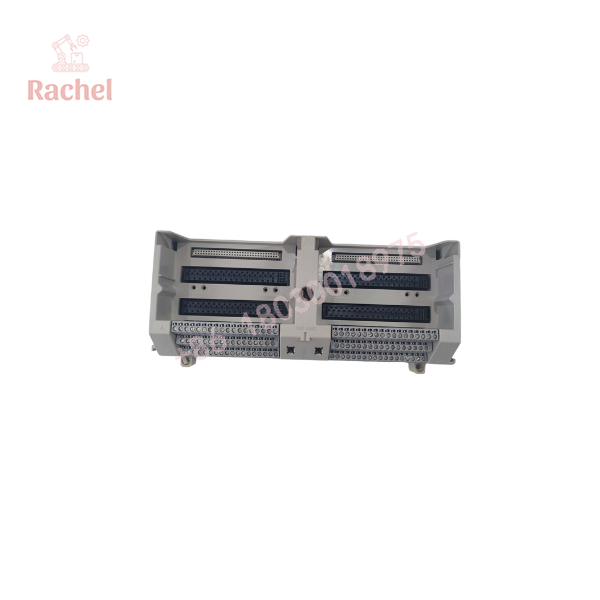

1B30035H01
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Audit: Inspect plastic housing for cracks, inspect backplane connector pins for bending or corrosion, and verify all terminal screws tighten smoothly.
- Backplane Continuity Test: Run pin-to-pin resistance checks across internal bus tracks to ensure zero open circuits or high-resistance paths.
- Module Insertion Verification: Test-fit functional Ovation I/O electronics cards into both slots to confirm smooth guide rail sliding and positive card latching.
- Terminal Insulation Check: Conduct insulation resistance checks across adjacent field wiring terminals to verify zero channel-to-channel short circuits.
- ESD Protection & Packaging: Enclose unit in anti-static shielding film, surround with shock-absorbing foam inserts, and box in a rigid shipping container.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Inspect Connector Pins Before Seating Modules: Always visually check the gold backplane pins on the 1B30035H01 before snapping in expensive Ovation I/O cards; a bent base pin can short internal logic power rails.
- ❗ Verify Terminal Block Torque: Tighten field wiring screws to recommended torque limits. Over-tightening strips internal brass threads, while loose connections lead to intermittent analog signal drift.
- ⚠️ Observe Backplane Keying Guides: Ensure optional mechanical keying pegs match the designated module type assigned to each slot to prevent installing the wrong card model.
Frequently Asked Questions (FAQ)
Q: Does the 1B30035H01 base assembly contain active electronic processing chips?
A: No. The 1B30035H01 is a passive termination and bus-routing base; active signal conditioning and processing are handled by the plugged-in Ovation I/O modules.
Q: Can I replace an active I/O module on this base while the system is under power?
A: Yes, Ovation I/O electronics modules installed on the 1B30035H01 base are designed for hot-swapping under powered system conditions.
Q: Are the terminal blocks removable on the 1B30035H01 assembly?
A: Depending on the specific sub-revision build, the terminal blocks are integrated directly into the base structure to provide reliable, low-resistance connections.
Q: What warranty applies to this surplus Emerson component?
A: All clean surplus and bench-tested Emerson 1B30035H01 base assemblies include a full 12-month replacement warranty from the delivery date.
