Description
Product Introduction
The Emerson / Westinghouse 1C31122G01 is a 16-channel digital output (DO) electronics module designed for the Ovation Distributed Control System (DCS). Functioning as an executive field driver within the Ovation I/O subsystem, it receives discrete binary control instructions (0 or 1) from the controller and safely switches external direct current loads ranging from 5 to 60 V DC.
Designed for high-availability process control environments, the 1C31122G01 provides robust galvanic isolation between field circuitry and the internal Ovation backplane bus. It features individual front-panel LED indicators for output channel activity and fault diagnostics, allowing field technicians to monitor solenoid, relay, and interlock states across power generation, water treatment, and continuous industrial process operations.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31122G01 (EMOD ASSY) |
| Channel Count | 16 discrete digital output channels |
| Operating Voltage Range | 5 V DC to 60 V DC |
| Output Type | Transistor solid-state switching (Sinking/Sourcing) |
| Isolation | Channel-to-bus galvanic optical isolation |
| Diagnostics | Channel status & fault LEDs on front module faceplate |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Hot-Swap Capability | Supported in online Ovation I/O bases |
Application Scenarios & The “Trench” Experience
During a turbine trip sequence at a combined-cycle power plant, an output driver stage on an older digital output card fails to energize a fuel shutoff solenoid valve. Diagnostic logs flag a channel open-circuit fault. Replacing the faulty card with a pre-tested Emerson 1C31122G01 module restores immediate control of the 24V DC auxiliary relays and fuel isolation valves, permitting safe system reset and re-ignition.
- Power Generation Facilities: Controls fuel gas isolation valves, turbine trip solenoids, and circuit breaker trip coils.
- Water & Wastewater Treatment: Drives interposing relays for high-capacity motor starters and chemical feed pumps.
- Petrochemical & Chemical Refining: Executes discrete interlock commands for pneumatic valve positioners and alarm enunciators.
- Industrial Process Automation: Operates heavy-duty contactors, status indicator panels, and emergency shutdown (ESD) circuits.

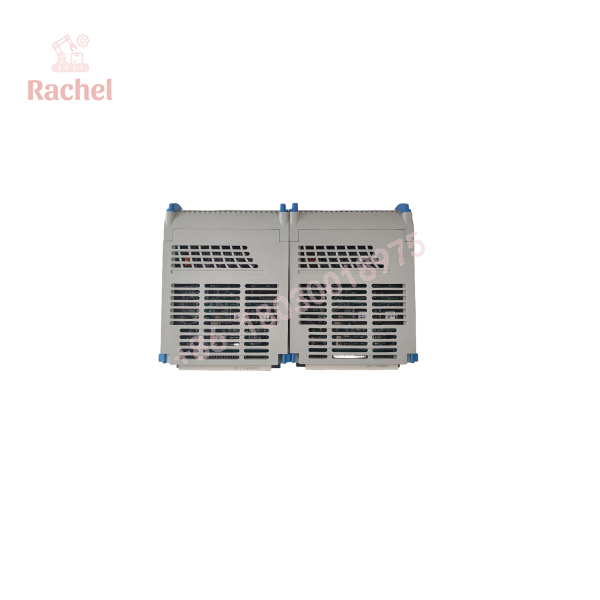

1C31122G01
1C31122G01
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Edge Inspection: Check edge connector contacts for pin corrosion, inspect PCB components for thermal discolouration, and confirm housing clip integrity.
- Benchtop Backplane & POST Test: Insert module into an Ovation test rig; apply 24V logic and verify clean power-on self-test (POST) status LEDs.
- Multi-Voltage Output Switching Sweep: Cycle all 16 channels across 12V DC, 24V DC, and 48V DC load banks; measure output voltage drop and confirm switching current limits.
- Isolation & Noise Immunity Check: Test optocoupler barrier breakdown between field terminals and internal logic circuitry under high-potential stress.
- ESD Protection & Packaging: Enclose unit in anti-static shielding bags, cushion with high-density foam inserts, and box in a reinforced shipping container.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Voltage Limits (5–60 V DC): Never connect AC loads directly to the 1C31122G01. For switching 120V AC solenoids or contactors, always run outputs through interposing relays.
- ❗ Install Flyback Diodes on Inductive Loads: When driving highly inductive loads like large solenoid coils, ensure external surge suppression (flyback/freewheeling diodes) is installed across field coils to prevent back-EMF spikes from burning out solid-state channels.
- ⚠️ Match Personality Module Keying: Ensure the underlying Ovation Personality Module (PMOD) on the base assembly matches the 1C31122G01 configuration to avoid hardware error codes upon insertion.
- ❗ Observe Correct Polarity: Reversing polarity on external DC field power supplies can damage internal channel protection diodes across the module.
Frequently Asked Questions (FAQ)
Q: Can the Emerson 1C31122G01 be hot-swapped while the DCS is powered?
A: Yes. Provided the Ovation I/O base supports live insertion, the 1C31122G01 module can be replaced online without shutting down adjacent I/O slots.
Q: What is the difference between an EMOD and a PMOD in an Ovation system?
A: The 1C31122G01 is an Electronics Module (EMOD) containing active processing and switching circuitry. The Personality Module (PMOD) sits on the base card and determines physical signal routing.
Q: How do I identify a channel failure on the module?
A: The front panel includes channel-specific LEDs. A channel that fails to illuminate when commanded ON, or an active red fault indicator, signals an output driver or field wiring issue.
Q: What warranty applies to this surplus module?
A: All clean surplus and bench-tested Emerson 1C31122G01 modules include a full 12-month replacement warranty from the delivery date.
