Emerson Ovation 1C31125G01 Digital Output Module

Description

Product Introduction & Engineering Value

A digital output failure can be misleading. The DCS processor may execute logic correctly, yet a valve, solenoid, contactor, or actuator does not respond because the signal path between the controller and field device has failed.

The Emerson Ovation 1C31125G01 is designed for discrete output interfacing within Ovation I/O systems. It works together with the 1C31122G01 Digital Output Electronics Module to provide 16-channel output control for field devices using direct 0–60 VDC switching applications.

Technical Specifications

The Ovation I/O reference manual lists 1C31125G01 as the personality module used for the digital output module interface to field terminal blocks. The digital output subsystem uses the 1C31122G01 electronics module with 1C31125G01 for 0–60 VDC single-ended direct applications.

Field Application & The “Trench” Experience”

A combined-cycle power plant experienced an unexpected shutdown of several auxiliary systems connected through an Emerson Ovation DCS. The operator commands appeared normal on the HMI, and the control logic executed correctly, but multiple field devices failed to respond.

Maintenance technicians traced the issue through the I/O chain and confirmed the controller and communication network were operating normally. The failure was isolated to the digital output interface assembly associated with the 1C31125G01 personality module.

After replacing the module, checking output channel operation, and confirming field wiring continuity, the affected equipment returned to normal operation without modifying the Ovation database.

Typical application scenarios include:

• Boiler Auxiliary Equipment Control — switching pumps, fans, dampers, and motor controls
• Turbine Balance-of-Plant Systems — controlling discrete valves and auxiliary devices
• Water Treatment Process Control — operating solenoid valves, contactors, and alarms

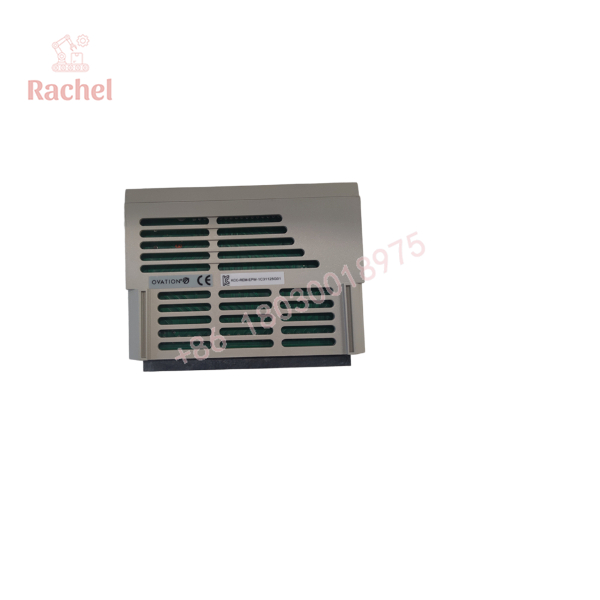

1C31125G01

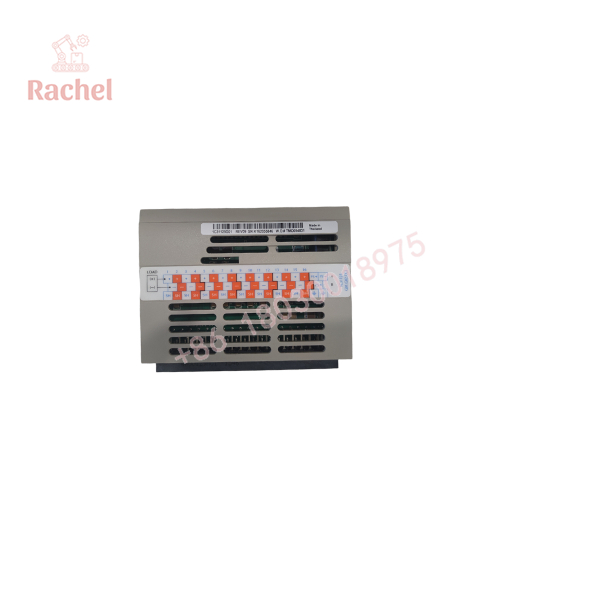

1C31125G01

Transparency SOP: QA & Testing

For Emerson Ovation 1C31125G01 new surplus or refurbished inventory:

Inspection and Validation Procedure

1. Part Verification
   • Confirm Emerson/Ovation labeling.
   • Verify exact model number: 1C31125G01.
   • Record hardware revision information.
2. Mechanical Inspection
   • Check terminal interfaces.
   • Inspect connector contacts.
   • Examine PCB condition.
   • Verify fuse holder condition.
3. Electrical Testing
   • Confirm output interface continuity.
   • Verify fuse protection circuit.
   • Test compatibility with 1C31122G01 electronics module.
   • Check channel switching behavior where test equipment is available.
4. Release Documentation
   • Record inspection results.
   • Apply ESD packaging.
   • Provide warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Do not replace 1C31125G01 without confirming the complete digital output assembly.

The Ovation digital output system separates the electronics module and personality module. A correct PMOD must match the installed EMOD and application wiring.

⚠️ Do not overlook external power configuration.

Ovation digital outputs may be configured for different power arrangements. Incorrect wiring can cause failed outputs or unexpected field behavior.

PRO TIP: Record these details before removal:

• Electronics module part number
• Personality module part number
• Field terminal wiring
• External power source arrangement

⚠️ Check field load requirements.

A failed output module may actually be the result of a damaged solenoid, shorted actuator coil, or incorrect load current.

Dynamic FAQ

Q1: What is the Emerson 1C31125G01 used for?
The 1C31125G01 is an Emerson Ovation Digital Output Personality Module used to interface digital output electronics with field wiring.

Q2: Is the 1C31125G01 a complete digital output card?
It is a personality module component. The digital output subsystem also uses the 1C31122G01 electronics module.

Q3: How many outputs does the 1C31125G01 support?
The Ovation digital output subsystem configuration supports 16 output channels.

Q4: What voltage range does the 1C31125G01 support?
The module is used for 0–60 VDC single-ended direct digital output applications when paired with the appropriate electronics module.

Q5: How are refurbished 1C31125G01 modules tested?
Testing should include part verification, connector inspection, fuse circuit checks, interface testing, and compatibility validation with the Ovation output assembly.

Q6: Is Emerson 1C31125G01 still manufactured?
The 1C31125G01 is considered a legacy Ovation DCS component. Availability generally depends on remaining inventory and industrial automation spare-part suppliers.

Q7: What information is needed to source a replacement 1C31125G01?
Provide the Ovation system version, associated electronics module number, I/O rack information, field voltage requirements, and current fault symptoms.
