Description
Product Introduction
The Emerson / Westinghouse 1C31166G02 is a Serial Link Controller electronics module engineered for the Ovation Distributed Control System (DCS). It functions as an essential communication interface, bridging the core Ovation process control network with standalone field devices, auxiliary PLCs, motor control centers (MCCs), and smart instrumentation over serial links.
Designed for seamless integration into standard Ovation I/O base assemblies, the 1C31166G02 offloads serial protocol parsing and data buffer management from the main controller CPU. It provides galvanic isolation to protect internal system logic from external ground loops and communication noise line spikes in harsh industrial power plant and manufacturing facility environments.
Key Technical Specifications
| Parameter | Value / Feature |
| Manufacturer | Emerson Process Management / Westinghouse |
| System Architecture | Ovation Distributed Control System (DCS) |
| Part Number | 1C31166G02 (EMOD ASSY) |
| Module Type | Serial Link Controller / Communication Module |
| Interface Protocols | RS-485 (2-wire / 4-wire), RS-232 serial channels |
| Isolation | Channel-to-bus galvanic optical isolation |
| Diagnostics | Front-panel LEDs for Power, Module Fault, Tx/Rx activity |
| Host Controller Support | Compatible with standard Ovation controller drop architecture |
| Base Compatibility | Standard Ovation I/O Base Assemblies (e.g., 1B30035H01) |
| Hot-Swap Support | Supported in online Ovation I/O base racks |
Application Scenarios & The “Trench” Experience
During operations at a gas turbine power plant, a third-party vibration monitoring rack loses Modbus serial connectivity to the Ovation DCS, dropping real-time telemetry on operator workstations. Troubleshooting shows a blown transceiver chip on the serial card following a lightning strike near the external wire run. Installing a pre-tested 1C31166G02 serial link module restores serial polling and clears communication timeout alarms on the operator graphics without stopping the turbine.
- Third-Party PLC Integration: Connects packaged skid controllers (Allen-Bradley, Siemens, Modicon) to the primary Ovation DCS.
- Variable Frequency Drives (VFDs): Feeds speed reference commands and reads diagnostic parameters directly from serial-enabled motor drives.
- Smart Power & Utility Metering: Polls digital power meters, relays, and gas chromatographs over serial networks.
- Vibration & Machinery Monitoring: Integrates specialized protection system racks (e.g., Bently Nevada) via serial data streams.
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Inspection: Check edge connector pins for damage, inspect PCB traces for thermal degradation, and verify retention latch integrity.
- Backplane POST & Boot Verification: Seat module in an Ovation test rack; verify successful initialization and green power/status LED illumination.
- Serial Loopback & Transceiver Testing: Execute transmit/receive data loopback tests across all supported baud rates to verify zero byte drop or parity errors.
- Noise & High-Potential Isolation Test: Validate optocoupler barrier integrity between serial line connections and internal logic circuitry.
- ESD Protection & Packaging: Wrap inside anti-static shielding bags, surround with high-density foam padding, and box in a heavy-duty export carton.

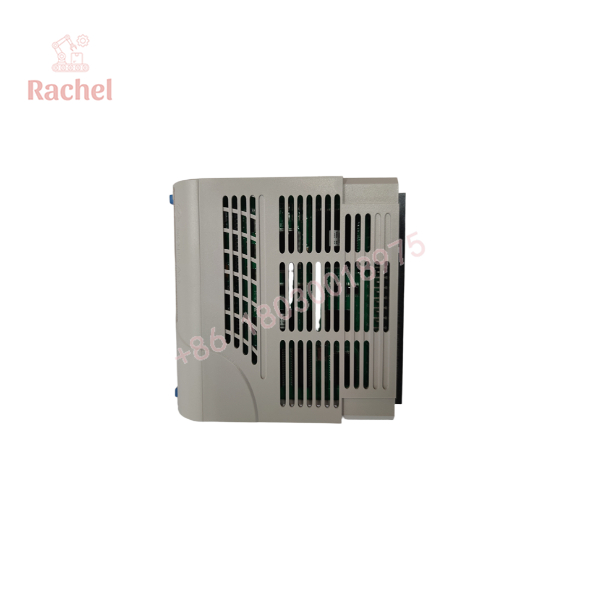

1C31166G02

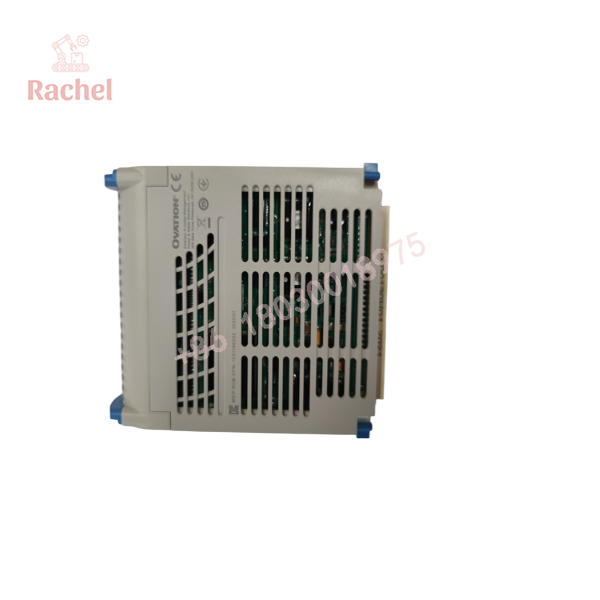

1C31166G02
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Termination Resistors: For long RS-485 serial runs, ensure proper 120-ohm bus termination resistors are enabled at physical line endpoints to prevent signal reflection errors.
- ❗ Match PMOD Serial Keying: The 1C31166G02 must be paired with the correct Serial Personality Module (PMOD) on the base plate to correctly route serial signals (RS-232 vs. RS-485).
- ⚠️ Check Baud Rate & Parity Configurations: Communication timeouts are frequently caused by mismatched serial settings (baud rate, data bits, stop bits, parity) between Ovation software configuration and third-party devices.
- ❗ Ensure Ground Shielding Continuity: Cable shields on long serial runs should be grounded at one end only (preferably at the DCS panel ground bar) to avoid inducing ground loop currents across serial transceivers.
Frequently Asked Questions (FAQ)
Q: Does the 1C31166G02 module handle protocol conversion automatically?
A: The module handles the physical layer interface and serial timing buffer; specific protocol parsing (such as Modbus RTU) is configured within the Ovation control software software drop.
Q: Can this serial module be hot-swapped while the DCS is online?
A: Yes. When installed in standard Ovation I/O base assemblies, the 1C31166G02 can be swapped online without shutting down adjacent I/O slots.
Q: What do the Tx and Rx LEDs on the front panel signify?
A: Tx (Transmit) flashes green when the module sends data requests to serial field devices; Rx (Receive) flashes amber/green when receiving valid responses.
Q: What warranty applies to this surplus Emerson card?
A: All clean surplus and bench-tested Emerson 1C31166G02 serial link modules carry a full 12-month replacement warranty from the delivery date.
