Emerson Ovation 1C31179G01 Media Attachment Unit Module

Product Introduction & Engineering Value

Long cable distances inside large industrial facilities create communication challenges. Remote I/O cabinets may be hundreds or thousands of feet away from the main controller room, requiring a reliable communication path that can tolerate industrial environments.

The Emerson Ovation 1C31179G01 provides the electronic processing section of the Media Attachment Unit, handling communication between the Ovation Process Control Reference Rack (PCRR) and remote I/O fiber networks. It is paired with 1C31181 series Personality Modules that define the optical interface type and link distance.

Technical Specifications

The Ovation I/O Reference Manual identifies 1C31179G01 as the MAU Electronics Module. In the MAU subsystem, this electronics module is paired with 1C31181 series Personality Modules for fiber optic remote I/O communication.

Field Application & The “Trench” Experience”

A large generating station expanded its turbine auxiliary control area by adding a remote I/O cabinet several hundred meters away from the main Ovation control room. After commissioning, operators noticed intermittent loss of remote I/O communication alarms.

The engineering team first checked fiber continuity, optical power levels, and remote node controller status. The fiber links tested correctly, but the MAU diagnostics indicated unstable communication handling inside the controller-side attachment unit.

The failed assembly was traced to the 1C31179G01 Media Attachment Unit Electronics Module. After replacing the module and verifying the matching optical Personality Module configuration, the remote I/O network returned to normal operation.

The repair avoided replacing remote I/O cabinets or disturbing field wiring.

Typical application scenarios include:

• Boiler Remote I/O Networks — extending DCS control into distributed plant areas
• Turbine Auxiliary Systems — connecting remote valve, sensor, and actuator cabinets
• Power Plant Balance-of-Plant Controls — reducing long copper signal runs through fiber communication

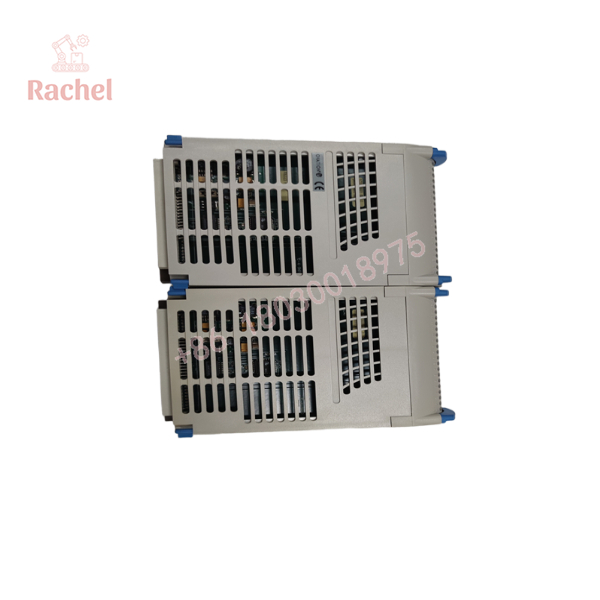

1C31179G01

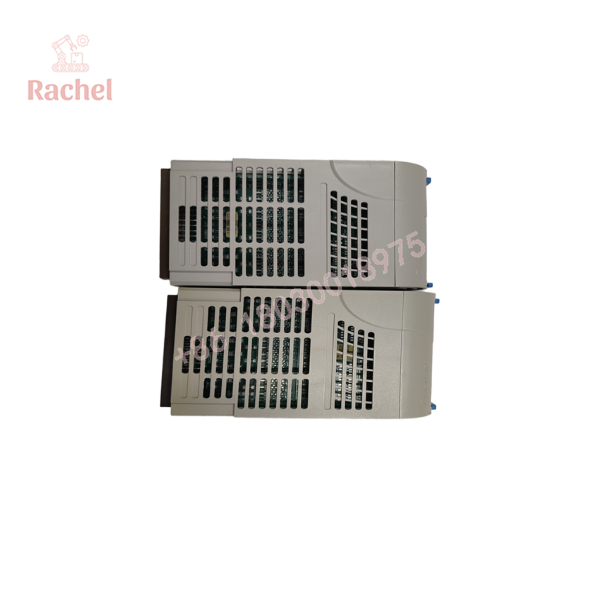

1C31179G01

Transparency SOP: QA & Testing

For Emerson Ovation 1C31179G01 new surplus or refurbished inventory:

Quality Control Procedure

1. Identification Verification
   • Confirm Emerson/Ovation labeling.
   • Verify exact part number: 1C31179G01.
   • Record hardware revision.
2. Physical Inspection
   • Inspect PCB condition.
   • Check backplane connector contacts.
   • Examine LED indicators.
   • Verify mounting brackets and housing condition.
3. Functional Testing
   • Confirm module power-up behavior.
   • Verify Ovation rack recognition.
   • Check MAU communication functions.
   • Test compatibility with 1C31181 series Personality Modules.
   • Verify fiber communication interface operation when test equipment is available.
4. Final Release
   • Document inspection results.
   • Package with ESD protection.
   • Provide warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Do not replace the EMOD without checking the optical Personality Module.

The 1C31179G01 does not define the fiber interface by itself. The installed 1C31181 PMOD determines optical wavelength and link characteristics.

⚠️ Mixing optical configurations can create communication failures.

Common mistakes include combining incompatible fiber types:

• 850 nm optics with 1300 nm remote nodes
• Incorrect link distance assumptions
• Wrong Personality Module revision

PRO TIP: Record the complete MAU assembly before replacement:

• EMOD part number
• PMOD part number
• Fiber wavelength
• Remote node type
• Optical cable length

⚠️ Do not immediately blame the fiber cable.

A failing MAU electronics module can produce symptoms similar to dirty connectors, weak optical power, or damaged fiber.

Dynamic FAQ

Q1: What is the Emerson 1C31179G01 used for?
The 1C31179G01 is an Ovation Media Attachment Unit Electronics Module used for remote I/O communication between the main Ovation controller system and remote I/O nodes.

Q2: Is the 1C31179G01 a complete fiber communication module?
No. It is the electronics portion of the MAU. A compatible 1C31181 series Personality Module is required to provide the optical interface.

Q3: What is the difference between 1C31179G01 and 1C31179G02?
The G01 version is associated with a 2-channel MAU configuration, while 1C31179G02 supports a 4-channel MAU configuration.

Q4: What fiber distances can the 1C31179G01 support?
With compatible Personality Modules, the MAU configuration can support links up to approximately 2 km using 850 nm optics or longer links using 1300 nm configurations.

Q5: How are refurbished 1C31179G01 modules tested?
Testing should include hardware inspection, power-up verification, Ovation rack recognition, MAU communication checks, and compatibility testing with the installed PMOD.

Q6: Is Emerson 1C31179G01 still manufactured?
The module is considered a legacy Ovation DCS component. Availability generally depends on existing inventory, repair programs, and industrial automation spare suppliers.

Q7: What information is needed when sourcing a replacement 1C31179G01?
Provide the Ovation system version, MAU configuration, installed Personality Module number, fiber wavelength, remote node type, and current communication fault symptoms.
